72 Inch Agriculture Field Wire Fence , Strong Fixed Knot Field Fence
This fixed knot fence is made of high tensile steel that is stronger and lighter than other types of agriculture fence because of its high carbon content. The woven wire is comprised of vertical strands of wire and line wires that are locked together to prevent shifting and sagging with a strong fixed knot.
The sturdiness of this fence reduces the number of posts required to hold the fence firm and straight. We offer t-posts and galvanized ss20 posts that will support this Fixed Knot fence. Only one post needs to be placed every 20 feet on your fence line. You could also outsource wooden posts (5-6 inches in diameter).
We also offers strong and durable 8'corners/ends to provide an extra layer of stability to your fixed knot fencing system.
Field Fence Dimensions:
Material: Heavy galvanized mild steel carbon wire with extremely high tensile strength, a green PVC coated finish or other treatment also offered.
Horizontal wires: 2.50 mm, Tensile strength: 1200–1400 N/mm2
Vertical wires: 2.50 mm, Tensile strength: 820–970 N/mm2
Node wires: 2.24 mm, Tensile strength: 400–550 N/mm2
Zinc coating: 230–350 g/m2.
Field Fence Advantage:
Strong. The fixed knot structure with strong wire can withstand strong impacts.
Flexibility. The flexibility wires makes it to strong impacts, the mesh can return to its original position and maintaining its tension.
Long life. The triple galvanized provides high corrosion resistance, high durability and long life even in adverse conditions.
Easy install. Due to its high stiffness, it allows the posts every 7 meters, offering extraordinary savings in both material and installation time.
Wide range of applications. For wild cattle fences, horses fencing, big game hunting grounds, perimeter fencing, plantations fence, hunting fencing.
Galvanized standard. A high-wire base triple galvanized resistance.
Galfan galvanized Composition = 95% Zinc + 5% Aluminium.
Field Fence Applicatione:
Fixed knot fence with solid lock construction is mainly used as field fencing to protect cattle such as deer, horse, cow, sheep and goats, and also used as grassland fence and farm fencing. It is also called game fencing.A roll of zinc coating fixed knot fence
This extra strong field fences are ideal for keeping wildlife living deer and other animals away from forest crops and garden plants.
Technical Parameters of Field Fence
● Material: Hot-dip galvanised wire, zinc-aluminium alloy wire
● Top and bottom wire diameter: 2.0mm - 3.7mm
● Intermediate horizontal wire diameter:1.6mm - 3.0mm
● Vertical wire diameter: 1.6mm - 3.0mm
● Field Fence Height: 90cm - 200cm
Table 1: Common Specifications of Fixed Knot Deer Fence
| Types |
Fence Height |
Horizontal Wires |
Spacing of Vertical Wires |
Where Used |
Reason |
| EZFK17/75/6 |
75" |
17 |
6" |
Internal fence for smaller deer species |
Lower fences with 6" spacing save on materials costs – deciding factor is jump height of the species in question |
| EZFK20/96/3 |
96" |
20 |
3" |
Breeding & fawn pens, high pressure areas |
Tighter 3" spacing for greater strength & smaller animal control |
| EZFK20/96/6 |
96" |
20 |
6" |
Boundary fence, medium-to-high pressure |
Strong, cost-saving 6" spacing |
| EZFK20/96/12 |
96" |
20 |
12" |
Boundary fence, deer exclusion, low pressure areas |
12" spacing for economy |
| EZFK23/120/3 |
120" |
23 |
3" |
Breeding & fawn pens, high pressure areas |
Strongest with 3" spacing |
| EZFK23/120/6 |
120" |
23 |
6" |
Boundary fence, medium to high pressure |
Strong, cost-saving 6" spacing |
| EZFK23/120/12 |
120" |
23 |
12" |
Boundary fence, deer exclusion, low pressure areas |
12" spacing for economy |
Field Fence Types
Type3: Fixed knot (Cross Lock knot)

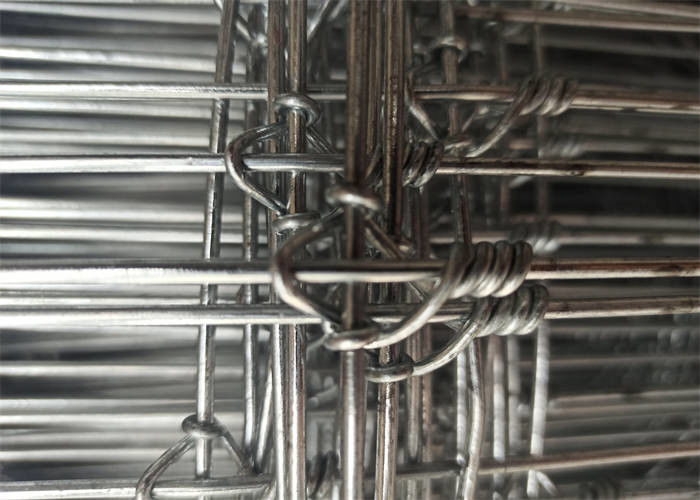

Fixed Knot (Cross Lock Knot) field fence has a unique construction, using a single metal wire to form a strong knot to hold the horizontal and vertical wires together. The fence is extremely strong and can be installed quickly with fewer posts. Reduces installation and maintenance costs.
FAQ
1. Who are we?
We are based in Hebei, China, start from 2009, selling to Southeast Asia(15.00%),Oceania(15.00%),South America(12.00%),Eastern Europe(10.00%),Domestic Market(10.00%),Mid East(8.00%),Africa(6.00%),Western Europe(6.00%),North America(5.00%),Eastern Asia(3.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(2.00%),South Asia(2.00%).
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
All kinds of wire mesh and related products, such as wire mesh fence, barbed wire, razor wire, gabion box, chain link fence, steel grating, temporary fence, expanded metal sheet, stainless steel wire mesh, window screen and so on.
4. Why should you buy from us not from other suppliers?
We are specialized in fence and wire mesh field since 2009. We can supply the most suitable and best solutions. Qualified products and professional service is our main purpose.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Japanese, Korean, France
