High Tensile Field Wire Fence

Large Image : High Tensile Field Wire Fence

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0001

Payment & Shipping Terms:

Minimum Order Quantity:	50Rolls
Price:	Negotiable
Packaging Details:	In pallet or bulk
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000Rolls/week

Contact Now

Detailed Product Description

Product Name:	Field Fence	Name:	Square Deal Knot Field Fence
Type:	Fencing,field Fence	Feature:	Easily Assembled
Frame Finishing:	Galvanized	Material:	High Strength Galvanized Steel Wire
Application:	Agriculture Field	Surface Treatment:	Hot Dipped Galvanzied
Length:	50m Or As Your Request	Height:	0.5-2..5m
Color:	Silver	Usage:	Sheep
Wire Gauge:	1.8mm-2.5mm
Highlight:	High Tensile Field Wire Fence , Field Wire Fence No Climb , High Tensile No Climb Horse Fence

High Tensile Field Wire Fence

2″ x 4″ Horse Fence provides a safer environment for your horse. And it’s easy and economical to install with wood or steel posts. Max-Tight is deigned to prevent snags that cause blemishes to a horse’s coat. The wire knot construction provides a wire mesh that’s completely smooth on both sides as well as the top. The close 2″ x 4″ spaces helps prevent horses feet from stepping through and becoming caught or injured. The vertical wires are “Stiff Stay” being on continuous straight length from top to bottom. This helps the fence resist being pushed down.

Max-Tight Class 1 Galvanized 100′ Rolls
Height 36″ 48″ 60″ 72″	Mesh 2″x4″ 2″x4″ 2″x4″ 2″x4″	Gauge 12½ 12½ 12½ 12½	Weight 94 122 151 179

Square Deal Knot Field Fence Advantage

1. High tensile strenth steel wire

2. Anti-rust for more than 20 years guarantee.

3. S-knot fence protects animal's skin and coat

4. 2"x4" and 4"x4" openings reduce risk to sheep/goats

Square Deal Knot Field Fence Application

1. Smaller openings at the bottom designed to prevent small animal entry.

2. Good choice as a residential fence system.

3. Non-climb Horse Fence

Technical Parameters of Square Deal Knot Field Fence

Part No.	Vertical Spacing	Horizontal Spacing	Height	Roll Length	Edge Wire Dia.	Filler Wire Dia.
1036-2	2"	4"	36"	100'	3.40mm	2.50mm
1140-2	2"	4"	40"	100'	3.40mm	2.50mm
1244-2	2"	4"	44"	100'	3.40mm	2.50mm
1348-2	2"	4"	48"	100'	3.40mm	2.50mm
1660-2	2"	4"	60"	100'	3.40mm	2.50mm
1036-4	4"	4"	36"	100'	3.40mm	2.50mm
1140-4	4"	4"	40"	100'	3.40mm	2.50mm
1244-4	4"	4"	44"	100'	3.40mm	2.50mm
1348-4	4"	4"	48"	100'	3.40mm	2.50mm
1660-4	4"	4"	60"	100'	3.40mm	2.50mm

Field Fence Types

S knot (Square Deal Knot)

S knot (Square Deal Knot) fencing has S-shaped knots that are made by fixing a single wire to the intersection of two wires, horizontal and vertical, to strengthen the intersection. This type of filed fence can withstand the impact of large animals, suitable for cattle and sheep farming.

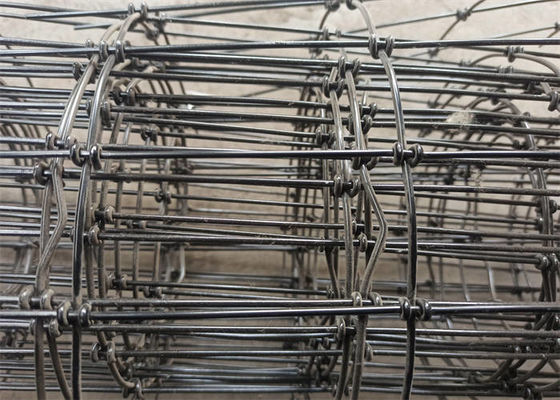

High Tensile Field Wire Fence 1

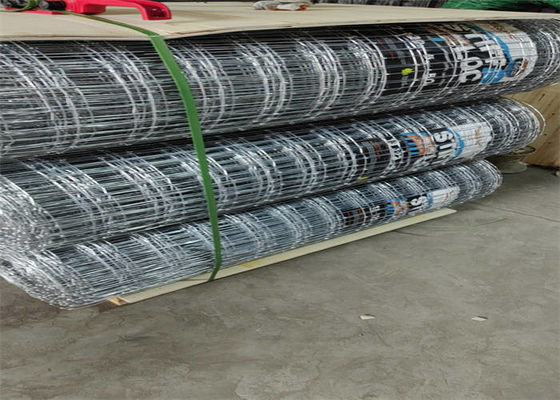

High Tensile Field Wire Fence 2

FAQ

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?

A2. We use our many years of experience to ensure that we provide our customers with the best quality. We are also continuously improving quality control system.

Q3. The logo and the color can be customized?

A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?

A4. We take the most care in our products and service with integrity and honesty. When you need help, we are always standby your side, with trinity, you will get corporate-level expertise coupled with excellent service.
