High Security Wire Mesh Fencing

High Security Wire Mesh Fencing

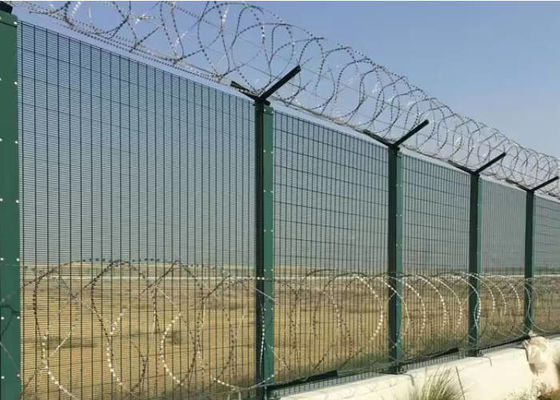

Welded razor wire fence is a type of high security wire mesh fence panel to be used in prison, military sites, airport and other places, which needs to prevent intruders in. It is combined with welded wire mesh fence panels and razor wires.

Welded wire mesh fence
Welded wire mesh fence is one of the most widely used type among all the security fences. It has curvy types, anti-climbing types, BRC types and others. Manufactured from low carbon steels and then welded and surface treated with galvanized or PVC coated to improve the corrosion and rust resistance performance. Welded wire mesh is widely used combined with razor wire to improve the security factor.

Curvy welded wire mesh fence

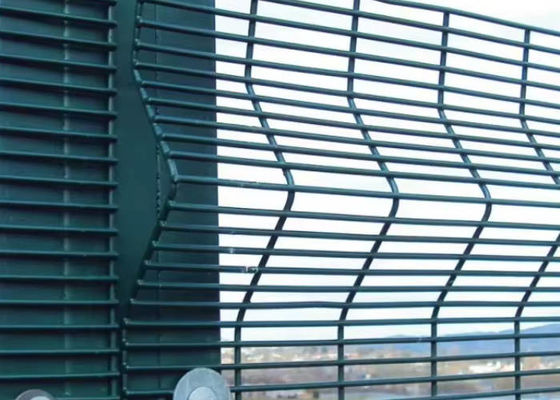

Curvy welded wire mesh fence, also called 3D security fence, curved welded wire mesh fence. It has two to four curves on the body of the wire mesh fence panel according to different fence height.

Specifications of curvy welded wire mesh fence

Material: low carbon steel wire or galvanized wire.
Wire diameter: 3 mm to 8 mm.
Mesh size: 50 mm × 100 mm, 50 mm× 150 mm, 50 mm ×200 mm, 75 mm × 150 mm, 75 mm × 200 mm.
Panel height: 0.63 m to 2.43 m. Specially is 3.5 m to 4 m.
Panel length: 2 m to 3 m.
Curve quantity: 2, 3 or 4.
Post type: peach post, square post, rectangular post and round post.
Surface treatment: hot dipped galvanized, PVC coated, powder coating.
Razor wire type: flat warp razor wire or concertina cross razor wire.

Anti-climb fence

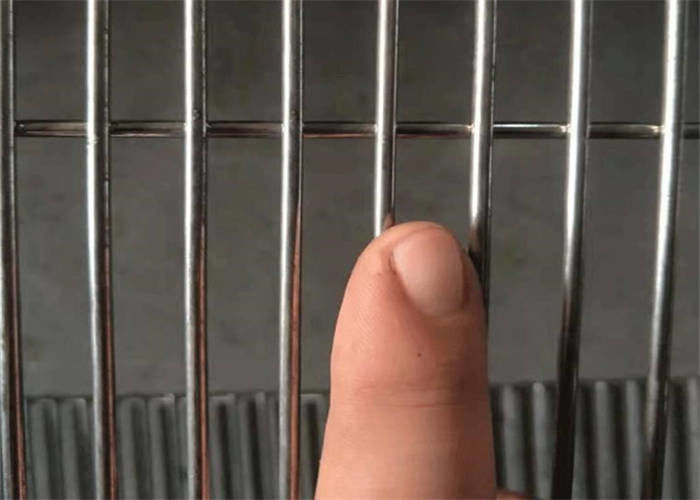

Anti-climb fence, also known as 358 mesh fence, it is an efficient security barrier fence to be used in high security requirements places. Compared with traditional welded wire mesh fence, the anti-climbing fence has smaller mesh sizes, which can prevent intruders from climbing up with fingers and toes. Additional, the thicker wires and conventional bots can prevent any tools from breaking the fence.

Specifications of anti-climb fence

Material: low carbon steel.
Surface treatment: hot dipped galvanized after welding and PVC coated after welding.
Wire diameter: 4 mm.
Mesh size:
358 mesh fence: 76.2 mm × 12.7 mm.
Anti-climb fence: 70 mm × 8 mm.
Fence width: 2515 mm.
Fence height: 2.0 m to 5.2 m.
Post section: 60 mm × 60 mm, 80 mm × 80 mm, 100 mm × 100 mm, 120 mm × 120 mm.
Post plate thickness: 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm.
Colors: green or black. Special colors can be customized.

Applications

military base, prisons, industrial and commercial sites, airports, railway station, government buildings, school sports field, public parks and utilities, recreation and leisure areas, other high security sites and so on.
