Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Features: | High Strength, Corrosion Resistance, Easy To Install | Name: | Collapsible Wire Mesh Containers |
|---|---|---|---|
| Key Words: | Wire Cloth Fabrication | Application: | Storage, Security And Shopping |
| Place Of Origin: | China | Surface Treatment: | Electro Galvanized |
| Material: | Steel | Wire Diameter: | 3 Mm |
| Weaving Type: | Welded | Hole Shape: | Square |
| Width: | 0.5 Meter | Aperture: | 1.2 Mm |
| Mesh Size: | 50mm | Feet Height: | 1000mm |
| Highlight: | Metal Welded Wire Containers,Stackable Welded Wire Containers,Collapsible Wire Mesh Containers |
||

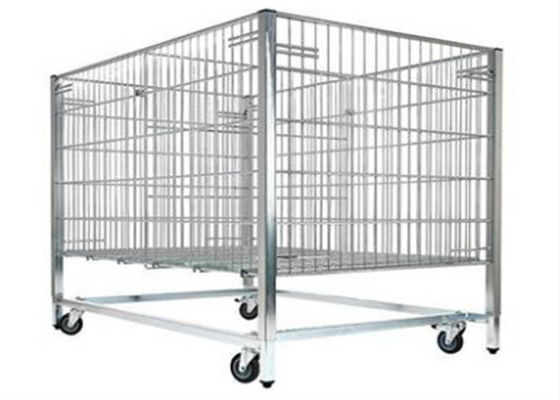

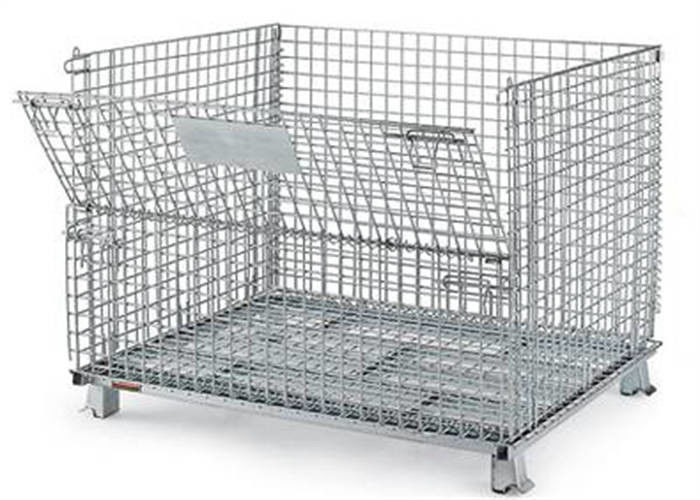

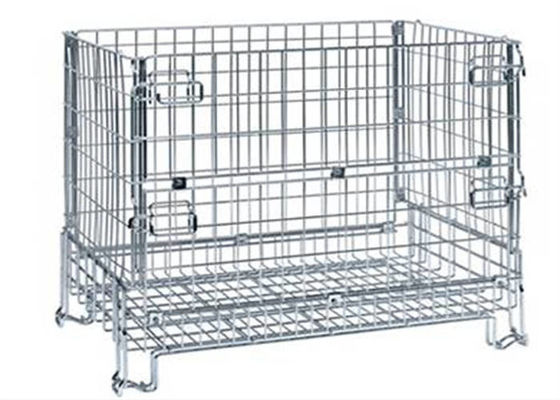

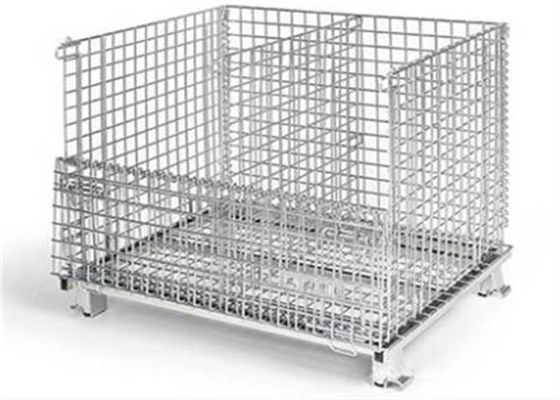

Metal Stackable Collapsible Wire Mesh Container
Welded wire containers are widely used for general warehouse use, storage, security and shopping. The wire mesh containers are light and strong, they are made with galvanized welded wire or PVC coated welded wire (with various colors). Welded wire mesh containers have the types: with wheel, folding, double layer and more. And we can supply the containers as the special need.
Welded wire containers features:
High visibility, self cleaning, stackable, collapsible, 4" under clearance allows for easy 4-way forklift access.
Attractive & Durable, our polyester powder coat is available in a variety of colors.
It has front drop gate for easy access.
Robust wire formed construction.
When folding, the wire mesh containers are flat for space-saving shipping and storage.
Wire containers is long lasting and more economical storage materials.
Technological information
Outside dimension: 1030 mm × 840 mm × 850 mm, 950 mm × 760 mm × 700mm.
Wire diameter applied for this container: 6 mm.
Opening sizes: 50 mm × 50 mm.
Feet height: 100 mm.
Loading capacity: 1300 kg.
Volume: 0.52 m3.
Stack: 3.
Surface treatment of wire: Zinc coated.
Style: Half open containers.
Technological information
Outside dimension: 1230 mm × 1040 mm × 900 mm, 1150 mm × 960 mm × 750 mm.
Wire diameter: 6.2 mm.
Opening sizes: 50 mm × 50 mm.
Feet height: 100 mm.
Loading capacity: 1700 kg.
Volume: 0.84 m3.
Stack: 3.
Surface treatment of wire: Zinc coated.
Style: Half open containers.
Technological information
Outside dimension: 1040 mm × 840 mm × 850 mm, 950 mm × 760 mm × 700 mm.
Wire diameter: 6 mm.
Opening sizes: 50 mm × 100 mm.
Feet height: 100 mm.
Loading capacity: 800 kg.
Weight: 46 kg.
Volume: 0.52 m3.
Stack: 3.
Surface treatment of wire: Zinc coated.
Style: Half open containers.
Wire Cage Specification:
| Model | Wire(mm) | Grid(mm) | Exterior Dimension LxWxH(mm) | Feet Height(mm) | Volumn /m3 |
| A-1 | 6 | 50*50 | 800*600*640 | 100 | 0.22 |
| A-2 | 5.5 | 50*50 | 800*600*640 | 100 | 0.22 |
| A-3 | 5.3 | 50*50 | 800*600*640 | 100 | 0.22 |
| A-4 | 5 | 50*50 | 800*600*640 | 100 | 0.22 |
| Model | Wire(mm) | Grid(mm) | Exterior Dimension LxWxH(mm) | Feet Height(mm) | Volumn /m3 |
| B-1 | 6 | 50*50 | 1000*800*840 | 100 | 0.52 |
| B-2 | 5.5 | 50*50 | 1000*800*840 | 100 | 0.52 |
| B-3 | 6 | 50*100 | 1000*800*840 | 100 | 0.52 |
| B-4 | 5.3 | 50*50 | 1000*800*840 | 100 | 0.52 |
| B-5 | 5 | 50*50 | 1000*800*840 | 100 | 0.52 |
| Model | Wire(mm) | Grid(mm) | Exterior Dimension LxWxH(mm) | Feet Height(mm) | Volumn /m3 |
| C-1 | 6 | 50*50 | 1200*1000*890 | 100 | 0.84 |
| C-2 | 5.5 | 50*50 | 1200*1000*890 | 100 | 0.84 |
| C-3 | 6 | 50*100 | 1200*1000*890 | 100 | 0.84 |
| C-4 | 5.5 | 50*100 | 1200*1000*890 | 100 | 0.84 |
Rigid foldable collapsible steel metal wire mesh basket for storage
Square-stack leg - secure stacking; Half fold-down gate - easy access; Connected by helix
