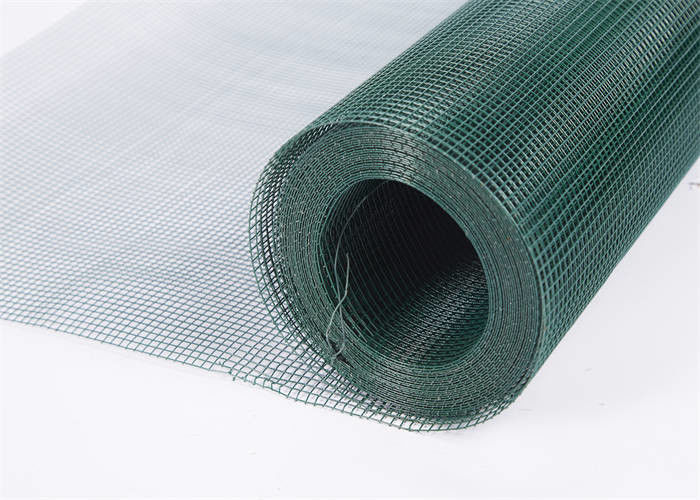

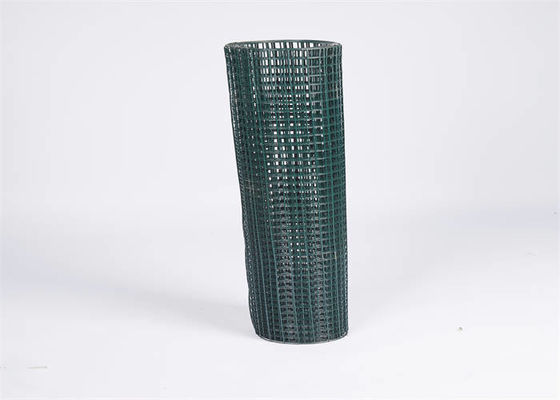

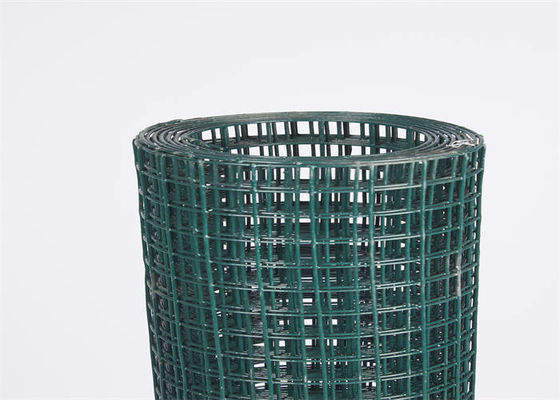

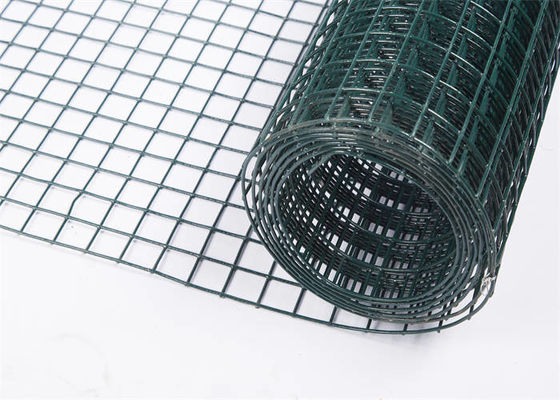

Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels

Wire Mesh Sizes of Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

Low carbon electric-galvanized square welded wire mesh

12.7 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
25.4 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
25.4 mm × 25.4 mm × 1.4 mm × 1000 mm × 30 m.
50.8 mm × 25.4 mm × 1.6 mm × 1000 mm × 30 m.
50.8 mm × 50.8 mm × 1.8 mm × 1000 mm × 30 m.
End application: for plastering.
Low carbon black square welded wire mesh

12.7 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
25.4 mm × 12.7 mm × 0.9 mm × 1000 mm × 30 m.
25.4 mm × 25.4 mm × 1.4 mm × 1000 mm × 30 m.
50.8 mm × 25.4 mm × 1.6 mm × 1000 mm × 30 m.
50.8 mm × 50.8 mm × 1.8 mm × 1000 mm × 30 m.
End application: for plastering.
Low carbon hot-dipped galvanized square welded wire mesh

Size of opening: 12.50 mm × 12.50 mm;
Wire diameter: 0.50 mm;
Width of roll: 1275 mm.
Weight of 1 square m.: 0.240 kg.
End application: for producing armored glass.
Quality specifications:

Allowable wire diameter tolerance: ± 0.02 mm.
Allowable tolerance of size of opening: ± 0.50 mm.
Allowable tolerance of width of roll: ± 10 mm.
Low carbon heat-treated wire should be used for making wire mesh. Wire surface must be bright, without chaps, exfoliation, rolling marks and rust. The welded places must be fixedly welded.
The wire mesh should not have detached wires.
Weld should have breakout power no more than 49 N (5 kgF).
Each roll of wire mesh should have length within 100-200 running meters. Allowed:
Single spills in quantity no more than 1% from the total quantity of openings per 1 sq.m. (in non-concentrated area).
No more than one completely detached wire per 50 running meters.

The specifications of Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

Advantages of Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

1. Strong Welded point
2. Standard Size
3. Uniform Hole Size
4. Surface Smooth,clear,bright
5. Long uselife
6. Strong Packing way
7. Easy Ship and store

Application of Playground Green PVC Coated Steel Wire Mesh Rolls , Stainless Steel Welded Wire Panels

Fences and gates
Architectural uses such as building facades
Architectural Wire Mesh for Green Building Design
Infill panels for railings and divider walls
Animal control
Screens for doors and windows
Machine guards
Shelving and partitions
Behind-the-scenes use in plumbing, walls and ceilings
Gardens to keep bugs away from their plants and vegetables
Agriculture
