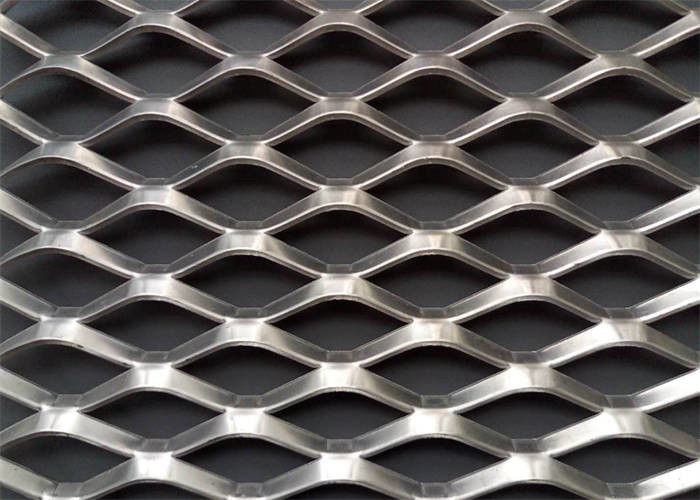

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon
Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon

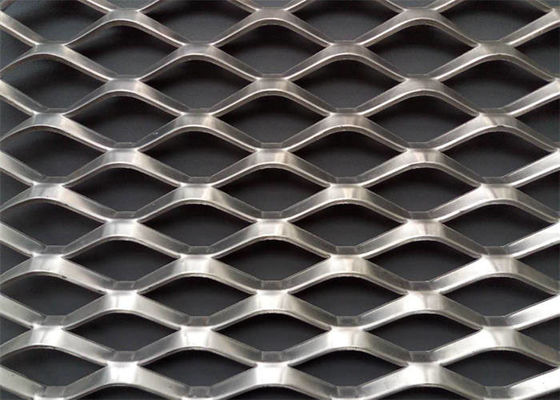

Large Image :  Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon

Product Details:
Place of Origin: China
Brand Name: Giant Shuttle
Certification: ISO9001
Model Number: WW-00010
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pics
Price: Negotiable
Packaging Details: In Pallet or In Bulk
Delivery Time: According to order quantity
Payment Terms: L/C, T/T
Supply Ability: 1000 Pics/Week
Detailed Product Description
Product: Diamond Expanded Metal Key Words: Expanded Metal
Time Guarantee: 25 Years Length: 1m-6m
Wire Diameter: Customized, 3-8mm Strand Length: 1m-30m
Width: 0.5m-2.5m Processing Way: Expanded Machine Punching
Sheet Thickness: 1.0-12mm Thickness: 0.5mm-8mm
Material: Aluminum, Carbon Steel, Stainless Steel, Galvanized Steel, Copper, Brass, Titanium, Nickel, Etc. Product Treatment: Flattened, Raised, Cut, Framed, Etc.
Strand Thickness: 0.5mm-8mm Opening Size: 2mm-50mm
Usage: Farm Fence, Protectin
Highlight:

Galvanized Coated Expanded Metal

,

Diamond Expanded Metal

,

Expanded Metal Security Fencing

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon


Expanded metal is an extremely versatile material, available in a variety of ferrous and non-ferrous metals and a wide range of mesh sizes. Although there are standard designs, expanded metal is almost infinitely variable in pattern and can be specified to achieve whatever characteristics are most critical for your applications. Increased pattern size alters open area and improves cost effectiveness. Varied strand width changes appearance and weight. Our design/engineering team works closely with our customers to offer practical recommendations and design solutions.

Advantages of Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon



Compared with the welded and woven wire mesh, the structure of expanded metal mesh is complete and stable, so it is easier to install and transport. Besides, unlike fiberglass cloth, expanded mesh has absolute flame retardancy, durability, resistance to harsh environment and water resistance.

Moreover, the expanded mesh is made by cutting and stretching, so there is no waste in its production process, which can save the product cost. Its price is also very competitive.



Application of Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon



Metal grates
Security fencing, walls, and doors
Racks and shelving
Strainers
Architectural infill panels
Satellite and radar antennas
HVAC systems
Partitions and equipment enclosures
Speaker grilles
Wind and machine guards
EMI/RFI shielding
Fluid and air filters



Feature of Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon

Simply fixed to the wall of water can plastering
Provide a smooth rounded edge for the corner
Easy to adjust to a variety of angles

One piece and single unit construction
Less weight and more economic than regular metal sheet
Extensive range of materials to suit any application
It is rigid for protective uses, while providing decorative effect
High quality for durable use
The most economical option among all metal materials
Easy to install



Specification of Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon

Pattern
Designation
LWD
inches
(mm)
SWD
inches
(mm)
Orig. Mat'l
Thickness
inches
(mm)
Strand
Width
inches
(mm)
Openings
per sq. in.
500 .405 - .506"
(10.25 - 12.75)
.143 - .279"
(3.6 - 7.1)
.003 - .04"
(.075 - 1)
.007- .07"
(.175 - 1.775)
15-22
275 .215 - .289"
(5.4 - 7.4)
.107 - .200"
(2.7 - 5.1)
.003 - .035"
(.075 - .9)
.005- .055"
(.125 - 1.4)
33-77
190 .180 - .190"
(4.5 -4.8)
.056 -.143"
(1.4 - 3.6)
.002 - .030"
(.05 - .75)
.005- .045"
(.125 - 1.1)
79-166
125 .112 - .160"
(3.0 - 4.06)
.055 -.115"
(1.4 - 2.92)
.002 - .026"
(.05 - .7)
.004- .04"
(.1 - 1.10)
114-253
100 .093 - .112"
(2.4 - 2.8)
.038 -.091"
(.97 - 2.3)
.002 - .025"
(.05 - .61)
.005- .026"
(.125 - .66)
253-353
077 .075 - .080"
(1.91 - 2.03)
.032 -.053"
(0.82 - 1.35)
.001 - .018"
(.025 - .46)
.004 - .020"
(.1 - .51)
493-780
050 .050 - 06"
(1.27 - 1.5)
.021 -.041"
(0.53 - 1.04)
.001 - .015"
(.025 - .381)
.004 - .015"
(.1 - .381)
809-1814
031 .03 - .04"
(0.78 - 1.02)
.021 -.029"
(0.53 - 0.74)
.001 - .005"
(.025 - .127)
.004 - .012"
(.1 - .31)
1789-2942
020 .020"
(0.51)
.011 -.014"
(0.28 - 0.36)
.001 - .002"
(.025 - .050)
.004 - .006"
(.1 - .152)
8500-11000

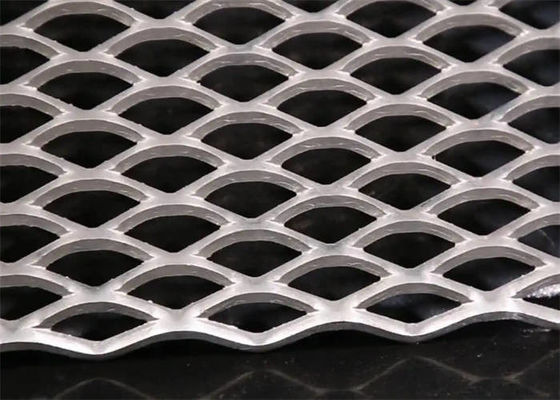

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon 0

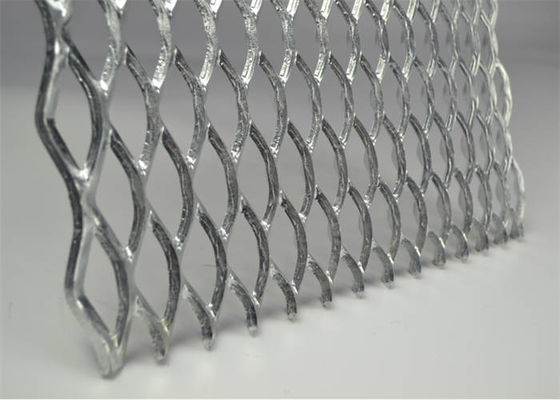

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon 1

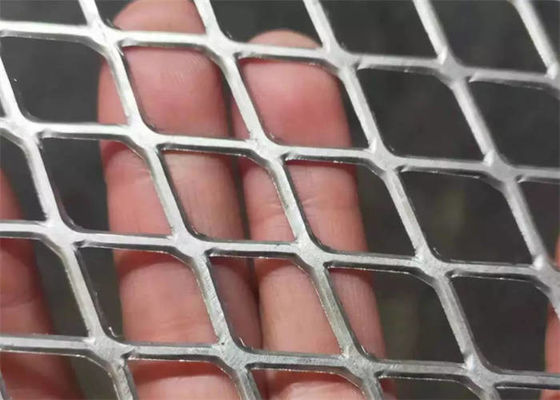

Diamond Expanded Metal Security Fencing Electro Galvanized Coated Low Carbon 2
