Anping Win Win Wire Mesh Manufacturing Co., Ltd
Product Details:
Payment & Shipping Terms:
|
Name: | Light Type Expanded Metal Mesh | Key Words: | Expanded Metal |
---|---|---|---|
Time Guarantee: | 25 Years | Sheet Thickness: | 1.0-12mm |
Thickness: | 0.5mm-8mm | Material: | Aluminum, Carbon Steel, Stainless Steel, Galvanized Steel, Copper, Brass, Titanium, Nickel, Etc. |
Wire Diameter: | Customized, 3-8mm | Usage: | Farm Fence, Protectin |
Application: | Protecting Mesh | Type: | Expanded Mesh |
Weave Style: | EXPANDED METAL | Color: | Silver |
Surface Treatment: | Galvanized | Feature: | Corrosion Resistance,Beautiful |
Hole Shape: | Etc,round And Hexgonal Shape | Packing: | On Your Request |
Short Way Of Mesh: | 2-40mm | Advantage: | High Quality With Good Prices |
Highlight: | Light Type Expanded Metal,ISO9001 Expanded Metal Mesh |

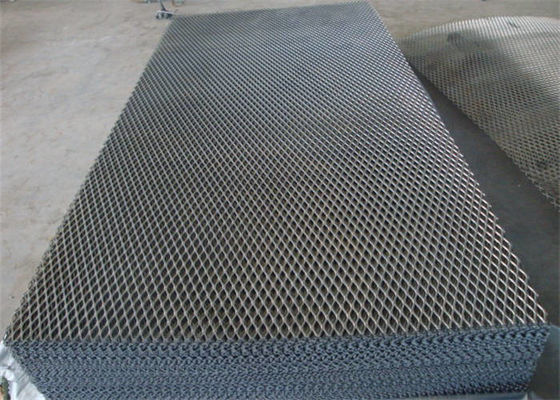

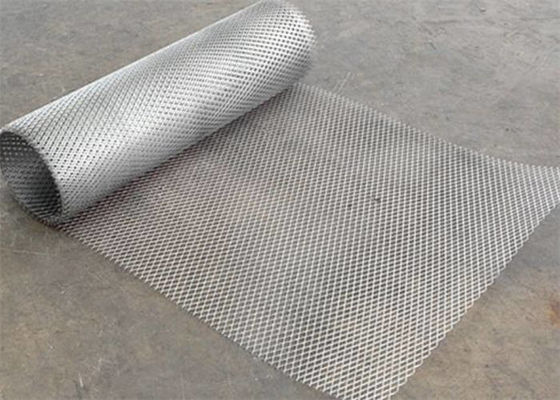

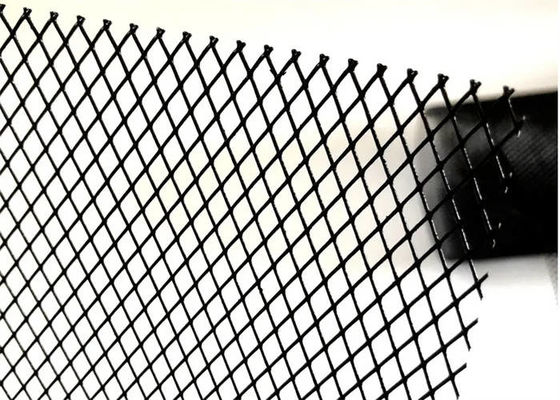

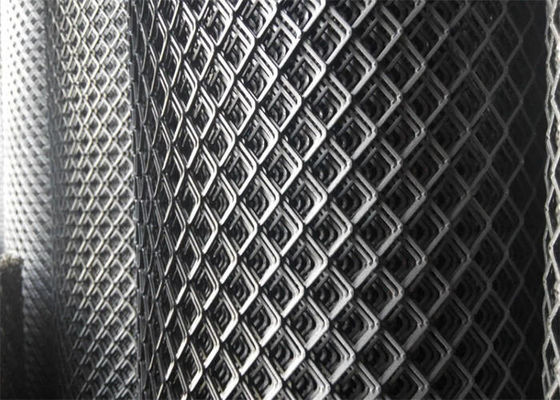

Light Type Expanded Metal Mesh Plaster Mesh 0.5mm-8mm Thickness
Light type expanded metal mesh is widely used as a reinforcing material, especially for the plastering work, so it also be referred to as stucco netting. As it is manufactured from sheet steel blade which cuts through and uniformly stretched in cells with a diamond shape, it has no bends or welds, and is very strong and durable. It is the perfect combination of qualities such as strength and flexibility and light weight.
Materials: cold-rolled metal sheet - galvanized or uncoated. If you want to prevent rust stains and corrode, please choose the galvanized sheet.
Thickness: 0.5mm - 1.6mm, can be adjusted depend on properties of the finished plaster mesh.
Opening mesh size: 5x10mm, 15 × 7mm, 20 × 8mm, 30 × 12mm, 40 × 16mm, 45 × 17mm, 50 × 18mm, etc., can be made as your requests.
Roll height: 1.0m - 2.5m, as requests.
Roll length: 10m, 15m, 20m, 25m, as requests.
Advantages of Light Type Expanded Metal Mesh Plaster Mesh 0.5mm-8mm Thickness
Compared with the welded and woven wire mesh, the structure of expanded metal mesh is complete and stable, so it is easier to install and transport. Besides, unlike fiberglass cloth, expanded mesh has absolute flame retardancy, durability, resistance to harsh environment and water resistance.
Moreover, the expanded mesh is made by cutting and stretching, so there is no waste in its production process, which can save the product cost. Its price is also very competitive.
Application of Light Type Expanded Metal Mesh Plaster Mesh 0.5mm-8mm Thickness
Metal grates
Security fencing, walls, and doors
Racks and shelving
Strainers
Architectural infill panels
Satellite and radar antennas
HVAC systems
Partitions and equipment enclosures
Speaker grilles
Wind and machine guards
EMI/RFI shielding
Fluid and air filters
Feature of Light Type Expanded Metal Mesh Plaster Mesh 0.5mm-8mm Thickness
Simply fixed to the wall of water can plastering
Provide a smooth rounded edge for the corner
Easy to adjust to a variety of angles
One piece and single unit construction
Less weight and more economic than regular metal sheet
Extensive range of materials to suit any application
It is rigid for protective uses, while providing decorative effect
High quality for durable use
The most economical option among all metal materials
Easy to install
Pattern Designation |
LWD inches (mm) |
SWD inches (mm) |
Orig. Mat'l Thickness inches (mm) |
Strand Width inches (mm) |
Openings per sq. in. |
500 | .405 - .506" (10.25 - 12.75) |
.143 - .279" (3.6 - 7.1) |
.003 - .04" (.075 - 1) |
.007- .07" (.175 - 1.775) |
15-22 |
275 | .215 - .289" (5.4 - 7.4) |
.107 - .200" (2.7 - 5.1) |
.003 - .035" (.075 - .9) |
.005- .055" (.125 - 1.4) |
33-77 |
190 | .180 - .190" (4.5 -4.8) |
.056 -.143" (1.4 - 3.6) |
.002 - .030" (.05 - .75) |
.005- .045" (.125 - 1.1) |
79-166 |
125 | .112 - .160" (3.0 - 4.06) |
.055 -.115" (1.4 - 2.92) |
.002 - .026" (.05 - .7) |
.004- .04" (.1 - 1.10) |
114-253 |
100 | .093 - .112" (2.4 - 2.8) |
.038 -.091" (.97 - 2.3) |
.002 - .025" (.05 - .61) |
.005- .026" (.125 - .66) |
253-353 |
077 | .075 - .080" (1.91 - 2.03) |
.032 -.053" (0.82 - 1.35) |
.001 - .018" (.025 - .46) |
.004 - .020" (.1 - .51) |
493-780 |
050 | .050 - 06" (1.27 - 1.5) |
.021 -.041" (0.53 - 1.04) |
.001 - .015" (.025 - .381) |
.004 - .015" (.1 - .381) |
809-1814 |
031 | .03 - .04" (0.78 - 1.02) |
.021 -.029" (0.53 - 0.74) |
.001 - .005" (.025 - .127) |
.004 - .012" (.1 - .31) |
1789-2942 |
020 | .020" (0.51) |
.011 -.014" (0.28 - 0.36) |
.001 - .002" (.025 - .050) |
.004 - .006" (.1 - .152) |
8500-11000 |
