Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Features: | Anti-corrosion, Anti-slip, High Strength, Easy To Install | Name: | Hot Dip Galvanized Steel Grating |
|---|---|---|---|
| Key Words: | Bar Grating | Installation Method: | Welding, Clamping, Bolted |
| Panel Shape: | Rectangular, Square | Cross Bar Pitch: | 38,50,76,100,101.6mm |
| Grate: | Q195,Q235 | Oem Service: | Available |
| Cross Bar Size: | 6mm, 8mm, 10mm | Hole: | Channel |
| Cross Bar Spacing: | 50mm, 100mm | Sample: | Free |
| Grating Width: | 1000mm, 2000mm, 3000mm, 6000mm | Cross Bar Shape: | Twisted Square, Round, Rectangular |
| Products Name: | Srttated Steel Grating | Bearing Bar Width: | 25mm-100mm |
| Highlight: | Hot Dip Galvanized Steel Grating,Hot Dip Galvanized Grating,Galvanized Bar Grating |
||

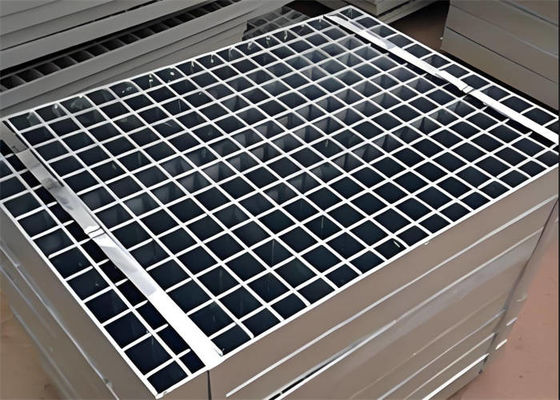

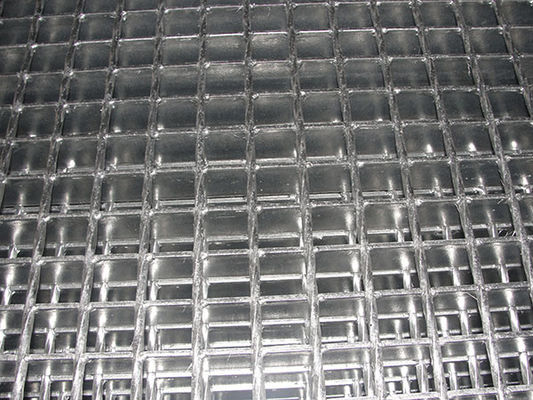

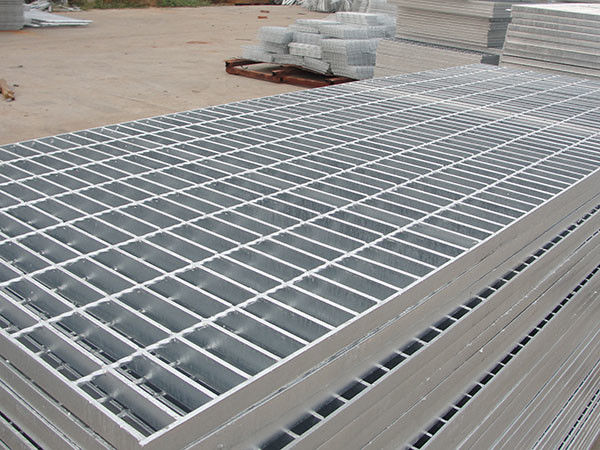

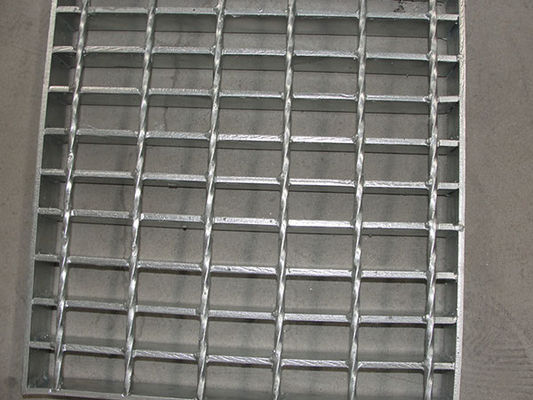

Hot Dip Galvanized Steel Grating 32x4mm 30x100mm Drainage Galvanized Bar Grating
Steel grating is made by welding Flat steel and Cross bars with certain distance.
cutting, opening, edging and other processes. The products enjoy the features of high strength,
light structure, high bearing, convenience for loading and other properties.
coating gives the product excellent anti-corrosion property.
Product Applications
Widely used in electricity, petrochemical, chemical industry, metallurgy, machines, modeling, port,
marine engineering, construction, papermaking, medicine, textile, well cover, suspended ceiling,
ventilation and penetration of light, etc.
Product Characteristics
1.Light weight, heavy duty.
2.Anti rust,anti corrosion, skid-proof.
3.Easily fixed and dismantled.
4.Economical.
5.Ventilated and penetration of light.
6.Easily to be cleaned.
7.Beautiful in appearance.
Product Specifications(In mm)
| Product name | Hot Dip Galvanized Open Web Anti Slide Project Platform Steel Grating |
| Material | Steel, Carbon steel, Q235 |
| Technique | Welded |
| Bearing Bar Pitch | 15mm-80mm |
| Cross Bar Pitch | 25mm-200mm |
| Bearing Bar Thickness | 3mm-8mm |
| Bearing Bar Width | 20mm-80mm |
| Surface Treatment | Hot Galvanized |
| Colour | Silver |
| Style | Plain, Serrated |
| Bearing bar size | Bearing bar pitch | Cross bar pitch | Weight kg/sqm |
| 25x3 | 30 | 50 | 10.26 |
| 25 x 5 | 30 | 50 | 14.74 |
| 32 x 3 | 30 | 50 | 11.84 |
| 32 x 5 | 30 | 50 | 17.90 |
| 40 x 3 | 30 | 50 | 14.37 |
| 40 x 5 | 30 | 50 | 21.50 |
| 45 x 5 | 30 | 50 | 27.34 |
| 50 x 5 | 30 | 50 | 26.03 |
| 55 x 5 | 30 | 50 | 29.15 |
| 65x5 | 30 | 50 | 33.80 |
