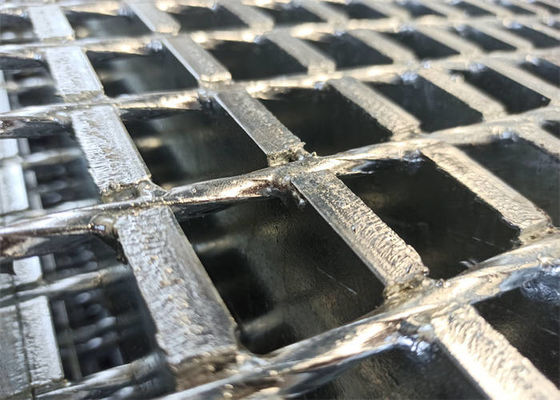

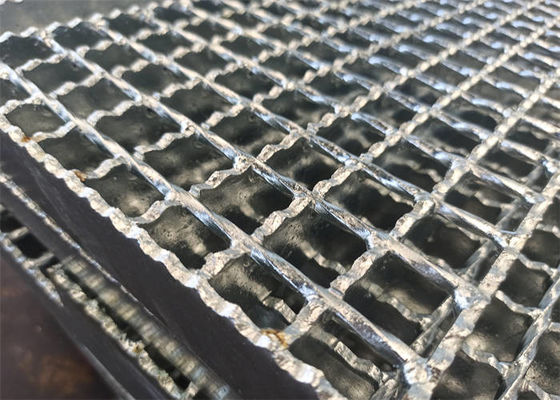

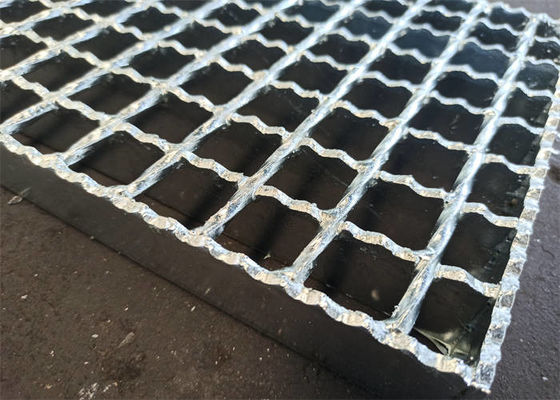

Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Large Image : Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-00011

Payment & Shipping Terms:

Minimum Order Quantity:	50 Square Meters
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T,
Supply Ability:	5000 Square Meters/Week

Contact Now

Detailed Product Description

Name:	Heavy Duty Steel Grating	Key Words:	Bar Grating
Wire Diameter:	20*5mm	Material:	Steel
Package:	Steel Pallet, Wooden Pallet, Customized	Colour:	Silver, Green, Black, White, Etc
Bearing Bar Size:	20x3mm, 25x3mm, 30x3mm, 30x5mm, 40x3mm, 40x5mm, 50x3mm, 50x5mm, 60x3mm, 60x5mm	Cross Bar Thickness:	3mm, 4mm, 5mm, 6mm
Key Word:	Hot Galvanised Steel Grating	Surface:	Hot Dipped Galvanized
Feature:	High Strength, Anti-corrosion, Good Ventilation, Easy Installation	Length:	0.5m-5m
Coating:	Hot Dipped Gal / Painted	Wifth:	0.5m-2m
Opening:	As Your Requested	Thicknes:	2.5-5.5mm
Highlight:	Safety Heavy Duty Steel Grating , Durable Heavy Duty Steel Grating , Anti Corrosion Steel Grating Heavy Duty

Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Heavy duty steel grating supplies far greater strength-to-weight ratio than other flooring materials to bear the heavy load such as forklift or truck traffic.

Because these gratings are typically in more severe service, it is highly recommended that all open ends be trim or load banded. The welded band bar helps distribute these loads and minimizes potential panel distortion.

Features of Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Light weight. high bearing capability and high strength.
Non-silp. anti-corrosion.
Not easy to deform
Beautiful appearance.
Easy to install and remove.
Extended the lifespan.

Applications of Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Large-scale shopping malls.
Construction industry.
Factories. subway stations.
Offshore drilling platforms.
Ships.
Terminals.
Other industrial and civil construction.

Specifications of Safety Durable Heavy Duty Steel Grating Lightweight Anti Corrosion

Type	Plain / Smooth, Serrated /teeth, I bar, serrated-I bar
Load /Bearing bar size	20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc.
Load /Bearing bar pitch	12.5,15,20,25,30,35,40,50mm
Transverse /Cross bar pitch	38,50,80,100mm
Material	Low carbon steel, stainless steel, aluminum alloy
Surface treatment	Untreated, hot galvanized, painting,electro galvanized
Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS 4592-1987 Australia: AS 1657-1985
Material standard	China: GB 700-88 UK: BS 4360:1990 USA: ASTM A36/A36M-96 AUSTRALIA: AS 3679
HDG standard	CHINA: GB/T13912-2002 UK: BS729 USA: ASTM A123/A123M-97a AUSTRALIA: AS 1650
