Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hot Dipped Galvanized Welded Wire Mesh | Key Words: | Welded Wire Mesh |
|---|---|---|---|
| Material: | Low Carbon Steel Wire, Stainless Steel Wire, Galvanized Wire, PVC Coated Wire | Length: | 30m-50m |
| Feature: | Waterproof,Anti-rust,Anti-corrosion | Welded Type: | Light Welded, And Heavy Welded |
| Type: | Welded Mesh Rolls | Welded Point: | Smooth And Firm |
| Hole Size: | 5/8'' As Customer Request | Wire Gauge: | 0.5-8mm |
| Hole Shape: | Square,long Hole | Wire Gauge: | BWG#12--#26 |
| Application: | Construction Wire Mesh,Fence Mesh,building | Aperture: | 1/2" |
| Surface Treatment: | Hot Dipped Galvanized | Width: | 0.5m To 2.2m |
| Highlight: | Hot Dipped Galvanized Welded Wire Mesh,Welded Wire Mesh Corrosion Resistant,Hot Dip Galvanized Welded Wire Mesh |
||

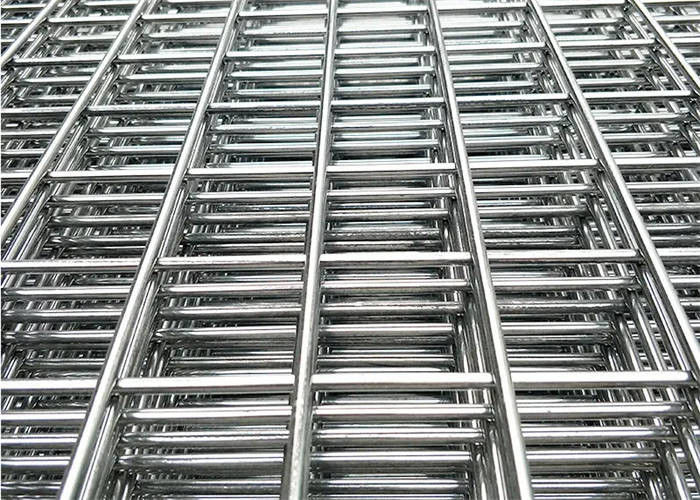

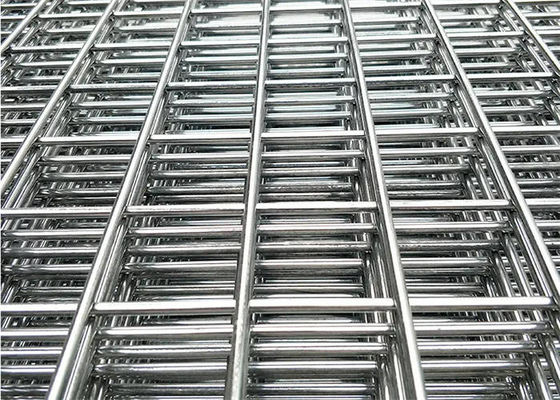

Hot Dipped Galvanized Welded Wire Mesh Corrosion Resistant ISO9001 Approved
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on.

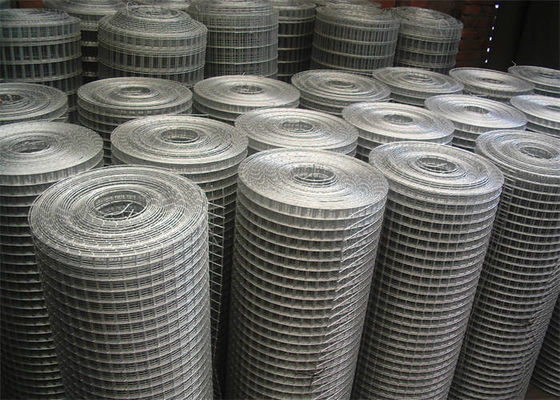

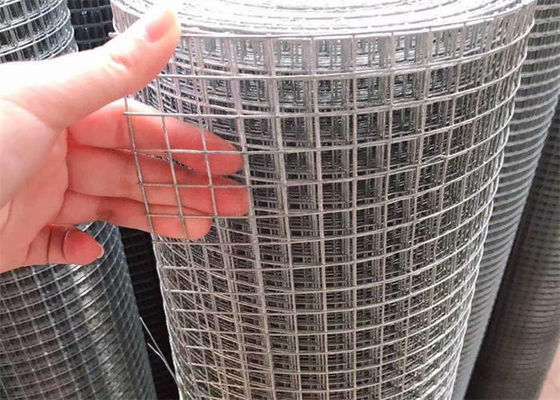

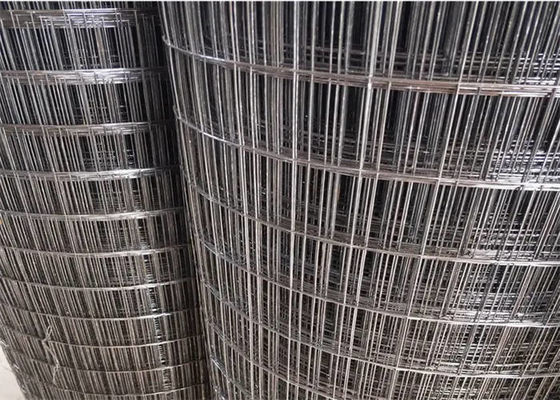

Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.
Hot-Dipped galvanized welded wire panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.
This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application.
The Specification of Hot Dipped Galvanized Welded Wire Mesh Corrosion Resistant ISO9001 Approved
Hot dip galvanized welded mesh + PVC coating (Green 6005): 12.7 mm × 12.7 mm / wire diameter internal 0,.65 mm - coated 0.90 mm / roll height 100 cm / roll length 5 m.
Hot dip galvanized mesh (galvanized after welding): 12.7 mm × 12.7 mm / wire diameter 0.65 mm / roll height 50 cm / roll length 5 m.
Hot dip galvanized mesh (after weaving) + PVC coating (Green 6005): mesh 25 mm / wire diameter internal 0.80 mm - coated 1.00 mm / roll height 50 cm / roll length 10 m.
Hot dip galvanized mesh (galvanized after weaving): mesh 13 mm / wire diameter 0.70 mm / roll height 50 cm / roll length 10 m.
Technology info:
Diameter: 0.65 +/- 0.025 mm.
Zn-coating: min. 20 g/m2.
Tensile strength: 300-450 N/mm2.
Elongation: min. 15% .
Carbon: max . 0.10%.
Make-up: 150 kg coils with an internal dia. of +/- 270 mm and an external dia. of +/- 450 mm.
| Mesh size | Wire gauge diameter | ||
|---|---|---|---|
| in mm | in inch | BWG No. | mm |
| 6.4 | 1/4 | 24-22 | 0.56- 0.71 |
| 9.5 | 3/8 | 23-19 | 0.64 - 1.07 |
| 12.7 | 1/2 | 22-16 | 0.71 - 1.65 |
| 15.9 | 5/8 | 21-16 | 0.81 - 1.65 |
| 19.1 | 3/4 | 21-16 | 0.81 - 1.65 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81 - 1.65 |
| 25.4 | 1 | 21-14 | 0.81 - 2.11 |
| 38.1 | 1 1/2 | 19-14 | 1.07 - 2.11 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47 - 2.11 |
| 50.8 | 2 | 16-12 | 1.65 - 2.77 |
| 50.8 to 305 | 2 to 12 | ||
GI square wire mesh specification:
| Mesh | Width length | Weight |
|---|---|---|
| 16 × 16 | 3 ft. × 100 ft. | 24.75 kg/roll |
| 16 × 16 | 4 ft. × 100 ft. | 33 kg/coil |
| 16 × 16 | 4 ft. × 100 ft. | 41.25 kg/coil |
| 16 × 16 | 5 ft. × 100 ft. | 18 kg/coil |
| 40 × 40 | 1 mtr × 100 ft. | 20 kg/coil |
Advantages of Hot Dipped Galvanized Welded Wire Mesh Corrosion Resistant ISO9001 Approved
1. Strong Welded point
2. Standard Size
3. Uniform Hole Size
4. Surface Smooth,clear,bright
5. Long uselife
6. Strong Packing way
7. Easy Ship and store
Application of Hot Dipped Galvanized Welded Wire Mesh Corrosion Resistant ISO9001 Approved
Fences and gates
Architectural uses such as building facades
Architectural Wire Mesh for Green Building Design
Infill panels for railings and divider walls
Animal control
Screens for doors and windows
Machine guards
Shelving and partitions
Behind-the-scenes use in plumbing, walls and ceilings
Gardens to keep bugs away from their plants and vegetables
Agriculture
