Product Details:
Payment & Shipping Terms:
|
| Product: | Decorative Welded Wire Mesh | Wire Gauge: | 0.5mm-14mm |
|---|---|---|---|
| Width: | 0.5m-2m | Apreture: | 2 |
| Packing: | Waterproof Paper,Pallet,In Roll | Material: | Low Carbon Steel Wire |
| Port: | Tianjin | Business Type: | Factory |
| Weave Technique: | Welded | Production Capacity: | 2000rolls/Day |
| Mesh Size: | 1/4 | Mesh: | 1-3200mesh |
| Hole Shape: | Square | Size: | 1.2x15meters |
| Shape: | According To Drawing | ||
| Highlight: | Decorative Welded Wire Mesh,Welded Wire Mesh PVC Coated,PVC Coated Welded Mesh |
||

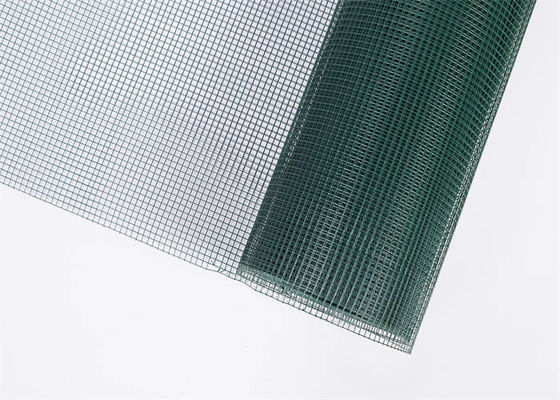

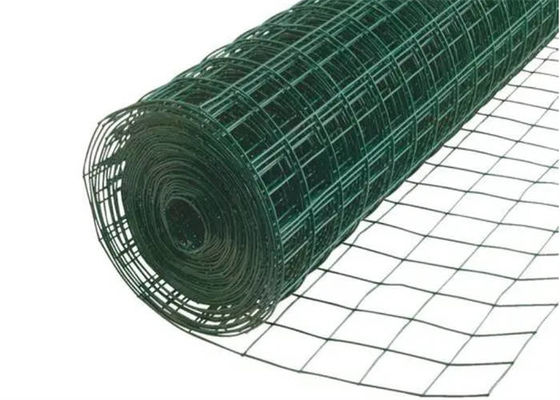

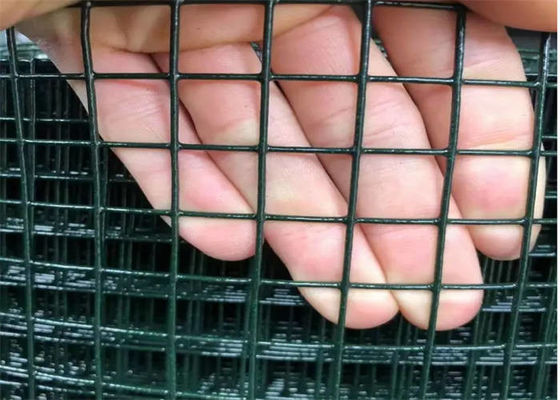

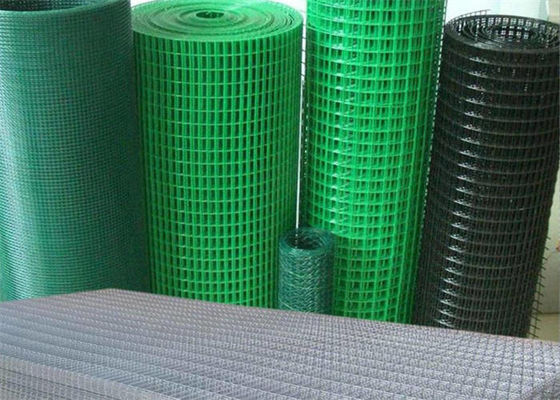

0.5mm-14mm Welded Wire Mesh PVC Coated For Fences / Decoration
PVC coated welded mesh with plastic covering is constructed with galvanized iron wire of high quality. It has PVC powder covering that is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. It is used in fencing residential and official properties like gardens, parks, building. The PVC coated welded mesh which is available as both rolls and panels, is also available in different colors like white, black, green.
The inner materials wire of PVC coated welded wire mesh panels or rolls has steel wire, hot dipped galvanized wire, electro galvanized wire and low carbon steel wire. with a breakthrough coating process. The finished PVC coated welded wire mesh can have high corrosion resistance. Galvanized welded mesh is coated with a thick layer of PVC which is tightly bonded to the wire by a heat process. They have double protection. Not only does the vinyl coating seal the wire from water and other corrosive elements, but the underlying mesh is also protected by a zinc coating.
PVC coated welded wire mesh is used as fences, decoration and machinery guard in various industries, agriculture, mine developing, sports field, breeding and transport. And vinyl-coated welded wire mesh is suitable to be used for tomato cages.
Colors: Green, black, yellow, blue, white or other colors at customers request.
Specifications of 0.5mm-14mm Welded Wire Mesh PVC Coated For Fences / Decoration
| Mesh size | Wire gauge diameter | ||
|---|---|---|---|
| in mm | in inch | BWG No. | mm |
| 6.4 | 1/4 | 24-22 | 0.56- 0.71 |
| 9.5 | 3/8 | 23-19 | 0.64 - 1.07 |
| 12.7 | 1/2 | 22-16 | 0.71 - 1.65 |
| 15.9 | 5/8 | 21-16 | 0.81 - 1.65 |
| 19.1 | 3/4 | 21-16 | 0.81 - 1.65 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81 - 1.65 |
| 25.4 | 1 | 21-14 | 0.81 - 2.11 |
| 38.1 | 1 1/2 | 19-14 | 1.07 - 2.11 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47 - 2.11 |
| 50.8 | 2 | 16-12 | 1.65 - 2.77 |
| 50.8 to 305 | 2 to 12 | ||
GI square wire mesh specification:
| Mesh | Width length | Weight |
|---|---|---|
| 16 × 16 | 3 ft. × 100 ft. | 24.75 kg/roll |
| 16 × 16 | 4 ft. × 100 ft. | 33 kg/coil |
| 16 × 16 | 4 ft. × 100 ft. | 41.25 kg/coil |
| 16 × 16 | 5 ft. × 100 ft. | 18 kg/coil |
| 40 × 40 | 1 mtr × 100 ft. | 20 kg/coil |
Advantages of 0.5mm-14mm Welded Wire Mesh PVC Coated For Fences / Decoration
1. Strong Welded point
2. Standard Size
3. Uniform Hole Size
4. Surface Smooth,clear,bright
5. Long uselife
6. Strong Packing way
7. Easy Ship and store
Application of 0.5mm-14mm Welded Wire Mesh PVC Coated For Fences / Decoration
Fences and gates
Architectural uses such as building facades
Architectural Wire Mesh for Green Building Design
Infill panels for railings and divider walls
Animal control
Screens for doors and windows
Machine guards
Shelving and partitions
Behind-the-scenes use in plumbing, walls and ceilings
Gardens to keep bugs away from their plants and vegetables
Agriculture
