Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Euro Guard Welded Wire Mesh Fence | Key Words: | Wire Mesh Fence |
|---|---|---|---|
| Size: | 1.8m 2m 2.2m 2.5m Etc | W Pale Thickness: | 2-4mm |
| Opening Size: | 76.2X12.7mm, 75X12.5mm | Tensible Strength: | 950-1050MPA |
| Zinc Coated: | 60g/m2 ,250g/m2 | Wire Diameter: | 2.5mm - 4.0mm |
| Item: | Euro Guard Welded Wire Mesh Fence | Feature: | Durable Good Looking |
| Highlight: | Welded Wire Mesh Fence,Wire Mesh Fence 2.5mm,Welded Wire Mesh Fencing 6.0mm |
||

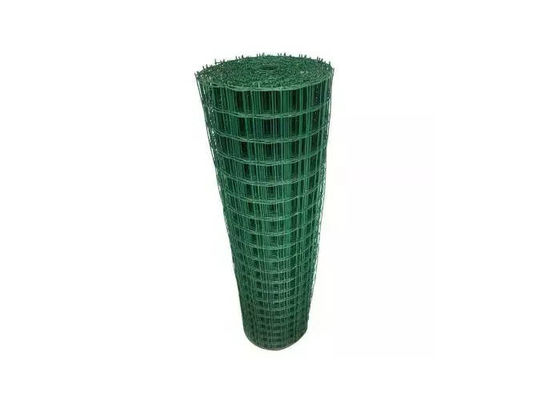

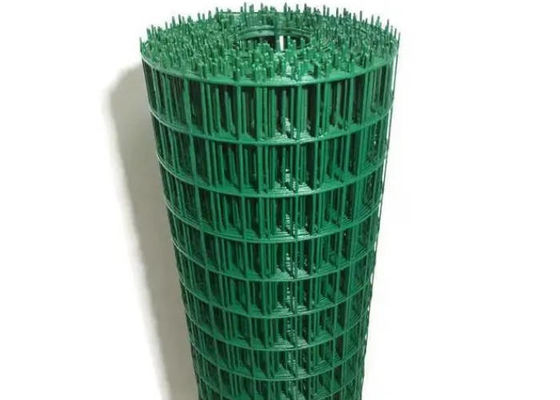

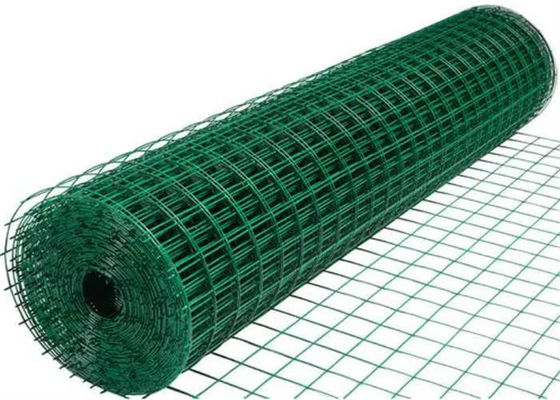

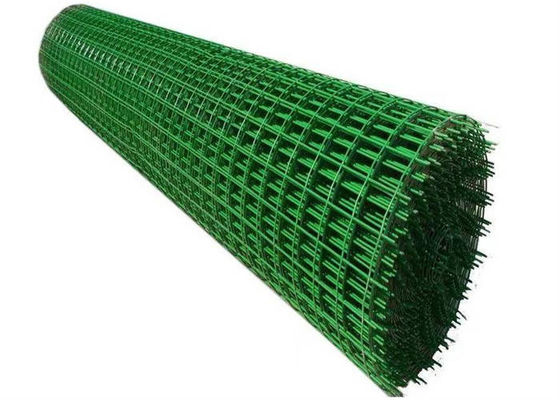

Euro Guard Welded Wire Mesh Fence 2.5mm - 6.0mm For Transport
Our factory can serve different types welded wire fence. Welded euro fence is made of high quality materials and precision processing.
Here are welded euro fence materials
Stainless steel wire.
Low carbon steel wire.
PVC coated wire.
Processing of Euro Guard Welded Wire Mesh Fence 2.5mm - 6.0mm For Transport
PVC coated after welding of steel wire. Electro galvanizing, hot-dip galvanizing or PVC coating can be done separately.
The Benefits of Euro Guard Welded Wire Mesh Fence 2.5mm - 6.0mm For Transport
Complete system
The system consist of fence in various heights supported by several types of posts, each with a specific fixing system.
All types are available with adapted accessories.
Long life time
The coating technology of this welded wire fence assures an extra long life.
Fast installation
All components have been developed to provide a professional product of high quality that can be installed efficiently and rapidly.
Fence applications:
Euro fence is used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, transport, etc.
The Specifications of Euro Guard Welded Wire Mesh Fence 2.5mm - 6.0mm For Transport
Tensile strength:
Line wires: 450-550 net weight each square meter.
Cross wires:600-700 net weight each square meter.
Common specifications of fence
| Wire diameter | mesh | |
|---|---|---|
| Inch | mm | |
| 2.5 mm/3.0 mm | 4" × 4" | 101.6 mm × 101.6 mm |
| 2.5 mm/3.0 mm | 4" × 3" | 101.6 mm × 50.8mm |
| 2.0 mm/2.5 mm | 4" × 2" | 101.6mm × 50.8 mm |
| 1.9 mm/2.4 mm | 3" × 2" | 75 mm × 50.8 mm |
| 1.9 mm/2.4 mm | 2" × 2" | 50.8 mm × 50.8 mm |
| 1.9 mm/2.4 mm | 2" × 1" | 50.8 mm × 25.4 mm |
Euro fence technique function
| Examination item | Function index sigh | Performance standard |
|---|---|---|
| The thin degree | ≤5% | GB/T 6554 |
| The thickness of coated | 0.6-1.0 mm | GB/T 6554 |
| The strength of concussion | 21.6J | AST MD 2794 |
| The function of winding | 1 Grade | GB/T 6742 |
| Adhesive force | 1 Grade | GB/T 9286 |
| The rate of rupture and protraction | =500% | GB/T 1040 |
| Manpower accelerating aging | no apparent change | GB/T 9344 |
| chemical media soaking resistance(168h 23±2°C)10%HCL 10%Na and Carbon | no apparent change | GB/T 11547 |
