50 × 50MM Wire Mesh Welded Fence Free Sample Available

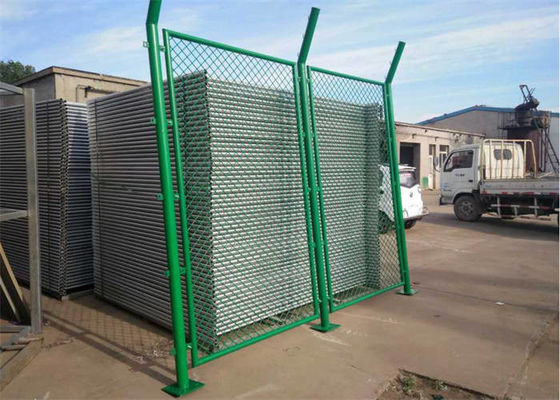

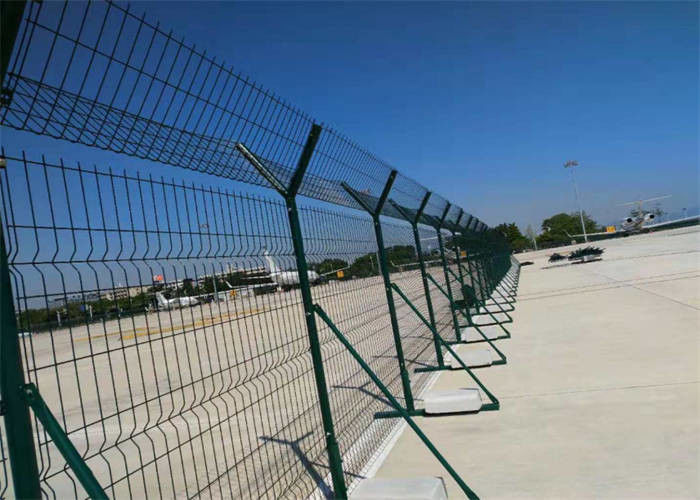

The welded anti-intruder fence can be connected with different posts, including intermediate post and straining post. The intermediate post has different styles according to the crank type. The main types are inward cranked type, outward cranked type, straight type and double extension arm type.

There are four line wires evenly spaced on the welded wire mesh fence. The bottom wire is close to the ground and the top wire is not more than 50 mm below the top horizontal of the mesh for 50 mm meshes and not more than 75 mm below the 75 mm horizontal meshes. The line wire is 3 mm diameters and conform to BS EN 10223-6 or BS 4102 standard. Stirrup wire is used for securing line wires to intermediate post, which conform to BS 4102 standard with a 2.5 mm diameters. The tying wire is used for securing mesh to line wires, which conform to BS 4102 standard with a nominal 1.6 mm diameter.

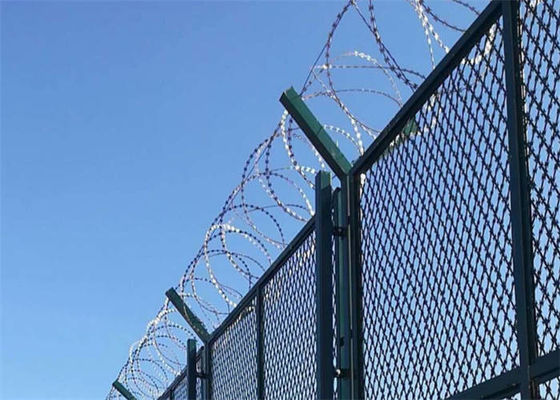

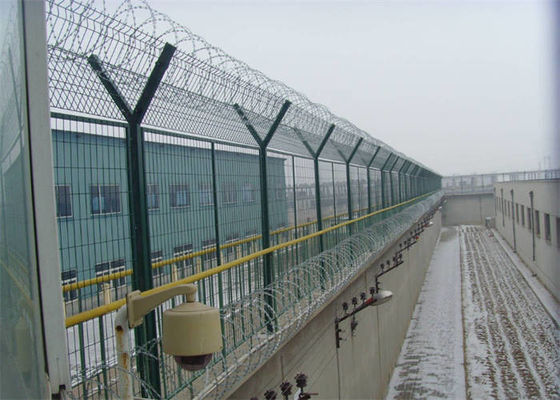

Additional, the barbed wires are installed top or both top and bottom of the welded wire mesh to prevent intruders from entering the area and improve the safety factor. The barbed wire conform to BS EN 10223-6 standard.

Specifications of welded wire mesh

• Material: zinc coated wire or organic coated wire.
• Wire diameter:
  • Zinc coated wire: 3 mm.
  • Plastic coated wire: 3/4 mm.
• Mesh size: 50 mm × 50 mm or 75 mm× 25 mm.
• Line wire diameter:
  • Zinc coated wire: 3 mm.
  • Plastic coated wire: 3/4 mm.
• Stirrup wire diameter:
  • Zinc coated wire: 2.5 mm.
  • Plastic coated wire: 2.5/3.5 mm
• Tying wire diameter:
  • Zinc coated wire: 1.6 mm.
  • Plastic coated wire: 1.6/2.6 mm
• Height:
  • 2.4 m if it is not be buried.
  • 2.7 m if it is to be buried.
• Post type: intermediate post and straining post.
