Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product: | Galvanized Welded Wire Mesh | Wire Gauge: | 0.5mm-14mm |
|---|---|---|---|
| Width: | 0.5m-2m | Apreture: | 2 |
| Packing: | Waterproof Paper,Pallet,In Roll | Material: | Low Carbon Steel Wire |
| Port: | Tianjin | Business Type: | Factory |
| Weave Technique: | Welded | Production Capacity: | 2000rolls/Day |
| Mesh Size: | 1/4 | Mesh: | 1-3200mesh |
| Hole Shape: | Square | Size: | 1.2x15meters |
| Shape: | According To Drawing | ||
| Highlight: | Galvanized Welded Wire Mesh,Galvanised Welded Wire Mesh,Fence Welded Wire Mesh |
||

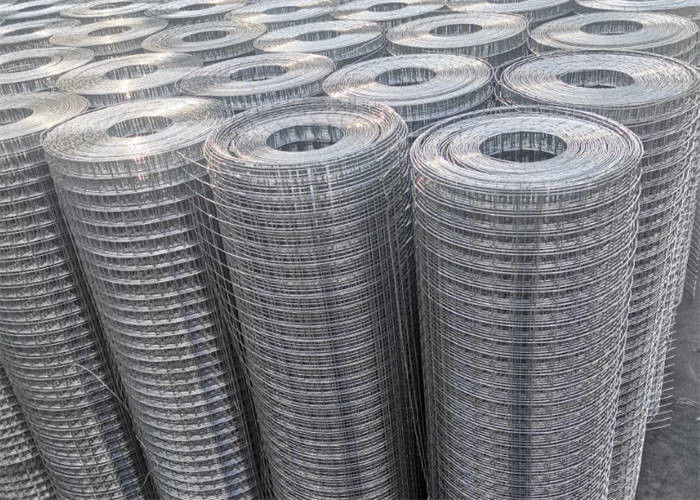

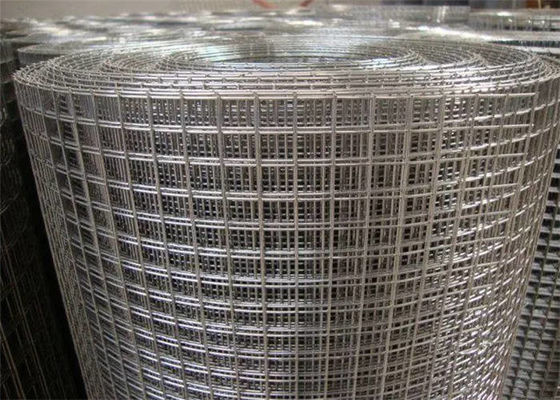

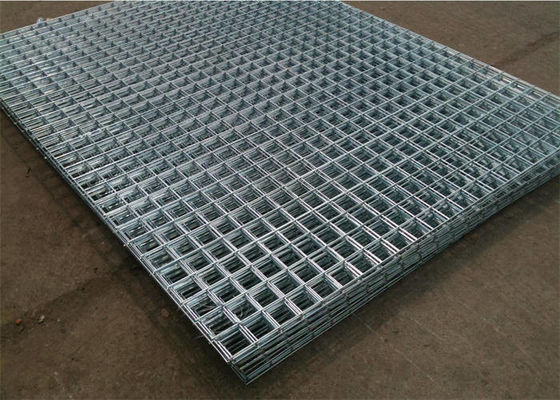

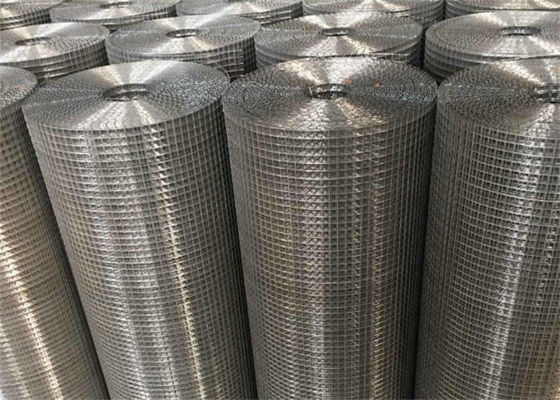

1/2" Galvanized Welded Wire Mesh For Fences And Gates
Along with woven wire mesh, welded wire mesh is one of the two main types of wire cloth products. Welded wire mesh is typically the less expensive of the two materials. It consists of a grid pattern featuring a series of parallel longitudinal wires that are welded together at the point where the wires intersect. The strength and thickness of the weld are determined by factors such as weld pressure, time and temperature. Welded wire mesh can also be bent or cut to form a variety of shapes without causing the wires to come apart
Specification of 1/2" Galvanized Welded Wire Mesh For Fences And Gates
5/8" × 5/8", Wire Gauge 18, 19, 20, 21.
3/4" × 3/4", Wire Gauge 16, 17, 18, 19, 20, 21.
1" × 1/2", Wire Gauge 16, 17, 18, 19, 20, 21.
1-1/2" × 1-1/2", Wire Gauge 14, 15, 16, 17, 18, 19.
1" × 2", Wire Gauge 14,15, 16.
2" × 2", 12, 13, 14, 15, 16.
| Mesh inch | Width length | Weight |
|---|---|---|
| 1/2 | 3 ft. × 50 ft. | 8.25 kg/roll |
| 1/2 | 4 ft. × 50 ft. | 11 kg/coil |
| 1/2 | 5 ft. × 50 ft. | 13.75 kg/coil |
| 1/2 | 6 ft. × 50 ft. | 16.5 kg/coil |
| 3/4 | 3 ft. × 50 ft. | 15 kg/coil |
| 3/4 | 4 ft. × 50 ft. | 20 kg/coil |
| 3/4 | 5 ft. × 50 ft. | 25 kg/coil |
| 3/4 | 6 ft. × 50 ft. | 30 kg/coil |
| 1 | 3 ft. × 50 ft. | 20 kg/coil |
| 1 | 5 ft. × 50 ft. | 30 kg/coil |
| 1 | 4 ft. × 50 ft. | 25 kg/coil |
| 1 | 6 ft. × 50 ft. | 35 kg/coil |
We have the cold zinc galvanized welded wire mesh in large stock as following table:
| Cold zinc welded wire mesh | Cold galvanized welded mesh |
|---|---|
| 25 mm × 12 mm × 0.87 mm × 1 m × 30 m 16.00 kgs | 25 mm × 12 mm × 0.87 mm × 1 m × 30 m 16 kg |
| 12 mm × 12 mm × 0.87 mm × 1 m × 30 m 21.00 kgs | 12 mm × 12 mm × 0.87 mm × 1 m × 30 m 21 kg |
| 25 mm × 25 mm × 0.5 mm × 1 m × 50 m 6.00 kgs | 25 mm × 25 mm × 0.5 mm × 1 m × 50 m 6.00 kg |
| 12 mm × 12 mm × 0.5 mm × 1 m × 30 m 7.00kgs | 12 mm × 12 mm × 0.5 mm × 1 m × 30 m 7.00 kg |
Electro galvanized welded wire meshes are mostly used in construction for the buildings materials, floor concrete, reinforcement mesh and so on. The solid structure give the advantages.
Advantages of 1/2" Galvanized Welded Wire Mesh For Fences And Gates
1. Strong Welded point
2. Standard Size
3. Uniform Hole Size
4. Surface Smooth,clear,bright
5. Long uselife
6. Strong Packing way
7. Easy Ship and store
Application of 1/2" Galvanized Welded Wire Mesh For Fences And Gates
Fences and gates
Architectural uses such as building facades
Architectural Wire Mesh for Green Building Design
Infill panels for railings and divider walls
Animal control
Screens for doors and windows
Machine guards
Shelving and partitions
Behind-the-scenes use in plumbing, walls and ceilings
Gardens to keep bugs away from their plants and vegetables
Agriculture
