Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Wire Mesh | Key Words: | PVC Coated Welded Wire Mesh Rolls |
|---|---|---|---|
| Wire Gauge: | 0.5mm-14mm | Width: | 0.5m-2m |
| Apreture: | 2 | Packing: | Waterproof Paper,Pallet,In Roll |
| Material: | Low Carbon Steel Wire | Port: | Tianjin |
| Business Type: | Factory | Weave Technique: | Welded |
| Production Capacity: | 2000rolls/Day | Mesh Size: | 1/4 |
| Mesh: | 1-3200mesh | Hole Shape: | Square |
| Size: | 1.2x15meters | Shape: | According To Drawing |
| Highlight: | PVC Coated Welded Wire Mesh Rolls,Architectural Welded Wire Mesh,Building Architectural Wire Mesh |
||

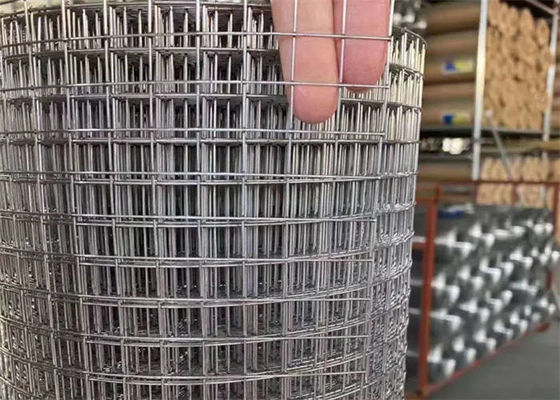

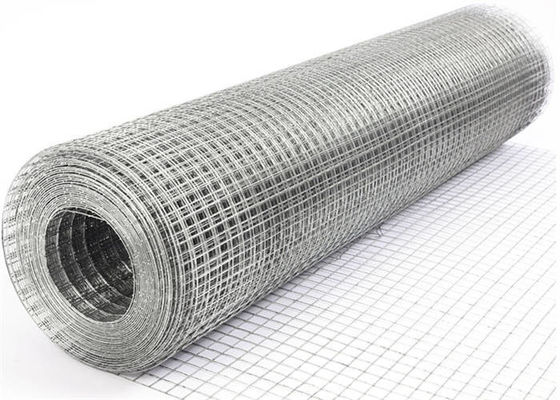

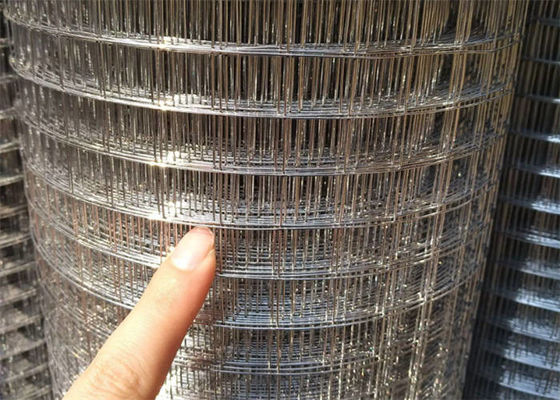

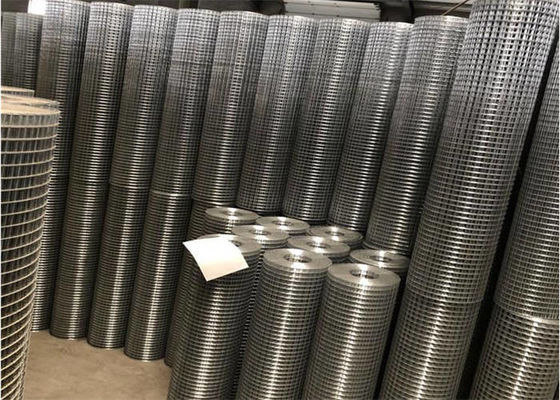

1/4 Inch PVC Coated Welded Wire Mesh Rolls , Architectural Wire Mesh For Green Building
Welded wire cloth is also easier to work with than many other types of metal materials. Welded wire fabric is quick and simple to install and is not easily displaced by workers laying concrete. The ease of use can reduce completion time and help projects remain on budget. Faster construction time also minimizes the exposure of building components to the elements, resulting in higher-quality work.
You’ll be able to complete more work with less field labor, which frees up manpower, material, equipment, and resources for other areas of your project.
PVC coated welded wire mesh is used as fences, decoration and machinery guard in various industries, agriculture, mine developing, sports field, breeding and transport. And vinyl-coated welded wire mesh is suitable to be used for tomato cages.
Colors: Green, black, yellow, blue, white or other colors at customers request.
The specification of 1/4 Inch PVC Coated Welded Wire Mesh Rolls , Architectural Wire Mesh For Green Building
| Mesh size | Wire gauge diameter | ||
|---|---|---|---|
| in mm | in inch | BWG No. | mm |
| 6.4 | 1/4 | 24-22 | 0.56- 0.71 |
| 9.5 | 3/8 | 23-19 | 0.64 - 1.07 |
| 12.7 | 1/2 | 22-16 | 0.71 - 1.65 |
| 15.9 | 5/8 | 21-16 | 0.81 - 1.65 |
| 19.1 | 3/4 | 21-16 | 0.81 - 1.65 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81 - 1.65 |
| 25.4 | 1 | 21-14 | 0.81 - 2.11 |
| 38.1 | 1 1/2 | 19-14 | 1.07 - 2.11 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47 - 2.11 |
| 50.8 | 2 | 16-12 | 1.65 - 2.77 |
| 50.8 to 305 | 2 to 12 | ||
GI square wire mesh specification:
| Mesh | Width length | Weight |
|---|---|---|
| 16 × 16 | 3 ft. × 100 ft. | 24.75 kg/roll |
| 16 × 16 | 4 ft. × 100 ft. | 33 kg/coil |
| 16 × 16 | 4 ft. × 100 ft. | 41.25 kg/coil |
| 16 × 16 | 5 ft. × 100 ft. | 18 kg/coil |
| 40 × 40 | 1 mtr × 100 ft. | 20 kg/coil |
Advantages of 1/4 Inch PVC Coated Welded Wire Mesh Architectural Wire Mesh For Green Building
1. Strong Welded point
2. Standard Size
3. Uniform Hole Size
4. Surface Smooth,clear,bright
5. Long uselife
6. Strong Packing way
7. Easy Ship and store
Application of 1/4 Inch PVC Coated Welded Wire Mesh Architectural Wire Mesh For Green Building
Fences and gates
Architectural uses such as building facades
Architectural Wire Mesh for Green Building Design
Infill panels for railings and divider walls
Animal control
Screens for doors and windows
Machine guards
Shelving and partitions
Behind-the-scenes use in plumbing, walls and ceilings
Gardens to keep bugs away from their plants and vegetables
Agriculture
