Anping Win Win Wire Mesh Manufacturing Co., Ltd
Product Details:
Payment & Shipping Terms:
|
Name: | Hot Dip Galvanized Barbed Wire | Key Words: | Barbed Wire,iron Barbed Wire,Razor Wire |
---|---|---|---|
Surface: | Galvainzed,hot Dipped Galvanized | Feature: | Protection Performance |
Hole Shape: | Barbed Wire | Installation: | Easy To Install With Fencing Tools |
Surface Treatment: | Galvanized | Type: | Barbed Wire Coil |
Material: | Iron Wire | Application: | Protection,military Sentry Defence,construction And So On,Barrier |
Packing: | As Your Requirements | Barb Length: | 1.5-3.0cm |
Color: | Silver,blue,Requirement,grey,Green | Wire Diameter: | 1.6-3.2mm |
Barb Distance: | 7.5cm-15cm | Usage: | Preserve,army,Garden Fence,residential,wall Fence Etc |
Highlight: | Fence Barb Wire Roll,Galvanized Barb Wire |

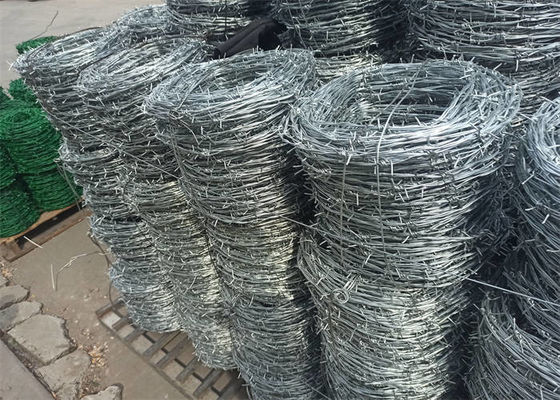

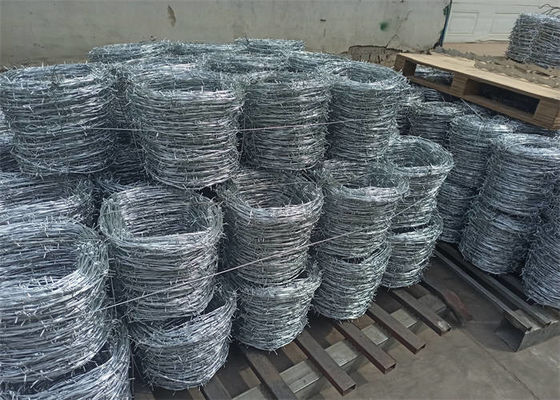

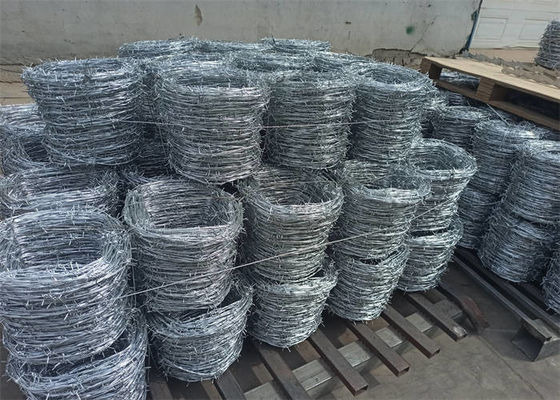

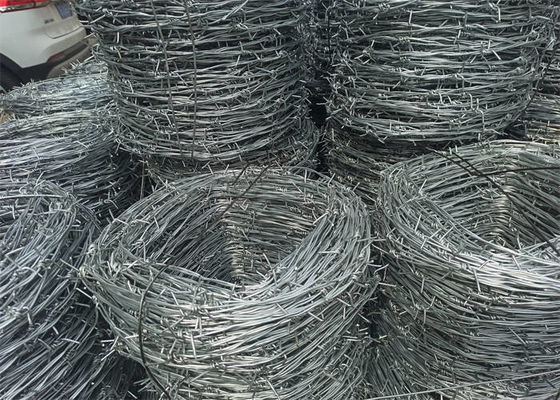

Hot Dip Galvanized Barb Wire Roll Anti Acid / Alkali For Wire Mesh Fence
Barbed wire, fence wire usually consisting of two longitudinal wires twisted together to form cable and having wire barbs wound around either or both of the cable wires at regular intervals.
Galvanized/PVC Coated Barbed Wire offers a great protection against corrosion and oxidation caused by the atmosphere. Hot-dip galvanizing
is stronger than electro-galvanizing.
Features of Hot Dip Galvanized Barb Wire Roll Anti Acid / Alkali For Wire Mesh Fence
1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation and uninstallation.
8) Easy to maintain.
9) Durable and long service life.
Applications of Hot Dip Galvanized Barb Wire Roll Anti Acid / Alkali For Wire Mesh Fence
Used in farms and ranch for rearing livestock. It is an alternative to the woven wire field fence and electric fence. Different spec and structure can keep your cattle, horse and other livestock in the area and prevent them from walking or climbing out of the pens.
Barbed wire used for security application.
Barbed wires can be used individually to form the barbed wire fence on the highway, railway and other dangerous places to protect site and people' safe.
It can also be attached onto various wire mesh fences to improve the security factor of the site, such as prison, factory, military sites, airport and other places.
Specification of Hot Dip Galvanized Barb Wire Roll Anti Acid / Alkali For Wire Mesh Fence
Item | Steel wire gauge | Nominal diameter | Minimum weight of coating oz/ft2 (g/m2) |
||
---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | ||
ZCBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) |
ZCBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230) |
ZCBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) |
ZCBW-04 | 13/3/4 | 0.083 | 2.11 | n/a | 0.70 (215) |
ZCBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) |
ZCBW-06 | 15/1/2 | 0.067 | 1.70 | n/a | 0.65 (200) |
ZCBW-07 | 16-1/2 | 0.058 | 1.47 | n/a | 0.60 (200) |
Item | Steel wire gauge | Nominal wire diameter | Minimum weight of coating Oz/ft2) (g/m2) | |||
---|---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | Class 60 | ||
ZACBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) | 0.60 (183) |
ZACBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230). | 0.60 (183) |
ZACBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-04 | 13-3/4 | 0.083 | 2.11 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-06 | 15-1/2 | 0.067 | 1.70 | 0.20 (61) | 0.65 (198) | n/a |
ZACBW-07 | 16-1/2 | 0.058 | 1.47 | 0.20 (61) | 0.60 (183) | n/a |
Item | Model (line wire × barb wire) |
Approximate length per kilogram (m) | |||
---|---|---|---|---|---|
Barb spacing 3" | Barb spacing 4" | Barb spacing 5" | Barb spacing 6" | ||
BWCS-01 | 12 × 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
BWCS-02 | 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
BWCS-03 | 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
BWCS-04 | 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
BWCS-05 | 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
BWCS-06 | 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
BWCS-07 | 13-1/2 × 14 | 9.6079 | 10.6134 | 11.4775 | 11.8553 |
BWCS-08 | 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
BWCS-08 | 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
BWCS-10 | 15 × 15 | 13.8927 | 15.4945 | 16.6666 | 17.5070 |
BWCS-11 | 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
