Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Double Twist Barbed Wire | Key Words: | Barbed Wire,iron Barbed Wire,Razor Wire |
|---|---|---|---|
| Surface: | Galvainzed,Hot Dipped Galvanized | Barb Distance: | 7.5cm-15cm |
| Feature: | Protection Performance | Hs Code: | 7313000000 |
| Material: | Galvanized Steel | Application: | Protection,military Sentry Defence,construction And So On,Barrier,prison |
| Packing: | As Your Requirements | Barb Length: | 1.5-3.0cm |
| Color: | Silver,blue,Requirement,grey,Green | Wire Diameter: | 1.6-3.2mm |
| Usage: | Preserve,army,Garden Fence,residential,wall Fence Etc | Wire Dia: | Usually Size From 1.4mm - 2.5mm |
| Sample: | Free | Coil Diameter: | 360-1000mm |
| Barbed Space: | 6-15mm | ||
| Highlight: | Double Twist Barbed Wire,Galvanised Barbed Wire,Double Strand Barbed Wire |
||

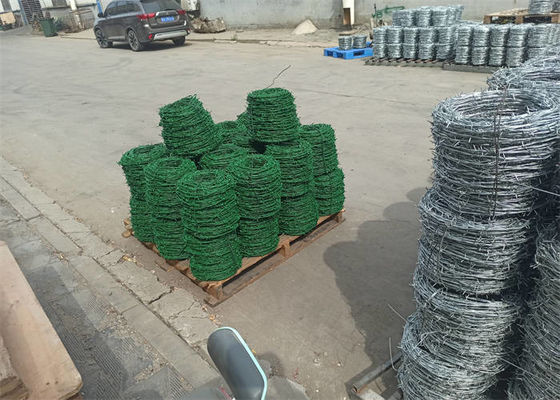

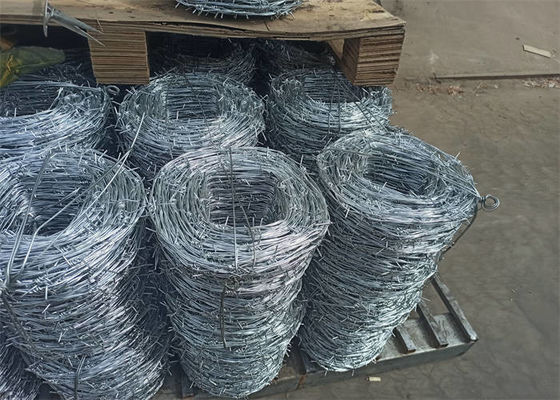

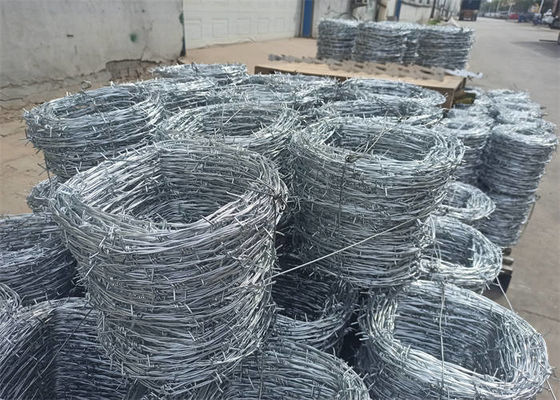

Traditional Double Twist Barbed Wire Galvanized Steel Material Protection Performance
Widely used in industry, agriculture, construction, transport, Stadium, lawn, aquaculture.
Barbed wire is manufactured by galvanized wire or PVC coated galvanized wire in IOWA type, with 2 strands, 4 points. Barbed distance is 3 - 6 inches.
We has devoting ourselves to producing and trading for 10 years,eatablishing a good relationship with the company of US,Canada,Mid easten and so on.
Type
Electro Galvanized Barbed Wire
Hot-dipped zinc plating barbed wire

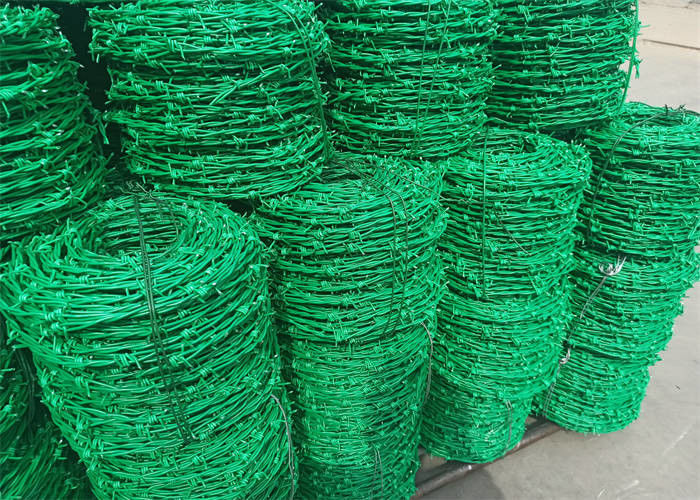

PVC coated barbed wire
PE coated barbed wire
Double strand double twisted barbed wire
Double strand common twisted barbed wire
Features of Traditional Double Twist Barbed Wire Galvanized Steel Material Protection Performance
High quality can supply stability and rigidity for the barbed wire.
High strength of barbed wire can secure cattle, horse and other livestock in the area.
Sharp edge frightens intruders and thieves.
Single or double strand for different budget and security grade.
Galvanized and other anti-corrosive material for excellent corrosion and rust resistance and durable life.
PVC coated surface can supply various colors for your choice.
Completed accessories for easy and convenient installation and uninstallation.
Various packages for safe and convenient loading, transporting and using.
Painted on barbs for visible and warning view. The color can be green, red or any other you want.
Applications of Traditional Double Twist Barbed Wire Galvanized Steel Material Protection Performance
Used in farms and ranch for rearing livestock. It is an alternative to the woven wire field fence and electric fence. Different spec and structure can keep your cattle, horse and other livestock in the area and prevent them from walking or climbing out of the pens.
Barbed wire used for security application.
Barbed wires can be used individually to form the barbed wire fence on the highway, railway and other dangerous places to protect site and people' safe.
It can also be attached onto various wire mesh fences to improve the security factor of the site, such as prison, factory, military sites, airport and other places.
Specification of Traditional Double Twist Barbed Wire Galvanized Steel Material Protection Performance
| Item | Steel wire gauge | Nominal diameter | Minimum weight of coating oz/ft2 (g/m2) |
||
|---|---|---|---|---|---|
| in. | mm | Class 1 | Class 3 | ||
| ZCBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) |
| ZCBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230) |
| ZCBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) |
| ZCBW-04 | 13/3/4 | 0.083 | 2.11 | n/a | 0.70 (215) |
| ZCBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) |
| ZCBW-06 | 15/1/2 | 0.067 | 1.70 | n/a | 0.65 (200) |
| ZCBW-07 | 16-1/2 | 0.058 | 1.47 | n/a | 0.60 (200) |
| Item | Steel wire gauge | Nominal wire diameter | Minimum weight of coating Oz/ft2) (g/m2) | |||
|---|---|---|---|---|---|---|
| in. | mm | Class 1 | Class 3 | Class 60 | ||
| ZACBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) | 0.60 (183) |
| ZACBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230). | 0.60 (183) |
| ZACBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
| ZACBW-04 | 13-3/4 | 0.083 | 2.11 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
| ZACBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
| ZACBW-06 | 15-1/2 | 0.067 | 1.70 | 0.20 (61) | 0.65 (198) | n/a |
| ZACBW-07 | 16-1/2 | 0.058 | 1.47 | 0.20 (61) | 0.60 (183) | n/a |
| Item | Model (line wire × barb wire) |
Approximate length per kilogram (m) | |||
|---|---|---|---|---|---|
| Barb spacing 3" | Barb spacing 4" | Barb spacing 5" | Barb spacing 6" | ||
| BWCS-01 | 12 × 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| BWCS-02 | 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| BWCS-03 | 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| BWCS-04 | 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| BWCS-05 | 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| BWCS-06 | 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| BWCS-07 | 13-1/2 × 14 | 9.6079 | 10.6134 | 11.4775 | 11.8553 |
| BWCS-08 | 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| BWCS-08 | 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| BWCS-10 | 15 × 15 | 13.8927 | 15.4945 | 16.6666 | 17.5070 |
| BWCS-11 | 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
