Product Details:
Payment & Shipping Terms:
|
Name: | Zinc Coated Barbed Wire | Key Words: | Barbed Wire,iron Barbed Wire,Razor Wire |
---|---|---|---|
Color: | Silver | Razor Barbed Type: | Barbed Wire |
Barb Distance: | 7.5cm-15cm | Feature: | Protection Performance |
Material: | Galvanized Steel | Hole Shape: | Barbed Wire |
Installation: | Easy To Install With Fencing Tools | Packing: | As Your Requirements |
Barb Length: | 1.5-3.0cm | Wire Diameter: | 1.6-3.2mm |
Usage: | Preserve,army,Garden Fence,residential,wall Fence Etc | Surface: | Galvainzed,hot Dipped Galvanized,pvc Coated |
Wire Dia: | Usually Size From 1.4mm - 2.5mm | Sample: | Free |
Coil Diameter: | 360-1000mm | Barbed Space: | 6-15mm |
Highlight: | Zinc Coated Barbed Wire,Silver Barbed Wire,Galvanized Razor Wire |

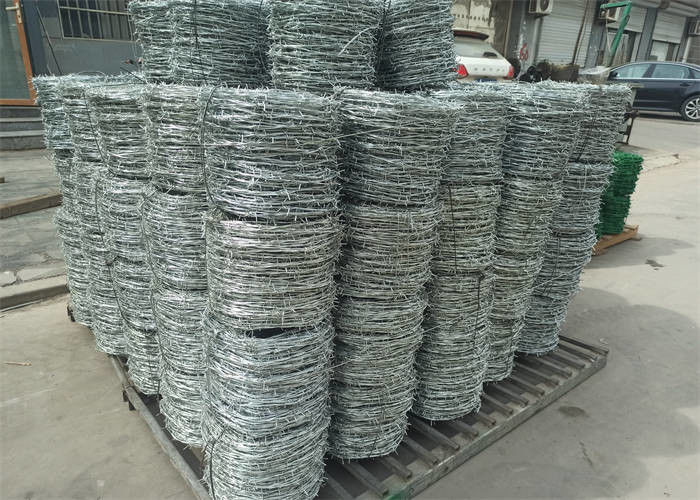

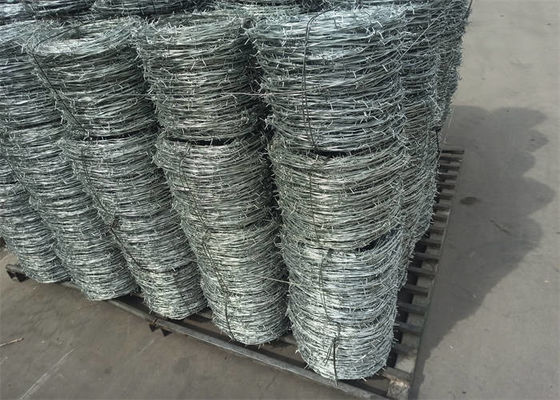

Silver Zinc Coated Barbed Wire , Galvanized Razor Wire High Strength
Barb structure of barbed wire
Barbs are very important for the barbed wire. The strong barbs with sharp points can resist bending. It can frighten and defend thieves and intruders. They can also contain your animals and livestock safely in your farm or ranching. The barb can be single or double wires for different applications.
Single barb. Also known as 2-point barbed wire. It is contains single barb wire twisted on the line wire. The single barb wires is used in the common applications. Or if your farms or pens has enough space for rearing animal or livestock, you can choose the single barb (2-point) barbed wire.
Double barbs. It is also called 4-point barbed wire. Use two barb wires twisted together onto the line wire. It can supply greater hurt factor for your sites or ranching. It is widely used in the heavy duty applications. Or if your farms or ranches has a herd pressure, you can choose the 4-point barbed wire.
Features of Silver Zinc Coated Barbed Wire , Galvanized Razor Wire High Strength
High quality can supply stability and rigidity for the barbed wire.
High strength of barbed wire can secure cattle, horse and other livestock in the area.
Sharp edge frightens intruders and thieves.
Single or double strand for different budget and security grade.
Galvanized and other anti-corrosive material for excellent corrosion and rust resistance and durable life.

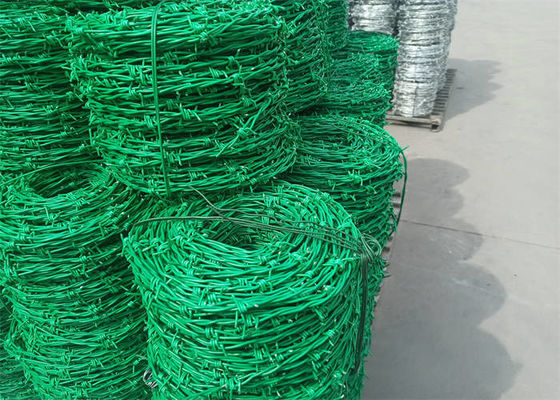

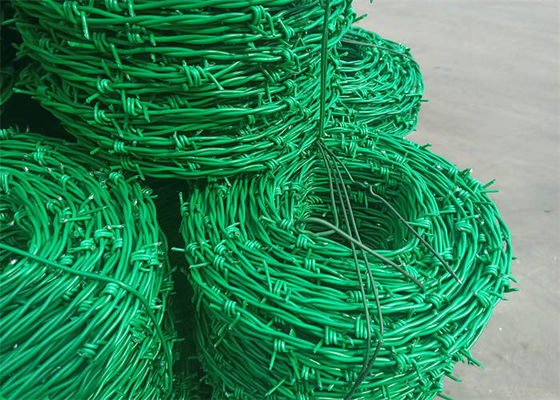

PVC coated surface can supply various colors for your choice.
Completed accessories for easy and convenient installation and uninstallation.
Various packages for safe and convenient loading, transporting and using.
Painted on barbs for visible and warning view. The color can be green, red or any other you want.
Applications of Silver Zinc Coated Barbed Wire , Galvanized Razor Wire High Strength
Used in farms and ranch for rearing livestock. It is an alternative to the woven wire field fence and electric fence. Different spec and structure can keep your cattle, horse and other livestock in the area and prevent them from walking or climbing out of the pens.
Barbed wire used for security application.
Barbed wires can be used individually to form the barbed wire fence on the highway, railway and other dangerous places to protect site and people' safe.
It can also be attached onto various wire mesh fences to improve the security factor of the site, such as prison, factory, military sites, airport and other places.
Specification of Silver Zinc Coated Barbed Wire , Galvanized Razor Wire High Strength
Item | Steel wire gauge | Nominal diameter | Minimum weight of coating oz/ft2 (g/m2) |
||
---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | ||
ZCBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) |
ZCBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230) |
ZCBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) |
ZCBW-04 | 13/3/4 | 0.083 | 2.11 | n/a | 0.70 (215) |
ZCBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) |
ZCBW-06 | 15/1/2 | 0.067 | 1.70 | n/a | 0.65 (200) |
ZCBW-07 | 16-1/2 | 0.058 | 1.47 | n/a | 0.60 (200) |
Item | Steel wire gauge | Nominal wire diameter | Minimum weight of coating Oz/ft2) (g/m2) | |||
---|---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | Class 60 | ||
ZACBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) | 0.60 (183) |
ZACBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230). | 0.60 (183) |
ZACBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-04 | 13-3/4 | 0.083 | 2.11 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-06 | 15-1/2 | 0.067 | 1.70 | 0.20 (61) | 0.65 (198) | n/a |
ZACBW-07 | 16-1/2 | 0.058 | 1.47 | 0.20 (61) | 0.60 (183) | n/a |
Item | Model (line wire × barb wire) |
Approximate length per kilogram (m) | |||
---|---|---|---|---|---|
Barb spacing 3" | Barb spacing 4" | Barb spacing 5" | Barb spacing 6" | ||
BWCS-01 | 12 × 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
BWCS-02 | 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
BWCS-03 | 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
BWCS-04 | 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
BWCS-05 | 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
BWCS-06 | 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
BWCS-07 | 13-1/2 × 14 | 9.6079 | 10.6134 | 11.4775 | 11.8553 |
BWCS-08 | 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
BWCS-08 | 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
BWCS-10 | 15 × 15 | 13.8927 | 15.4945 | 16.6666 | 17.5070 |
BWCS-11 | 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
