Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Serrated Surface Bar Grating | Key Words: | Bar Grating |
|---|---|---|---|
| Width: | 0.1-2m | Standard Type: | 1m×6m |
| Shape: | According To Drawing | Panel Size: | 1000x6000mm |
| Specification: | 19-w-4, 15-w-2, 30/100, 40/50 | Finish: | H.D Galvanized / Powder Coated |
| Grating Surface Treatment: | Hot Dip Galvanized | Bearing Bar Type: | Serrated |
| Usage: | Construction | Package: | In Bundle Or As Yours |
| Feature: | Light Weight, Durable | Advantage: | Easy Installation, Anti-Corrosion, Etc |
| Bearing Bar Spacing: | 30mm | Manufacture: | Factory |
| Highlight: | Press Locked Steel Grating,Press Locked Bar Grating,Serrated Surface Bar Grating Manufacturers |
||

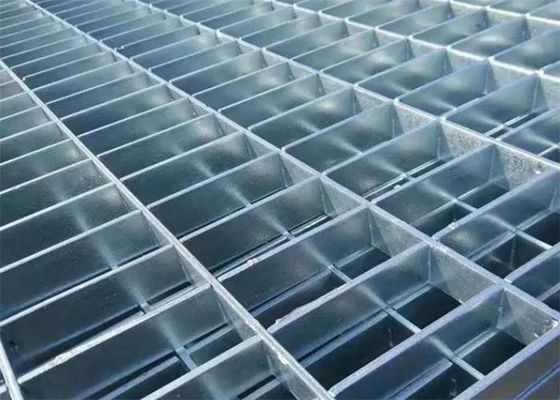

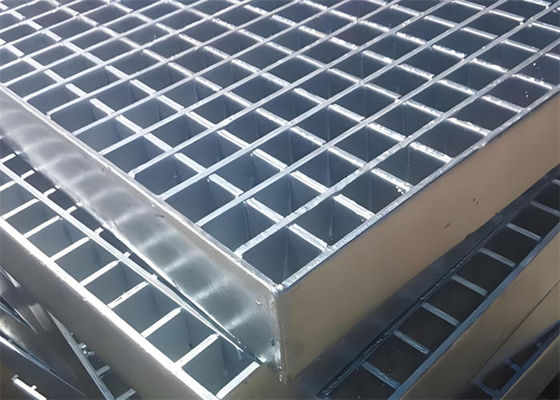

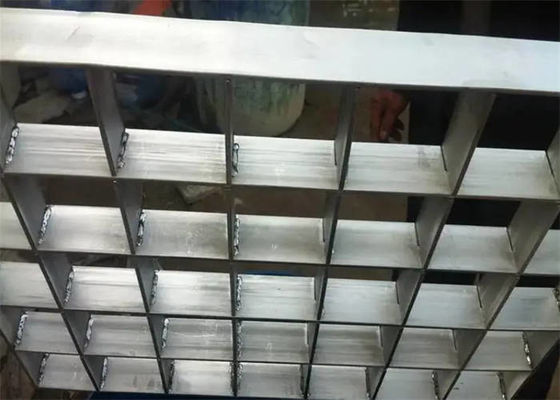

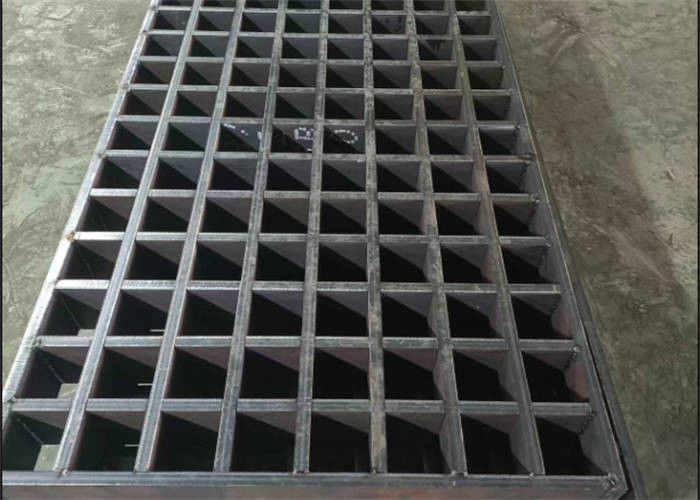

Press Locked Steel Grating , Serrated Surface Bar Grating Manufacturers
Press-locked steel grating also can be called pressure locked grating, it is made of low carbon steel or stainless steel. With the performance of high bearing capacity, non-slip, anti-corrosion and easy to install and remove, pressure locked grating is widely used for ceilings, platforms, floors, fence and all kinds of cover in the factories, civil and commercial buildings.
Two press-locked steel grating with different mesh sizes which people often use: 33 mm × 33 mm, 33 mm × 11 mm.
Classification of serrations:
Materials: low carbon steel and stainless steel.
Surface treatment: galvanized, painted or powder coated.
Surface type: smooth surface and serrated surface
Serrated surface type:
1: Trapezoidal teeth on the bearing bar.
2: Trapezoidal tooth both on the bearing bar and cross bar with the highest non-slip performance. In this three types. it is most popular.
3: The non-slip tooth is applied to the connect components. It has the lowest non-slip performance.
Types of press-locked steel grating by insertion angles and insertion modes.
According to the different insertion angles and insertion modes, it can be divided into four types: common type, integral type, heavy duty steel grating and louver steel grating.
Features of Press Locked Steel Grating
High strength and load capacity.
Anti-slip surface.
Corrosion resistance.
Good drainage function.
Easy to install and maintain.
Applications of Press Locked Steel Grating
Platform services in industrial and energy construction.
Walkway of bridges and transitions.
Shelf of factory and supermarket.
Ceiling of factory, house and hall.
Gully and well cover of street and huge yard.
Fence of balcony, factory and playground.
Floor of many places.
Specifications of Press Locked Steel Grating
| Type | Plain / Smooth, Serrated /teeth, I bar, serrated-I bar |
| Load /Bearing bar size | 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc. |
| Load /Bearing bar pitch | 12.5,15,20,25,30,35,40,50mm |
| Transverse /Cross bar pitch | 38,50,80,100mm |
| Material | Low carbon steel, stainless steel, aluminum alloy |
| Surface treatment | Untreated, hot galvanized, painting,electro galvanized |
|
Grating Standard |
China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS 4592-1987 Australia: AS 1657-1985 |
|
Material standard |
China: GB 700-88 UK: BS 4360:1990 USA: ASTM A36/A36M-96 AUSTRALIA: AS 3679 |
|
HDG standard |
CHINA: GB/T13912-2002 UK: BS729 USA: ASTM A123/A123M-97a AUSTRALIA: AS 1650 |
