Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Large Image : Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-00012

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sheets
Price:	Negotiable
Packaging Details:	In Pallet or In Bulk
Delivery Time:	According to order quantity
Payment Terms:	L/C, T/T
Supply Ability:	1000 Sheets/Week

Contact Now

Detailed Product Description

Product Name:	Architectural Metal Mesh	Key Words:	Decorative Wire Mesh
Cable Structures:	77 719	Wire Constructions:	7 X 7 , 7 X 19
Sheet Size:	Customized In Width And Length	Mesh Material:	304 316 316L Stainless Steel
Application:	Decorative Wire Mesh	Material:	Stainless Steel Wire
Technique:	Woven	Type:	Weave Wire Mesh
Weave Style:	Dutch Weave	Color:	Silver,COPPER,yellow,white
Usage:	Home Decoration	Hole Shape:	Round And Hexgonal Shape
Feature:	Corrosion Resistance
Highlight:	Stainless Steel Architectural Wire Mesh , Giant Shuttle Stainless Steel Architectural Mesh , Architectural Metal Mesh

Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Architectural Woven Drapery also called H-Type Cable and Rod Combination Mesh. The mesh woven from different material, such as stainless steel, brass, copper, etc. It has strong durability, good corrosion resistance, and excellent flexibility. It is widely used in building exterior wall shading, stair handrails, and garage door curtain, etc.
Stainless steel architectural woven drapery is standard and the most common type for decorating project. It can be made in different colors by different surface treatment such as powder coating, titanium coating, electroplated gold, etc.

Specification of Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Items	Cables		Rods		Open Area		Weight Kgs/m2
Items	Nos. x D1 (mm)	P1 (mm)	D2 (mm)	P2 (mm)	mm	%	Stainless Steel	Copper
1	3 x 3.0	110.0	4.0	14.5	5 100.0 x 10.5	66	8.60	9.72
2	3 x 4.0	112.0	4.0	8.0	100.0 x 4.0	46	12.60	15.37
3	3 x 2.0	80.0	3.0	20.0	74.0 x 17.0	78	5.40	6.10
4	3 x 2.0	80.0	3.0	10.0	74.0 x 7.0	78	6.65	7.51
5	3 X 2.2	80.0	2.5	10.0	73.6 x 7.0	64	7.00	7.91
6	3 x 1.6	72.0	2.0	10.0	75.2 x 7.5	70	4.58	5.18
7	4 x 1.0	50.0	3.0	7.0	68.0 x 5.0	67	3.98	4.50
8	4 x 2.0	40.0	4.0	6.0	42.0 x 3.0	42	11.2	12.66
9	2 x 2.75	36.0	2.0	14.5	34.5 x 10.5	62	9.40	10.62
10	4 x 1.0	36.0	2.0	6.6	32.0 x 4.6	62	4.55	5.14
11	4 x 1.0	35.0	1.6	4.0	32.0 x 2.0	44	6.89	7.78
12	4 x 0.75	26.4	1.5	3.5	32.0 x 2.0	50	4.80	5.42
13	4 x 0.75	13.5	1.5	3.0	23.4 x 1.5	44	5.20	5.42
14	4 x 0.75	7.5	2.0	3.5	21.5 x 2.0	50	4.30	4.86
15	2 x 2.75	6.8	2.5	10	0 8.0 x 8.0	47	7.65	8.64
16	1 X 1.75	6.0	2.0	8.2	5.75 x 5.7	53	6.85	7.74
17	1 X 2.6	6.0	2.0	7.5	4.2 x 5.5	45	6.60	7.46
18	1 x 2.5	6.0	2.0	8.0	0 3.5 x 6.0	43	7.87	8.89
19	1 x 2.4	5.0	3.0	6.0	3.6 x 4.0	40	8.90	10.06
20	1 x 2.4	5.0	3.0	6.0	0 3.6 x 3.0	30	14.60	16.50
21	1 x 3.0	5.0	3.0	10.0	0 2.0 x 7.0	28	14.80	16.72
22	1 x 1.8	4.0	1.5	5.5	2.2 x 4.0	40	7.74	8.75
23	3 X 0.45	3.5	0.5	1.6	6 2.25 x 1.1	43	2.10	2.37
24	1 x 1.8	3.0	2.0	5.0	0 1.2 x 3.0	24	9.97	11.27

Advantages of Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Longevity - Acid, Alkali and Corrosion resistance.
Durability - fire, heat and impact resistance.
Environment friendly - It can be recycled.
Variety - It can be custom made.

Application of Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh

Cable rod woven mesh is made from high quality raw material in vertical, bar in horizontal. Baking processes the metal color into a variety of rich colors.
Cable rod woven mesh are most used in building elevation, divider, ceiling, balconies and corridors, shutter, staircases and airport access stations, hotels, museums, opera houses, concert halls, office buildings, exhibition halls, shopping malls and other places.

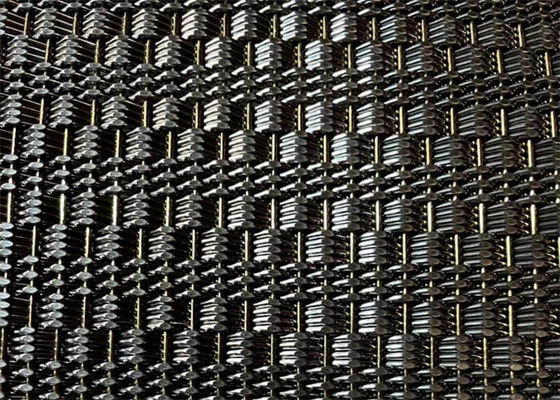

Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh 1

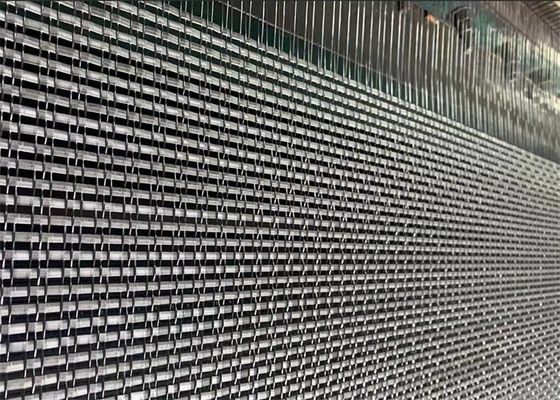

Stainless Steel Architectural Wire Mesh H Type Cable And Rod Combination Mesh 2
