Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Rope Mesh | Key Words: | Architectural Steel Mesh |
|---|---|---|---|
| Sheet Size: | Customized In Width And Length | Mesh Material: | 304 316 316L Stainless Steel |
| Color: | Silver | Sample: | A4 Size For Free |
| Size Of Hole: | 25*25mm-300*300mm | Feature: | Corrosion Resistance,anti-rust,durable |
| Cable Structure: | 7x19 | Advantage: | Anti-corrosion, Long Using Time |
| Shape: | Square, Rectangle, Circle, Etc. | Flow Of Production: | 100% Hand Made |

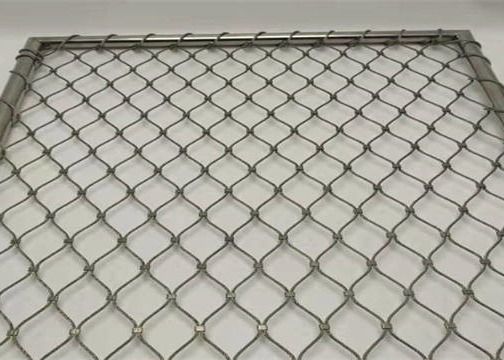

| Frame Design: | Support | Installation: | Hanging/Frame Mounting |
| Materials: | AISI 304 / 316 Etc. | Wire Rope: | 2.5 Mm To 4.0 Mm |
| Mesh Shape: | Rhombus , Diamond | ||
| Highlight: | Stainless Steel Architectural Steel Mesh,Knotted Type Architectural Steel Mesh,316 Stainless Steel Rope Mesh |
||
316 Stainless Steel Rope Mesh Knotted Type Architectural Steel Mesh

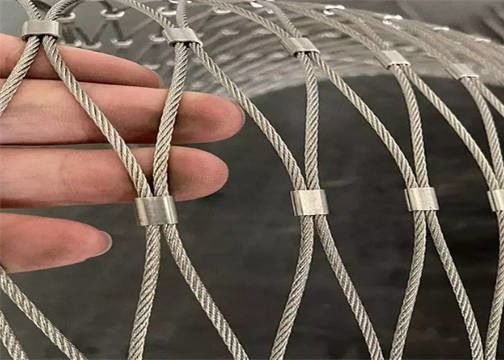

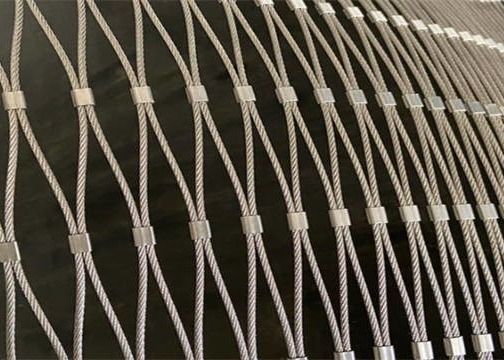

Architectural rope mesh made from stainless steel 304, 316 and 316L. The angle is usually 60°. Other angel also we can made according request. The stainless steel rope mesh has a unique decorative style and more strong security. The diamond hole pattern makes the mesh strong and flexible. Different opening sizes can be customized to meet the different needs of customers. Widely used for zoo,The rope mesh are hand-made from the stainless steel wire rope, there are two types.
Specification of 316 Stainless Steel Rope Mesh Knotted Type Architectural Steel Mesh
The type of stainless steel rope mesh

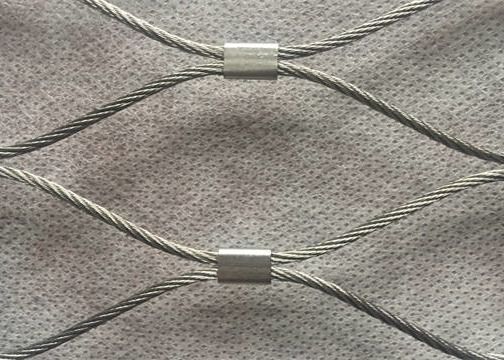

| Type | Knotted cable mesh | Ferrule cable mesh |
|---|---|---|
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal , Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy | |
| Mesh Aperture Width × Height (mm) |
Wire Rope Diameter (mm) |
Minimum Breaking Load (kN) |
|---|---|---|
| 25x40 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 30x50 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 35x60 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 40x70 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 50x88 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 5.0 | 15.9 |
| Mesh Aperture Width × Height (mm) |
Wire Rope Diameter (mm) |
Minimum Breaking Load (kN) |
|---|---|---|
| 25x25 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 30x30 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 40x40 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 50x50 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 60x60 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 2.4 | 3.4 | |
| 3 | 5.7 | |
| 75x75; 90x90 100x100;120x120 |
1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 2.4 | 3.4 | |
| 3 | 5.7 | |
| 4 | 10.1 |
Features of 316 Stainless Steel Rope Mesh Knotted Type Architectural Steel Mesh
Light weight and high flexibility.
High strength, resistant to fatigue and impact.
Good softness.
Excellent rust-resistance, recyclable and durable.
Outstanding perspectivity and grand appearance.
Maintenance-free and environmentally friendly.
Application of 316 Stainless Steel Rope Mesh Knotted Type Architectural Steel Mesh
Stainless steel rope net products are used in animal cages, bird nets, animal fences and garden decorations in zoos, marine parks and other similar environments, parks, community protection, doors and windows, etc., and can also be applied to building reinforcement, lifting goods, car sealing and capping, high-grade decoration, sports, acrobatics, home decoration, architectural decoration, fence, also used in mine support, slope protection, security burglar, etc.
