Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Galvanized Gabion Box Solid Structure Reinforced Gabion Baskets | Keyword: | Gabion Box |
|---|---|---|---|
| Processing Service: | Cutting | Installation: | Easy To Assemble And Disassemble |
| Advantages: | Economical | Cetification: | ISO |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Hight: | 1.5m |
| Port: | Tianjin | Mesh: | Hexagonal Shape |
| Selvage Wire: | 3.0-4.0mm | Package: | Wooden Pallets |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m | Wire Diamater: | 3mm~6mm Or Custom |
| Net Type: | Greenhouses Plastic Sun Shade Net | Sample: | Free Sample To Confirm Quality |
| Highlight: | Galvanized Gabion Box,Heavy Gabion Box,Gabion Baskets For Erosion Control |
||

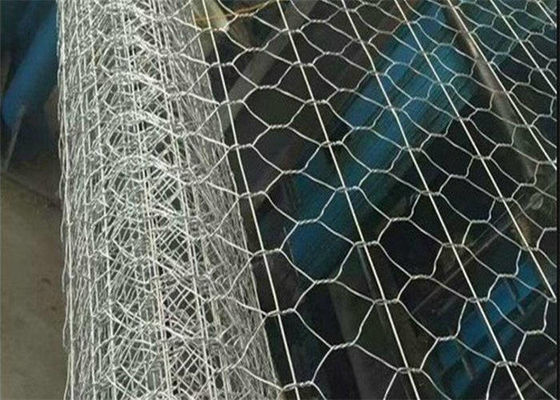

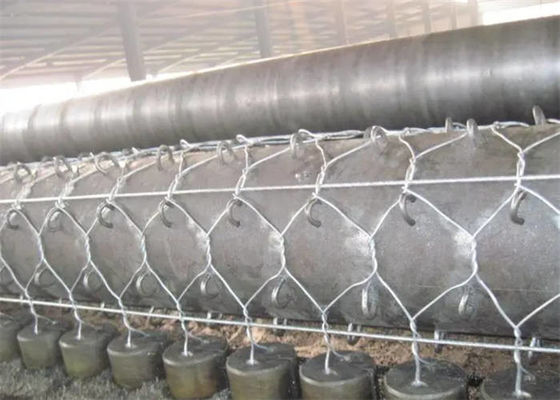

Reinforced gabion is an advanced products of double twisted woven gabion meshes, which are added parallel reinforced steel wires on every other meshes. It can increase the tensile strength and loading capacity of meshes significantly.
The selvedges of the gabion baskets are the thicker perimeter and edge wires to which the wire mesh is secured as to withstand sudden or gradual stress from any direction. Reinforcing wires are the thicker wires incorporated into the netting during fabrication. The internal diaphragms are the internal wire mesh partitions which divide the gabions into cells. Lacing or tie wire is used to assemble and join the gabion units. Connecting wires are the internal wire used to prevent the gabions from bulging. Alternative wire fasteners are ASTM approved wire fasteners used in lieu of lacing.
Standard Specification of Heavy Galvanized Gabion Box Solid Structure Reinforced Gabion Baskets For Erosion Control
| Mesh Opening (MM) | Steel Wire Diameter (MM) | (PVC Wire)/ Inside diameter/Outer diameter(MM) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.8/3.8 |
| 80X100 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 80X120 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 100X120 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 100X150 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 120X150 | 2.7-4.0 | 2.7/3.7-3.5/4.5 |
Advantages of Heavy Galvanized Gabion Box Solid Structure Reinforced Gabion Baskets For Erosion Control
Flexible and simple structure and can filled with most of the in-situ materials.
High permeability help vegetation grow.
Cost-effective and has a long service life.
High tensile strength and toughness.
Simple installation.
Corrosion and abrasion resistance.
Durable and stable structure.
Applications of Heavy Galvanized Gabion Box Solid Structure Reinforced Gabion Baskets For Erosion Control
Mass gravity retaining structures
Mechanically stabilized earth (MSE) walls
Vegetated slope reinforcement
Slope stabilization
Slope reinforcement
Channel lining and channel relocation
Slope and bank protection
Shore and stream bank protection
Weirs, groins, and jetties
Drop structures
Culvert outlet scour pads and headwalls
Bridge abutments
Erosion control
Cover or lids of woven gabions
Rockfall barriers
Road mesh
river bank
Sloe protection
Erosion control
Channel lining
Retaining wall
Vegetation greening system
