Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Durable Hexagonal Wire Stone Gabion Baskets | Keyword: | Woven Wire Stone Cages |
|---|---|---|---|
| Processing Service: | Cutting | Installation: | Easy To Assemble And Disassemble |
| Advantages: | Economical | Cetification: | ISO |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Hight: | 1.5m |
| Port: | Tianjin | Mesh: | Hexagonal Shape |
| Selvage Wire: | 3.0-4.0mm | Package: | Wooden Pallets |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m | Wire Diamater: | 3mm~6mm Or Custom |
| Net Type: | Greenhouses Plastic Sun Shade Net | Sample: | Free Sample To Confirm Quality |
| Highlight: | Durable Gabion Baskets,Stone Gabion Baskets,Woven Wire Stone Cages |
||

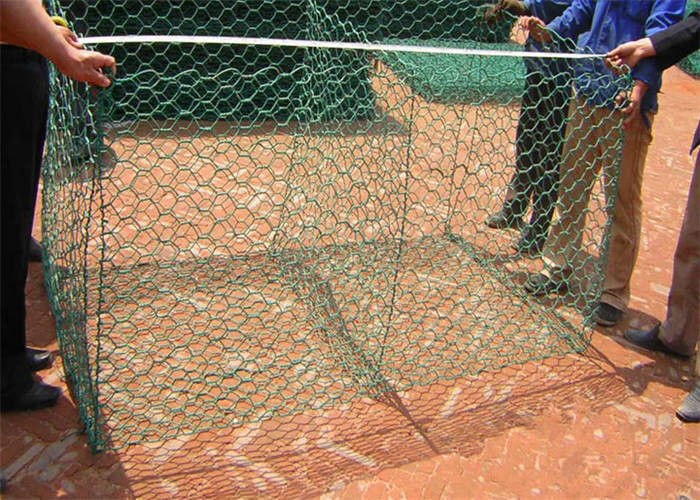

Gabions are fabricated in such a manner that the sides, ends, lid and diaphragms can be assembled at the construction site into rectangular baskets of the sizes specified and shown in the drawing. Gabions are of a single unit construction, in which the base, lid, ends, and sides are either woven into a single unit or the edge of these members connect to the base section of the gabion in such a manner that strength and flexibility at the connecting point does not compromise the engineered structural design of the gabion. Where the length of the gabion exceeds one half its horizontal width, the gabion shall be divided by diaphragms of the same mesh and gauge as the body of the gabion, into cells whose length does not exceed the horizontal width. The gabion shall be furnished with the necessary diaphragms secured in proper position on the base in such a manner that no additional tying is required at this juncture.
| Mesh Opening (MM) | Steel Wire Diameter (MM) | (PVC Wire)/ Inside diameter/Outer diameter(MM) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.8/3.8 |
| 80X100 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 80X120 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 100X120 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 100X150 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 120X150 | 2.7-4.0 | 2.7/3.7-3.5/4.5 |
Advantages of Durable Hexagonal Wire Stone Gabion Basket Woven Wire Stone Cages
Flexible and simple structure and can filled with most of the in-situ materials.
High permeability help vegetation grow.
Cost-effective and has a long service life.
High tensile strength and toughness.
Simple installation.
Corrosion and abrasion resistance.
Durable and stable structure.
Applications of Durable Hexagonal Wire Stone Gabion Basket Woven Wire Stone Cages
Mass gravity retaining structures
Mechanically stabilized earth (MSE) walls
Vegetated slope reinforcement
Slope stabilization
Slope reinforcement
Channel lining and channel relocation
Slope and bank protection
Shore and stream bank protection
Weirs, groins, and jetties
Drop structures
Culvert outlet scour pads and headwalls
Bridge abutments
Erosion control
Cover or lids of woven gabions
Rockfall barriers
Road mesh
river bank
Sloe protection
Erosion control
Channel lining
Retaining wall
Vegetation greening system
