Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanised Gabion Boxes | Keyword: | Gabion Box |
|---|---|---|---|
| Processing Service: | Cutting | Installation: | Easy To Assemble And Disassemble |
| Advantages: | Economical | Cetification: | ISO |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Hight: | 1.5m |
| Port: | Tianjin | Mesh: | Hexagonal Shape |
| Selvage Wire: | 3.0-4.0mm | Package: | Wooden Pallets |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m | Wire Diamater: | 3mm~6mm Or Custom |
| Net Type: | Greenhouses Plastic Sun Shade Net | Sample: | Free Sample To Confirm Quality |
| Highlight: | Galvanised Gabion Boxes,Mesh Gabion Baskets |
||
The woven mesh system has the capability of withstanding unexpected and /or localized stresses due to ground settlements and scour by deflection while maintaining its structural integrity.
The stone fill allows the water to seep through the structure while retaining the soil, therefore no additional drainage is required to relieve the hydrostatic pressures.
Gabions and es construction does not require skilled labor because they are very easy to build. Standard construction equipment can be used. Structures can be built in stages, if necessary, and baskets can be prefilled and launched to enable the installation under water.
| Mesh Opening (MM) | Steel Wire Diameter (MM) | (PVC Wire)/ Inside diameter/Outer diameter(MM) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.8/3.8 |
| 80X100 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 80X120 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 100X120 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 100X150 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 120X150 | 2.7-4.0 | 2.7/3.7-3.5/4.5 |

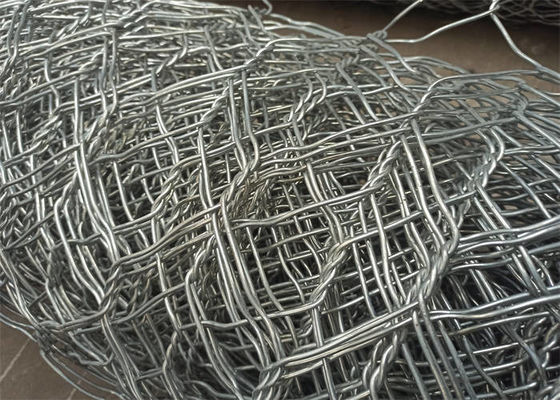

Advantages of Multipurpose Galvanized Hexagonal Mesh Gabion Basket 2.0 - 4.0 Mm Wire Diameter
Flexible and simple structure and can filled with most of the in-situ materials.
High permeability help vegetation grow.
Cost-effective and has a long service life.
High tensile strength and toughness.
Simple installation.
Corrosion and abrasion resistance.
Durable and stable structure.
Applications of Multipurpose Galvanized Hexagonal Mesh Gabion Basket 2.0 - 4.0 Mm Wire Diameter
Mass gravity retaining structures
Mechanically stabilized earth (MSE) walls
Vegetated slope reinforcement
Slope stabilization
Slope reinforcement
Channel lining and channel relocation
Slope and bank protection
Shore and stream bank protection
Weirs, groins, and jetties
Drop structures
Culvert outlet scour pads and headwalls
Bridge abutments
Erosion control
Cover or lids of woven gabions
Rockfall barriers
Road mesh
river bank
Sloe protection
Erosion control
Channel lining
Retaining wall
Vegetation greening system
