Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanised Chain Link Fence | Corrosion: | Well Corrosion Resistant |
|---|---|---|---|
| Zinc Coated: | 60g/m2 ,250g/m2 | Tolerance: | +/-0.5mm |
| Hole Type: | 75mm 100mm 150mm 200mm | Zinc Coating: | 30-150g/m |
| Tensible Strength: | 950-1050MPA | Panel Length: | Maximum 3m |
| Mesh: | 50x200mm, 50x150mm, 50x100mm | Material Kind: | Galvanized Steel Wire |
| Treatment: | Powder Spraying / PVC Coated | Surface Treatment: | Galvanized, PVC Coated, Powder Coated |
| Colors: | White, Green, Bule Etc. | Service Life: | 20~30 Years |
| Highlight: | Galvanised Chain Link Fence,Galvanised Chain Link Fencing,Anti Climb Mesh Fencing Corrosion Resistant |
||

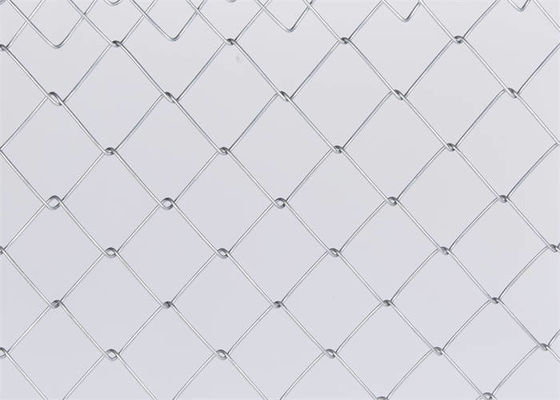

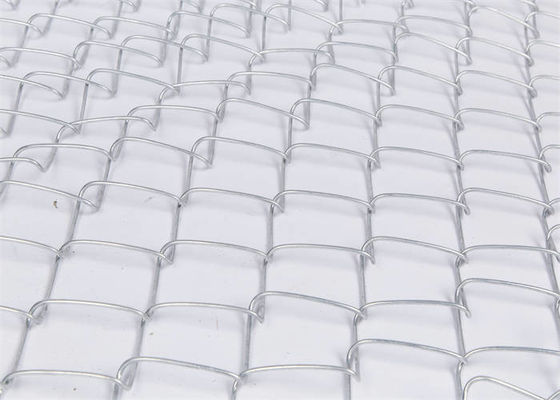

Galvanised Chain Link Fence Anti Cutting / Anti Climb Mesh Fencing Corrosion Resistant
According to different mesh size:
Common chain link fence (above 1" up to 4").
Mini mesh chain link fence for high security. (with 1/4", 3/8", 1/2", 5/8", 3/4" or 1" mesh opening).
Chain link fence Specifications
Material: galvanized and PVC coated wire, Vinyl coated wire, hot-dipped galvanized iron wire or stainless steel wire.
Tensile strength: 340 to 480 N/mm2.
Galvanized thickness: 60-90 g/m2.
PVC or vinyl wire colors: black, brown and green. Other RAL color is available.
Wire diameter: 2.0 - 5.0 mm.
Wire diameter tolerance: ±0.12 mm.
Mesh opening: 30-100 mm. (1/4", 3/8", 1/2", 5/8", 3/4" or 1" mini mesh also offered for high security).
Mesh shape: diamond shape, square shape.
Fencing height: 1.0-3.5 m.
Edge types: horizontal, knuckled or twisted. Knuckle edge can not hurt people, while twist edge adds security.

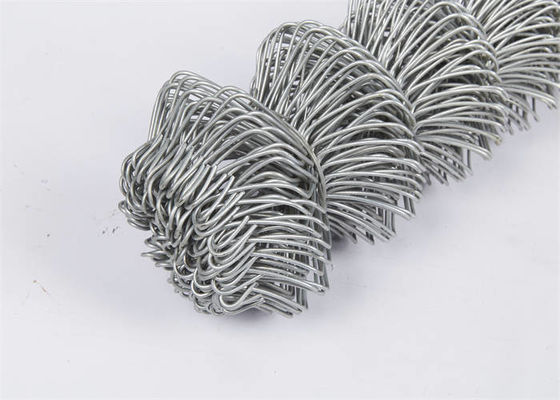

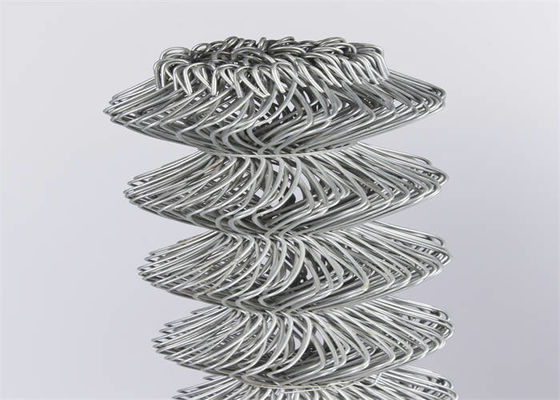

Roll length: 10-50 m.
Accessories: main post, beam post, post cap, rails, rail end, clamps, bolt, washer and nuts, etc.
Type of Chain Link Fence Anti Cutting / Anti Climb Mesh Fencing Corrosion Resistant
According to different materials:
Galvanized chain link fence
PVC chain link fence
Vinyl chain link fence
Stainless steel chain link fence
Advantage of Galvanised Chain Link Fence Anti Cutting / Anti Climb Mesh Fencing Corrosion Resistant
Durable
Selection of high-quality raw materials, high temperature and corrosion resistance, not easy to deformation during use.
Strong bearing capacity
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Clean and tidy appearance
Net surface clean, smooth, no burrs, no stripping.
Firm packing
Lined with pressure resistant paper tube and wrapped with bubble wrap.
Application of Galvanised Chain Link Fence Anti Cutting / Anti Climb Mesh Fencing Corrosion Resistant
Playground, yard and garden fencing barrier, tennis courts, sports fields fencing.
Super highway, railway, airport, port, residence.
Making into temporary fence for crowd control in event.
Mini mesh chain link fence for prisons and military high security jobs.
Chain link mesh with barbed wire coils on topping for mobile phone base station fencing.
Old trees protection fencing.
Materials divider in workshop, warehouse and construction site.
Poultry fencing for breeding animals, big dog cage, indoor or outdoor dog run pen.
Thin wire chain link fence for plastering mesh.
| Mesh opening | Wire gauge | Wire diameter | Weight | |
|---|---|---|---|---|
| inch | mm | (SWG) | (mm) | (kg/m2) |
| 1/2" | 12.7 | 14# | 2.2 | 4.4 |
| 3/4" | 19.05 | 12# | 2.8 | 6 |
| 3/4" | 19.05 | 14# | 2.2 | 3.3 |
| 3/4" | 19.05 | 16# | 1.63 | 1.9 |
| 1" | 25.4 | 12# | 2.8 | 4 |
| 1" | 25.4 | 14# | 2.2 | 2.4 |
| 1" | 25.4 | 16# | 1.83 | 1.4 |
| 1 1/4" | 31.75 | 12# | 2.8 | 3.2 |
| 1 1/4" | 31.75 | 14# | 2.2 | 1.92 |
| 1 1/2" | 38.1 | 10# | 3.25 | 4.1 |
| 1 1/2" | 38.1 | 12# | 2.8 | 2.7 |
| 1 1/2" | 38.1 | 14# | 2.2 | 1.6 |
| 2" | 50.8 | 8# | 4.06 | 4.6 |
| 2" | 50.8 | 10# | 3.25 | 3.1 |
| 2" | 50.8 | 11# | 2.95 | 2.5 |
| 2" | 50.8 | 12# | 2.8 | 2 |
