Product Details:
Payment & Shipping Terms:
|
| Product Name: | Carbon Steel Crimped Wire Mesh | Key Words: | Crimped Wire Mesh |
|---|---|---|---|
| Technique: | Crimped | Advantage: | Rust Resistance |
| Thickness: | 1.0mm | Manufacturing Process: | Precrimping And Weaving |
| Other Name: | Woven Mesh | Size: | 45cm 50cm 55cm 60cm 80cm Etc |
| Roll Width: | 0.9m - 1.5m | Edge: | Open Edge ,hook Edge Or As Per Request |
| Weaving: | Plain Weaving | Surface: | Galvanized (Electro Or Hot Dipped) |
| Edge Type: | Raw Edge, Hooked Edge, Closed Edge | Web: | Www.eon-wire-mesh-com.ecer.com |
| Max Width: | 1-3m | Colour: | Silver |
| Panel Sizes: | 1mX15m,1.5mX15m,2.0mX20m.etc | ||
| Highlight: | Carbon Steel Crimped Woven Mesh,Filtering Crimped Woven Mesh,Carbon Steel Crimped Wire Screen |
||

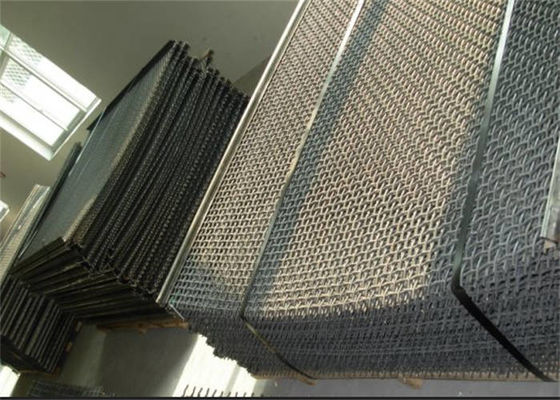

Vibrating screens are used for filtering, segregating and separating particles of various shapes, sizes and composition in industries like Chemical, Pharmaceutical, Food Processing, Ceramic, Chemical Industry, Plastic Rubber Industry, Paint Manufacturing, Brewing, Environment Protection and Mining. The high performance Screens are designed to reduce the operating cost by effectively filtering, segregating and separating particles in a relatively short period of time.

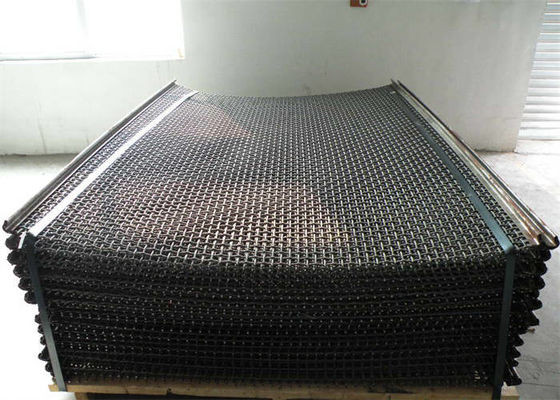

Hooks
Anping Win Win Wire Mesh Manufacturing Co., Ltd offers a variety of custom hook screens to meet all your sifting and sizing needs.
Anping Win Win Wire Mesh Manufacturing Co., Ltd offers a large range of mesh specifications and can reinforce these with backing meshes.
Standard Hook Configuration – Usually for wire screens 6.3mm and heavier.
Hooks with welded inserts.
Standard Hook Strips (reinforced hooked edges). Generally the reinforcement is 1.25mm galvanised or stainless steel. Canvas or polyurethane inserts for finer mesh can be supplied. This type of hook strip is usually fitted to 6.3mm wire and finer.
Product Features of Carbon Steel Crimped Wire Mesh Vibrating Screen For Filtering
Product Applications of Carbon Steel Crimped Wire Mesh Vibrating Screen For Filtering

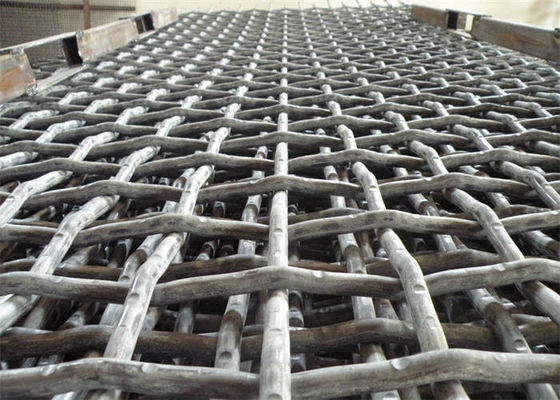

Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
