Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Selvedge Crimped Wire Mesh | Technique: | Crimped |
|---|---|---|---|
| Advantage: | Rust Resistance | Thickness: | 1.0mm |
| Surface: | Galvanized (Electro Or Hot Dipped) | Edge Type: | Raw Edge, Hooked Edge, Closed Edge |
| Application: | Screen | Type: | Crimped Wire Mesh |
| Material: | SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire | Weave Style: | Plain Weave |
| Wire Diameter: | 0.5-10mm | Hole Shape: | As Per Requirement |
| Color: | Silver | Length: | Customized |
| Highlight: | Selvedge Crimped Wire Mesh,Crimped Wire Mesh Rust Resistant,Quarry Screen Wire Mesh |
||
Pre-crimping wire enables the mesh to lock together, creating a tight weave with good rigidity and pleasing aesthetics. It is used extensively in architectural applications, as infill panels, cages and decoration. It is also used in acoustics, filtration, bridge guards, aerospace parts, rodent control, and truck grills.

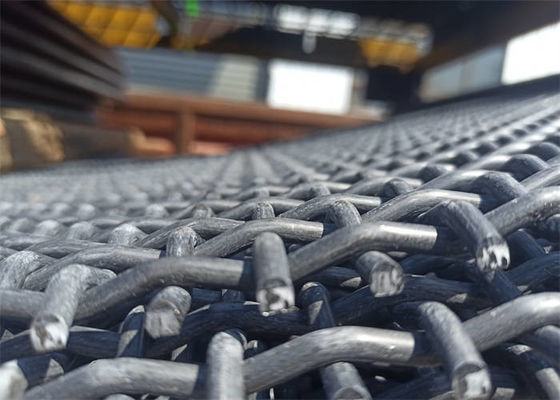

Selvedged crimped manganese steel mesh, plain weave, with uniform and durable wave structures, for screening and sifting in mine

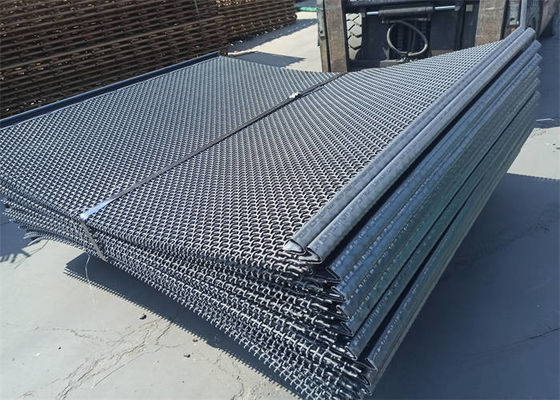

Hooked vibrating screen wire mesh, of Manganese steel 65 # Mn., supplied specification for Malaysia Market
48" x 95" x 3/16" Apture x 2.5mm wire diameter
48" x 95" x 7/8" Apture x 7.1mm wire diameter

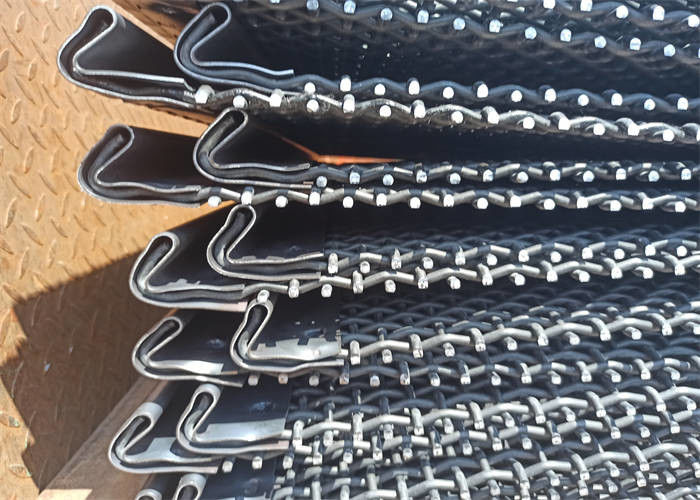

Designed with hook at the end, combined with steel plate, by the curve in 60 degree at both side 48".
Product Features of Selvedge Crimped Wire Mesh Rust Resistant Quarry Screen Wire Mesh
Product Applications of Selvedge Crimped Wire Mesh Rust Resistant Quarry Screen Wire Mesh
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
