Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanized Crimped Wire Mesh | Key Words: | Crimped Wire Mesh |
|---|---|---|---|
| Technique: | Crimped | Advantage: | Rust Resistance |
| Thickness: | 1.0mm | Surface: | Galvanized (Electro Or Hot Dipped) |
| Edge Type: | Raw Edge, Hooked Edge, Closed Edge | Shape Of Hole: | Square,Special Design |
| Aperture: | 1mm-100mm | Panel Length: | 1.5m, 2m, Etc |
| Width: | 0.5m-2m | Hole Size: | 30mm-150mm |
| Customize: | Yes, Available | Sample: | Free Supply |
| Roll Height: | 0.9m-1.5m | Mesh Shape: | Square, Rectangular Slot, Long Slot. |
| Highlight: | Galvanized Crimped Wire Mesh,Crimped Wire Mesh Galvanized,Cabinet Wire Mesh Galvanized |
||

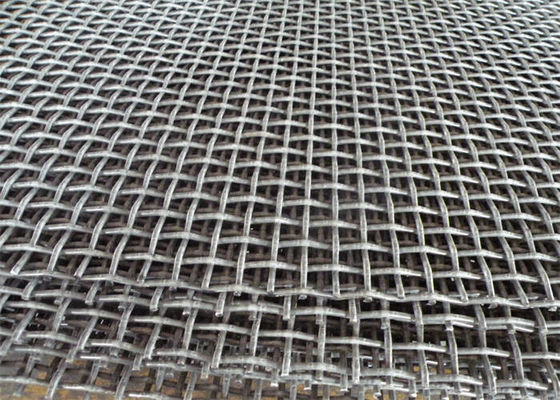

Crimped mesh is a type of heavy mesh screen woven of crimped steel wire. Also known as space cloth. The wires pre-crimped stay and maintain an accurate mesh structure with added strength and rigidity. This rigid woven wire cloth is widely used in mining, guarding and other uses.
Crimping patterns: Double crimp, lock crimp, intermediate crimp.
Hole types: Diamond, square, rectangular.
Materials: Galvanized steel, Stainless steel, black iron, high carbon steel, Mn steel.
Wire Types of Pre-crimped Screen Fabrics
1. Mild Steel / Low Carbon Steel
2. Black wire: Black steel wire, also known as high carbon steel wire with greater hardness. With added manganese, it is called high manganese crimped wire mesh with increased wearing resistance. Commonly used in the mining screen mesh. Common manganese steel used:45 # Mn, 65 # Mn.
3. Galvanized wire: applied to crimped wire mesh with small wire diameter, used to make wire mesh barbecue.
4. Galvanized Redrawing Wire:
Compared with galvanized steel wire, the redrawing wire has one time less annealing processing as detail listed below:
Average galvanized wire production process is: Rod - Drawing - annealing - drawing - annealing - galvanized.
Redrawing wire production process is: Rod - Drawing - annealing - Zinc Plating - Drawing.
As a result of the processing difference, galvanized redrawing wire has more strength compared with common galvanized wire, less good corrosion resistance and it costs less.
5. Stainless steel wire: SUS304, 316, 304L, etc.
Product Features of Galvanized Crimped Wire Mesh For Cabinet,Partition And Railing
Product Applications of Galvanized Crimped Wire Mesh For Cabinet,Partition And Railing
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
