Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Technique: | Crimped | Product Name: | Plain Weaving Wire Mesh |
|---|---|---|---|
| Key Words: | Crimped Wire Mesh | Advantage: | Rust Resistance |
| Thickness: | 1.0mm | Manufacturing Process: | Precrimping And Weaving |
| Other Name: | Woven Mesh | Size: | 45cm 50cm 55cm 60cm 80cm Etc |
| Roll Width: | 0.9m - 1.5m | Edge: | Open Edge ,hook Edge Or As Per Request |
| Weaving: | Plain Weaving | Surface: | Galvanized (Electro Or Hot Dipped) |
| Edge Type: | Raw Edge, Hooked Edge, Closed Edge | Max Width: | 1-3m |
| Colour: | Silver | Panel Sizes: | 1mX15m,1.5mX15m,2.0mX20m.etc |
| Highlight: | 1.0mm Plain Weaving Wire Mesh,ISO9001 Plain Weaving Wire Mesh,Vibrating Screen Wire Mesh |
||
By using rotary dies in the pre-crimping process, the crimped wire is woven into strong and stabilized structure to ensure fixed opening. Additional rigidity and strength can be obtained by adding crimps between the intersections, using an intermediate crimp.
Wire material used is with many options according to the application, such as galvanized wire, stainless steel wire, high tensile steel wire, 45# Mn & 65# Mn black wire, copper wire and other non-ferrous metal. Crimped wire mesh can be in not only roll but also sheet. A full range of conversion services are available. These include slitting and cutting, electro polishing, forming and welding, and custom fabrications.

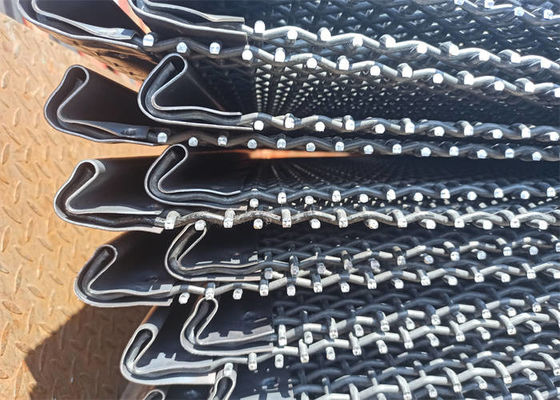

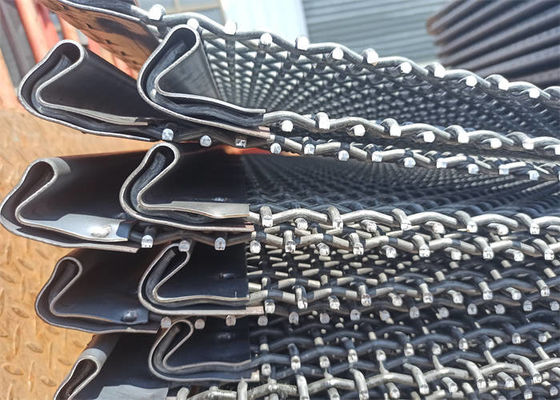

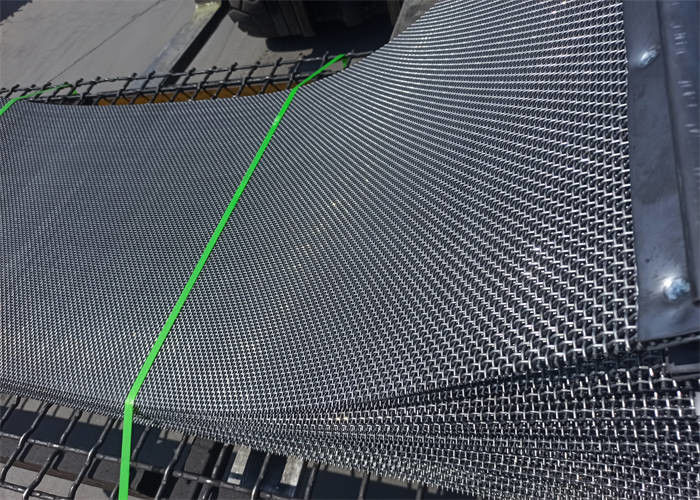

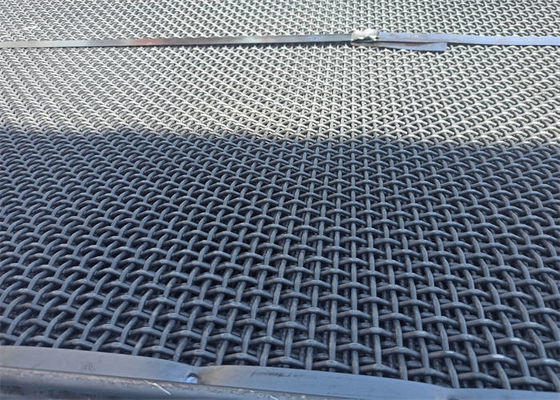

Product Features of Steel Crimped Wire Mesh For Vibrating Screen Machines
Product Applications of Steel Crimped Wire Mesh For Vibrating Screen Machines
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
