Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Large Image : Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-00014

Payment & Shipping Terms:

Minimum Order Quantity:	100 rolls
Price:	Negotiable
Packaging Details:	In Pallet or In Bulk
Delivery Time:	According to order quantity
Payment Terms:	L/C, T/T
Supply Ability:	1000 Rolls/Week

Contact Now

Detailed Product Description

Features:	Sharp Blades, Easy To Install, Durable	Product Name:	Concertina Razor Wire
Key Words:	Barbed Wire,iron Barbed Wire,Razor Wire	Place Of Origin:	China
Material:	Steel Wire	Zinc Coating:	40-60g/m2
Color:	Silver	Trade Method:	Factory Directly
Materials:	Galvanized Steel Wire	Razor Blade Style:	0.5±0.05mm
Tensile:	1400N/mm2	Package:	Inner Waterproof Paper With Woven Bag Outside
Frame Material:	Metal	Razor Thickness:	Concertina(cross)
Blade Style:	CBT-65	Application:	Protective Construction
Highlight:	Anti Corrosion Concertina Razor Wire , Concertina Razor Wire Coil , Galvanized Concertina Barbed Wire

Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Razor wire and concertina wire are our feature products for security protection. Our products include razor concertina wire, flat wrap coils, welded, spiral razor wire and razor barriers security fencing. They are made out of galvanized wire, PVC coated wire, stainless steel mesh materials. Our anti-piracy razor wire blade includes fish-hook blade, long blade, tear blade, medium blade and short blade.

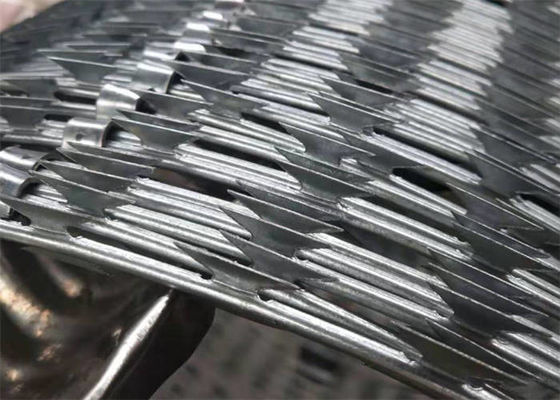

Manufacture process: First, galvanized steel coils and steel wire are prepared as the material. Then, cutting galvanized steel coils to barbed tape, after cutting, razor barbed tape tightly crimped around the steel wire forming razor wire. The following two images are the barbed tape and steel wire state of before crimped and after crimping.
Packing: simple packing and carton packing.
Simple packing: inside is water proof paper and outside is woven bags and then compression. It is mainly for BTO-10, BTO-12, BTO-22, BTO-30 and CBT-25.
Carton packing: razor mesh coils are loading into hard cartoon boxes, it is mainly application to CBT-65, CBT-60.

Features of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.

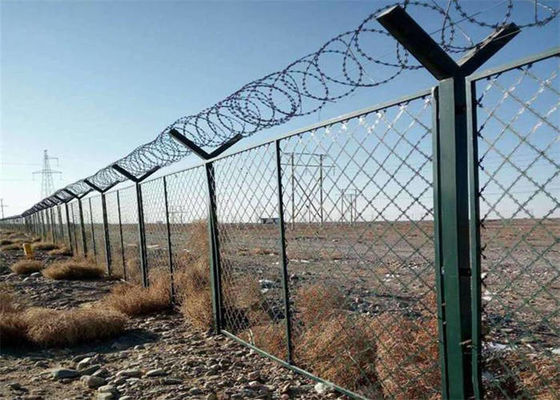

Applications of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Utilities.
Refineries.
Nuclear.
Energy.

Specification of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Table 2: Minimum coating weight on zinc and aluminum alloy coated barbed wire
Reference number	Thickness (mm)	Wire diameter (mm)	Blade length (mm)	Blade width (mm)	Blade spacing (mm)
BTO-12	0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	26 ± 1
BTO-15	0.5 ± 0.05	2.5 ± 0.1	15 ± 1	15 ± 1	33 ± 1
BTO-22	0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	34 ± 1
BTO-30	0.5 ± 0.05	2.5 ± 0.1	30 ± 1	18 ± 1	45 ± 1
CBT-25	0.5 ± 0.05	2.5 ± 0.1	25 ± 1	16 ± 1	40 ± 1
CBT-60	0.6 ± 0.05	2.5 ± 0.1	60 ± 2	32 ± 1	100 ± 2
CBT-65	0.6 ± 0.05	2.5 ± 0.1	65 ± 2	21 ± 1	100 ± 2
CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle.

Specifications of commonly used razor wire
Item	Outside diameter (mm)	Quantity of loops	Standard length per coil (m)	Type	Notes
RZ-01	450	33	7-8	CBT-60, 65	Single coil
RZ-02	500	56	12-13	CBT-60, 65	Single coil
RZ-03	700	56	13-14	CBT-60, 65	Single coil
RZ-04	930	56	14-15	CBT-60, 65	Single coil
RZ-05	450	56	8-9 (3 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-06	500	56	9-10 (3 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-07	600	56	10-11 (3 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-08	600	56	8-10 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-09	700	56	10-12 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-10	800	56	11-13 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-11	900	56	12-14 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-12	960	56	13-15 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
RZ-13	980	56	14-16 (5 clips)	BTO-10, 12, 18, 22, 28, 30	Cross type
