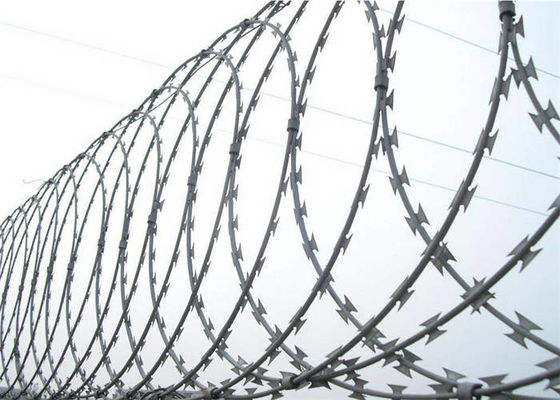

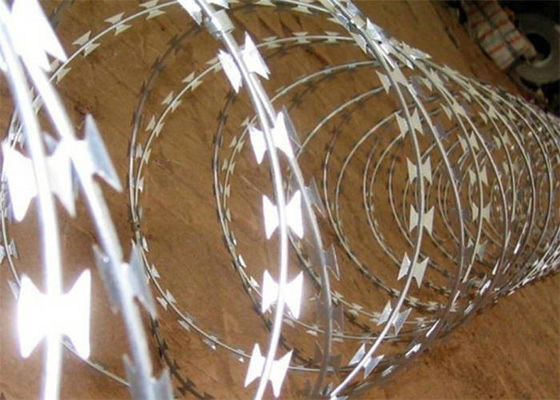

Durable Concertina Razor Wire Single / Double Spiral Razor Wire Coil

Durable Concertina Razor Wire Single / Double Spiral Razor Wire Coil

Razor Barbed Wire has three types ,Single Loop Razor Barbed Wire, Cross Type Razor Barbed Wire , Flat warp razor barbed wire
Razor barbed wire Matrial:Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
stainess steel core wire and blade
PVC coated core wire and blade
Single Loop Razor Barbed Wire is also called single coil razor barbed wire, it's installed without clips and runs in natural loops on the top of walls or fencings. Single loop razor barbed wire is restless and can be easily installed.
Cross Type Razor Barbed Wire it's also called Double Loops Razor Barbed Wire or Concertina Barbed Wire. It's produced by two pieces of stainless steel razor wire or Zinc-coated Wire which are bound together by clips to make it stronger.
The techniques of razor barbed wire: We punch and cut the steel plate into sharp blade strip, then enwrap the mid-carbon steel wire (cored wire).is a new de fencing product which is fetched from abroad. Sharp razor barbed wire has a snake-shaped, constituted by fastened double strand razor wire. Frightening anyone who want to get close to the fence. Actually, people will be hurt once get across it. The effect is obvious.
It is easily and expediently installation.
It has been widely used in airport, key sites, border line, prison, government, bank, bounding wall of villa, highway, fence of railway and etc. in many countries.
Cross type razor barbed wire: The near two razor wire are closely combined by a clip, up, down and sideways are interwoven and meshed with each other.
Flat warp razor barbed wire is a new type of razor barbed wire. Metal Tec press the single loop razor barbed wire into flat, or press two loops into flat then expand them across. We usually use it together with beenline razor barbed wire to build a defencing wall, or use it alone as a fence.
It is normally used in community, storehouse, mine, prison, key sites of National Defence, etc.

Features of Durable Concertina Razor Wire Single / Double Spiral Razor Wire Coil

High tensile strength.
Corrosion and rust resistance.
Good hardness.
Good ductility.
Anti-age. It can be used in the harsh environments with good property.
Easy to install and uninstall.
Durable and long service life.

Applications of Durable Concertina Razor Wire Single / Double Spiral Razor Wire Coil

Concertina razor wire can be placed in the farmland to prevent people from destroy the farms.
Concertina razor wire can be used to protect military sites security.

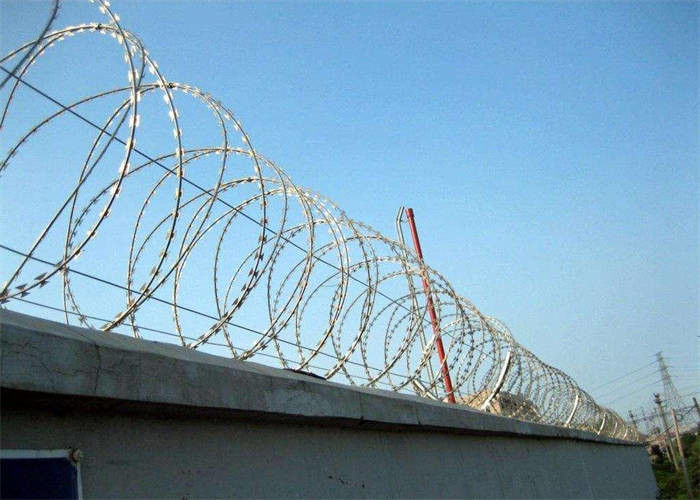

Concertina razor wire can be installed at the top of the wall to protect residences safe.

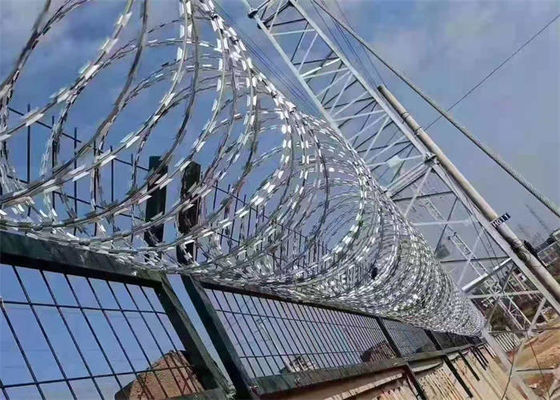

Concertina razor wire can be installed at various wire mesh fences to supply maximum safety coefficient.
Concertina razor wire can be installed on the deck of ships to prevent pirate from attacking the ship.
Specification of Durable Concertina Razor Wire Single / Double Spiral Razor Wire Coil

Table 2: Minimum coating weight on zinc and aluminum alloy coated barbed wire

Reference number	Blade style	Thickness (mm)	Wire diameter (mm)	Blade length (mm)	Blade width (mm)	Blade spacing (mm)
BTO-12		0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	26 ± 1
BTO-15		0.5 ± 0.05	2.5 ± 0.1	15 ± 1	15 ± 1	33 ± 1
BTO-22		0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	34 ± 1
BTO-30		0.5 ± 0.05	2.5 ± 0.1	30 ± 1	18 ± 1	45 ± 1
CBT-25		0.5 ± 0.05	2.5 ± 0.1	25 ± 1	16 ± 1	40 ± 1
CBT-60		0.6 ± 0.05	2.5 ± 0.1	60 ± 2	32 ± 1	100 ± 2
CBT-65		0.6 ± 0.05	2.5 ± 0.1	65 ± 2	21 ± 1	100 ± 2
CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle.
