Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

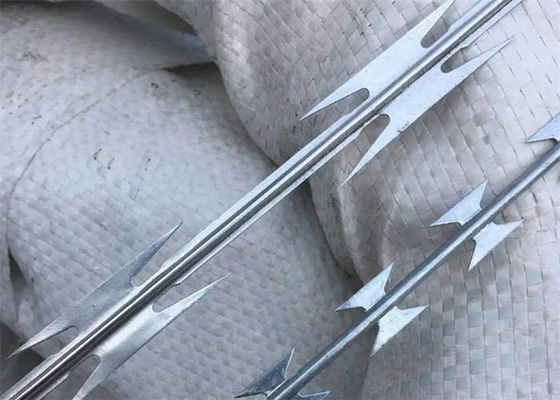

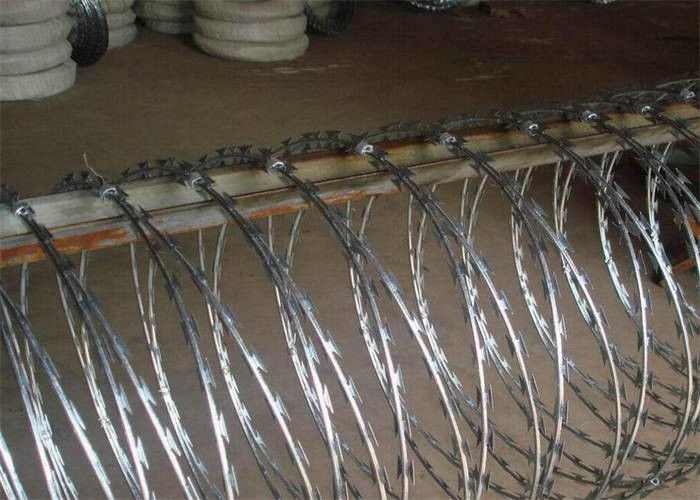

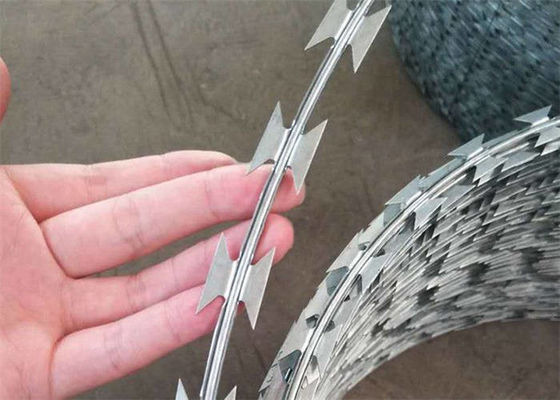

Razor Barbed Wire is also named concertina coils,concertina wires. It is a kind of modern security fencing materials with better protection and fencing strength.
It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with 1200mpa tensile strength or stainless steel wire).
Types of razor wires:BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60

Specification of razor blade wire:
1,Normal hot dipped galvanized razor wire(40-60g)
2,Heavily zinc coated razor wire (70-270g)
3,Stainless steel 304/316 grades razor wire

Clips of concertina wire: 3clips, 5clips or without clips
Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm

Package of razor wires:
1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required
2,In bulk,then packing by wooden pallet or in bulk

Features of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.

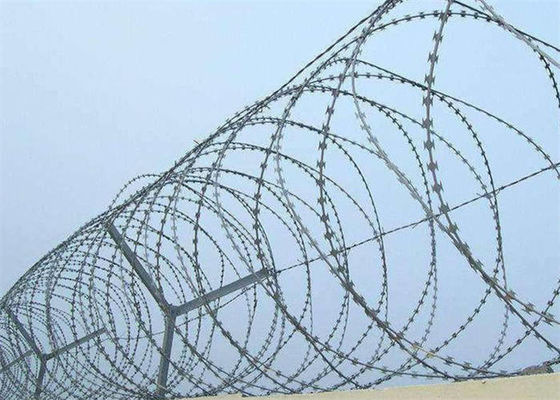

Applications of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.

Specification of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Reference number	Blade style	Thickness (mm)	Wire diameter (mm)	Blade length (mm)	Blade width (mm)	Blade spacing (mm)
BTO-12		0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	26 ± 1
BTO-15		0.5 ± 0.05	2.5 ± 0.1	15 ± 1	15 ± 1	33 ± 1
BTO-22		0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	34 ± 1
BTO-30		0.5 ± 0.05	2.5 ± 0.1	30 ± 1	18 ± 1	45 ± 1
CBT-25		0.5 ± 0.05	2.5 ± 0.1	25 ± 1	16 ± 1	40 ± 1
CBT-60		0.6 ± 0.05	2.5 ± 0.1	60 ± 2	32 ± 1	100 ± 2
CBT-65		0.6 ± 0.05	2.5 ± 0.1	65 ± 2	21 ± 1	100 ± 2
CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle.
