Galvanized Concertina Razor Barbed Wire BTO22 Razor Fencing Wire

Galvanized Concertina Razor Barbed Wire BTO22 Razor Fencing Wire

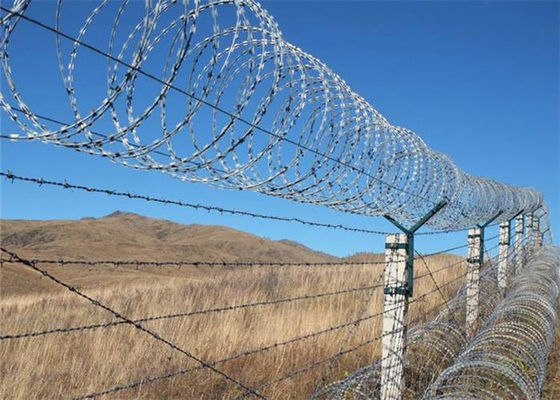

Razor wire, also called concertina razor wire. It is an effective and economical security barrier. It is made of galvanized steel blade to wrap around a galvanized core wire. The concertina razor wire can be made into different blade types to supply high security. The razor wire can prevent most of the intruders for it is hard and dangerous to break. Razor barbed wire can not only be used individually, it is widely used combined with other types of wire mesh fences, such as chain link fence, welded wire mesh fence to improve the safety factor. Additional, the razor wire is low cost, so it is an ideal choice with low cost and high security factor fence for site security.

Types of razor wire
Galvanized razor wire.
PVC coated razor wire.
Flat warp type razor wire.
Straight type razor wire.
Spiral type razor wire.
Concertina type razor wire.

According to material.
Electric galvanized razor wire.
Hot dipped galvanized razor wire.
Stainless steel razor wire.

According to structure
Spiral razor wire. The spiral coils are interconnected at several points in a certain pattern. It is much more efficient than single reinforced barbed tape and conventional barbed wire.
Straight razor wire. The straight type razor wire is combined with several straight barbed tapes, which can be installed quickly. It can not only save expenditure but also reach the result of frightening and stopping.

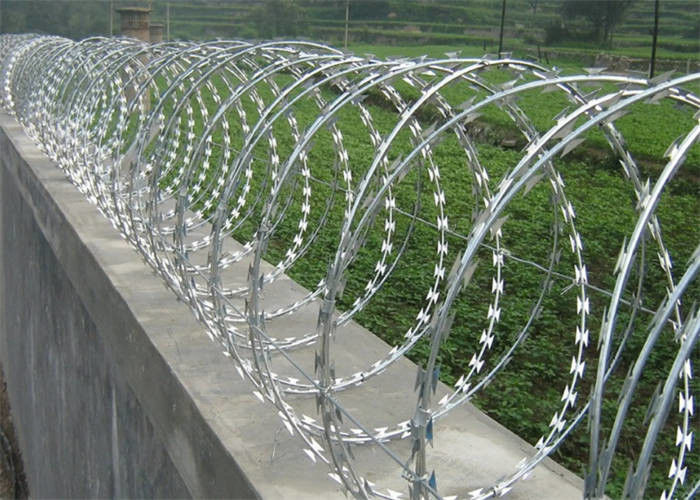

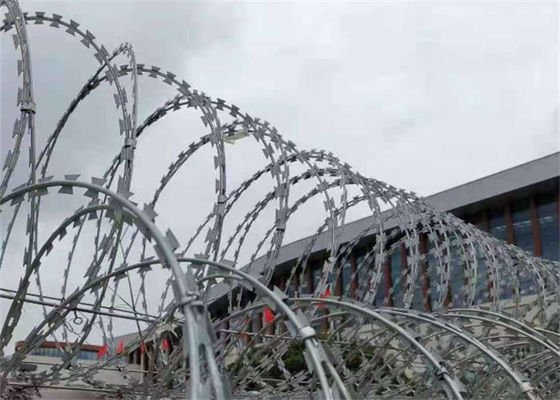

Concertina cross razor wire. It has continuous spiral which are fastened two razor wire loops together at various intervals with clips. Concertina cross razor wire has good appearance, high security and durable life. It is the most widely used type.
Flat warp razor wire. The coils are located in a flat surface and its coils are fastened together by the galvanized staples. It is more compact to use and less aggressive.

Features of Galvanized Concertina Razor Barbed Wire BTO22 Razor Fencing Wire

Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.

Applications of Galvanized Concertina Razor Barbed Wire BTO22 Razor Fencing Wire

Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.

Utilities.
Refineries.
Nuclear.
Energy.

Specification of Galvanized Concertina Razor Barbed Wire BTO22 Razor Fencing Wire

Reference number	Blade style	Thickness (mm)	Wire diameter (mm)	Blade length (mm)	Blade width (mm)	Blade spacing (mm)
BTO-12		0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	26 ± 1
BTO-15		0.5 ± 0.05	2.5 ± 0.1	15 ± 1	15 ± 1	33 ± 1
BTO-22		0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	34 ± 1
BTO-30		0.5 ± 0.05	2.5 ± 0.1	30 ± 1	18 ± 1	45 ± 1
CBT-25		0.5 ± 0.05	2.5 ± 0.1	25 ± 1	16 ± 1	40 ± 1
CBT-60		0.6 ± 0.05	2.5 ± 0.1	60 ± 2	32 ± 1	100 ± 2
CBT-65		0.6 ± 0.05	2.5 ± 0.1	65 ± 2	21 ± 1	100 ± 2
CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle.
