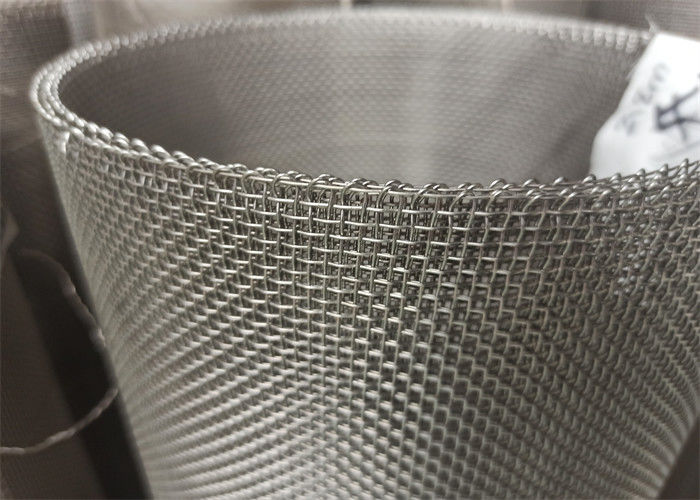

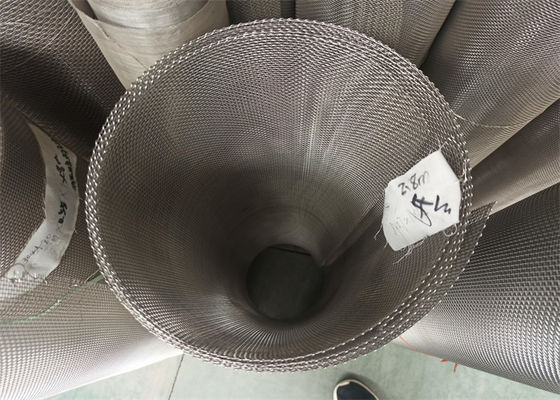

12 Mesh Square Woven Wire Mesh Stainless Steel For Sieving Grain

Large Image : 12 Mesh Square Woven Wire Mesh Stainless Steel For Sieving Grain

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0004

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T
Supply Ability:	400 Rolls/Week

Contact Now

Detailed Product Description

Product Name:	Square Woven Wire Mesh	Key Words:	Stainless Steel Wire Mesh
Mesh Count:	2-635 Mesh	Mesh Material:	As Customer Requested
Characteristic:	Copper Alloy Net Produce Healthy Fish.	Sample:	Avaliable
Type:	Steel Wire Mesh	Surface Treatment:	Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc.
Third Party Inspection:	SGS Or Other Available Inspection	Wire Dia:	0.05-1.8mm, Mesh: 6-350mesh/inch,
Appearance:	Plain Or Twill	Mesh Count:	1x1-635x635mesh/inch
Highlight:	Square Woven Wire Mesh , Sieving Grain Woven Wire Mesh , 12 Mesh Square Woven Mesh

Description of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

Stainless steel wire mesh is made by stainless steel wire,Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance corrosion.

Plain weave wire mesh, where the wires are woven in an over-and-under pattern, creating a square opening. This type provides excellent stability and a high level of filtration accuracy, making it ideal for fine particle separation, insect screens, and sieving applications.

Twill weave wire mesh, which is characterized by a diagonal pattern created by the interlacing of wires. Twill weave mesh offers enhanced strength and flexibility, making it suitable for heavy-duty applications such as conveyor belts, hydraulic filters, and architectural applications like facades and interior design.

Dutch weave wire mesh is a specialized type that features a tight weave with smaller wire openings. It is created by using thicker wires in the warp direction and finer wires in the weft direction. This design provides superior filtration capabilities and is commonly used in applications requiring precise filtration, such as oil and gas, pharmaceutical, and chemical industries.

Reverse Dutch weave wire mesh is another variant where the thicker wires are used in the weft direction and finer wires in the warp direction. This configuration results in a high flow rate and excellent mechanical stability, making it suitable for pressure filtration, vacuum filters, and liquid-solid separation.

Material of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

SUS 201,302,304,304L,310,316,316L,321,etc.

Application of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

Sifting and sizing
Architectural applications when aesthetics are important
Infill panels that can be used for pedestrian partitions
Filtration and separation
Glare control
RFI and EMI shielding
Ventilation fan screens
Handrails and safety guards
Pest control and livestock cages
Process screens and centrifuge screens
Air and water filters
Dewatering, solids/liquid control
Waste treatment
Filters and strainers for air, oil, fuel and hydraulic systems
Fuel cells and mud screens
Separator screens and cathode screens
Catalyst support grids made from bar grating with wire mesh overlay

Advantages of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost

Features of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.

Technical Parameters of 12 Mesh Square Wire Mesh Woven Wire Mesh Use In Sieving Grain

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
