Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

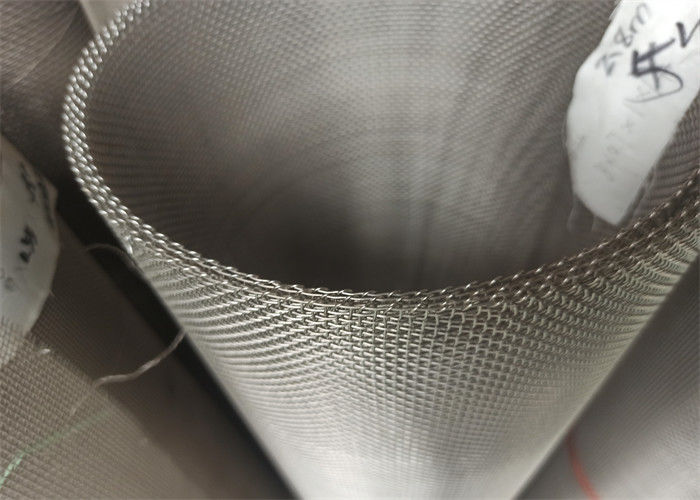

Large Image : Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0004

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T
Supply Ability:	400 Rolls/Week

Contact Now

Detailed Product Description

Product Name:	Galvanized Woven Mesh	Mesh Count:	2-635 Mesh
Mesh Material:	As Customer Requested	Characteristic:	Copper Alloy Net Produce Healthy Fish.
Sample:	Avaliable	Type:	Steel Wire Mesh
Surface Treatment:	Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc.	Third Party Inspection:	SGS Or Other Available Inspection
Wire Dia:	0.05-1.8mm, Mesh: 6-350mesh/inch,	Appearance:	Plain Or Twill
Highlight:	Square Galvanized Woven Mesh , Galvanized Woven Mesh 24" , 24" Woven Metal Mesh

Description of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Square wire meshes from the following wires: stainless steel, bare steel and zinc-coated, copper, brass, bronze, aluminium and other materials at a customer's request.

Square wire mesh is a kind of solid woven wire mesh cloth with galvanised or stainless steel wire and is usually identified with the Mesh Opening or the necessary amount of light penetration in mm.

This type of wire mesh cloth is sold by kilo, in rolls of approximately 25 linear meter.

We can make different roll heights for square wire mesh on request, up to 2,000 mm.

Assortment of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Electro galvanized square mesh
Hot-dipped galvanized after weaving

Stainless Steel Square Wire Mesh

Application of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Square Wire Mesh is mostly used in as windows screening, safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Advantages of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost

Features of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Corrosion resistance

Anti-acid and alkali

Anti-high temperature

Technical Parameters of Square Galvanized Woven Mesh 24" Woven Metal Mesh Sample Avaliable

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
