Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry

Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry

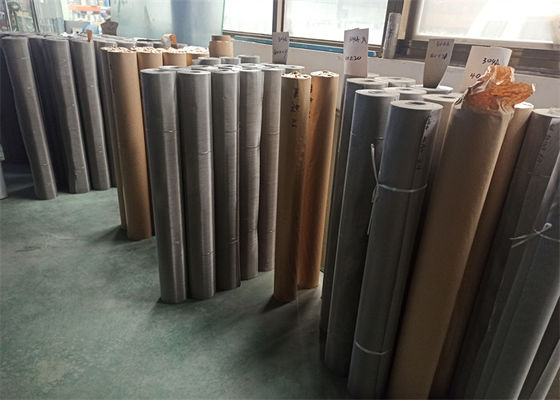

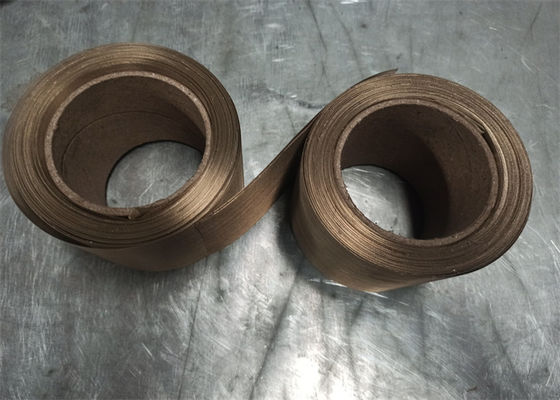

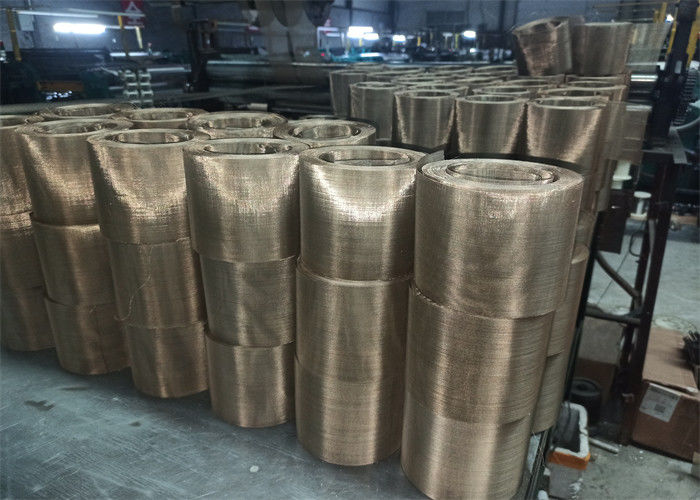

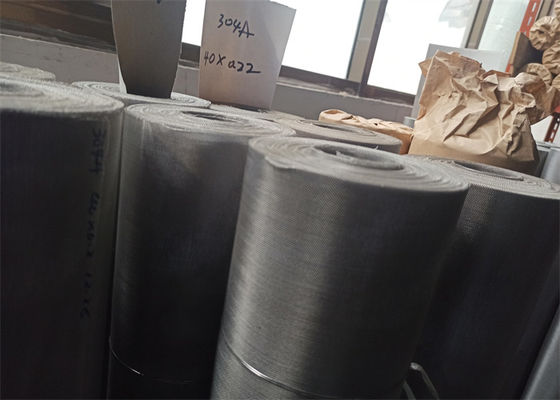

Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry

Large Image :  Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry

Product Details:
Place of Origin: China
Brand Name: Giant Shuttle
Certification: ISO9001
Model Number: WW-0004
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: In Carton,Wooden box,Pallet or In Bulk
Delivery Time: 7Days after receive the deposit
Payment Terms: L/C, T/T
Supply Ability: 400 Rolls/Week
Detailed Product Description
Product Name: Woven Wire Mesh Key Words: Wire Cloth
Mesh Material: As Customer Requested Sample: Avaliable
Type: Steel Wire Mesh Surface Treatment: Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc.
Third Party Inspection: SGS Or Other Available Inspection Wire Dia: 0.05-1.8mm, Mesh: 6-350mesh/inch,
Appearance: Plain Or Twill Technique: Woven
Weave Style: Plain Or Twill Dutch Or Crimped Application: Protecting Mesh
Material: Plain Steel Galvanized Product Name: Metal Woven Mesh
Wire Diameter: 0.5-8mm
Highlight:

Low Carbon Steel Wire Mesh

,

Carbon Steel Wire Mesh Galvanized

,

Grains Industry Carbon Steel Wire Mesh

Description of Low Carbon Steel Woven Wire Mesh Use In Grains Industry



Galvanized is not a metal or alloy; it is a process in which a protective zinc coating is applied to steel to prevent rusting. In the wire mesh industry, however, it is often treated as a separate category because of its wide spread use in all types of applications.



Galvanizing can occur either before or after wire mesh is manufactured – both in woven form or welded form. Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.


Assortment of Low Carbon Steel Woven Wire Mesh Use In Grains Industry
Electro galvanized square mesh
Hot-dipped galvanized after weaving
Stainless Steel Square Wire Mesh

Application of Low Carbon Steel Woven Wire Mesh Use In Grains Industry
Fencing, caging & enclosures
Farm, garden & agricultural use
Window & safety guards
Archeological use
Building & construction projects
Infill panels
High security applications
Landscaping & gabions
Wall & stone retention
Greenhouse use
Particle separation
General industrial use

Advantages of Low Carbon Steel Woven Wire Mesh Use In Grains Industry

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost



Features of Low Carbon Steel Woven Wire Mesh Use In Grains Industry

Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.



Technical Parameters of Low Carbon Steel Woven Wire Mesh Use In Grains Industry

Meshes perLinear inch Wire diameter Width of opening Open area
inch mm inch mm percent
1×1 .157 4.0 .84 21.4 71.0
2×2 .118 2.5 .38 10.2 64.0
3×3 .079 2.0 .25 6.4 58.0
4×4 .063 1.6 .187 4.75 56.0
4×4 .047 1.19 .203 5.16 65.9
5×5 .055 1.4 .14 3.68 52.0
6×6 .047 1.2 .12 3.03 51.0
8×8 0.43 1.1 .08 2.08 42.0
10×10 .039 1.0 .06 1.54 36.0
10×10 .020 .51 .080 2.03 64.0
12×12 .023 .584 .060 1.52 51.8
12×12 .020 .508 .063 1.60 57.2
14×14 .023 .584 .048 1.22 45.2
14×14 .020 .508 .051 1.30 51.0
16×16 .018 .457 .0445 1.13 50.7
18×18 .017 .432 .0386 .98 48.3
20×20 .020 .508 .0300 .76 36.0
20×20 .016 .406 .0340 .86 46.2
24×24 .014 .356 .0277 .70 44.2
30×30 .013 .330 .0203 .52 37.1
30×30 .012 .305 .0213 .54 40.8
30×30 .009 .229 .0243 .62 53.1
35×35 .011 .279 .0176 .45 37.9
40×40 .010 .254 .0150 .38 36.0
50×50 .009 .229 .0110 .28 30.3
50×50 .008 .203 .0120 .31 36.0
60×60 .0075 .191 .0092 .23 30.5
60×60 .007 .178 .0097 .25 33.9
70×70 .0065 .165 .0078 .20 29.8
80×80 .0065 .165 .0060 .15 23.0
80×80 .0055 .140 .0070 .18 31.4
90×90 .005 .127 .0061 .16 30.1
100×100 .0045 .114 .0055 .14 30.3
100×100 .004 .102 .0060 .15 36.0
100×100 .0035 .089 .0065 .17 42.3
110×110 .0040 .1016 .0051 .1295 30.7
120×120 .0037 .0940 .0046 .1168 30.7
150×150 .0026 .0060 .0041 .1041 37.4
160×160 .0025 .0635 .0038 .0965 36.4
180×180 .0023 .0584 .0033 .0838 34.7
200×200 .0021 .0533 .0029 .0737 33.6
250×250 .0016 .0406 .0024 .0610 36.0
270×270 .0016 .0406 .0021 .0533 32.2
300×300 .0015 .0381 .0018 .0457 29.7
325×325 .0014 .0356 .0017 .0432 30.0
400×400 .0010 .0254 .0015 .0370 36.0
500×500 .0010 .0254 .0010 .0254 25.0
635×635 .0008 .0203 .0008 .0203 25.0

Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry 0

Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry 1







Low Carbon Steel Wire Mesh Galvanized Roll For Grains Industry 2
