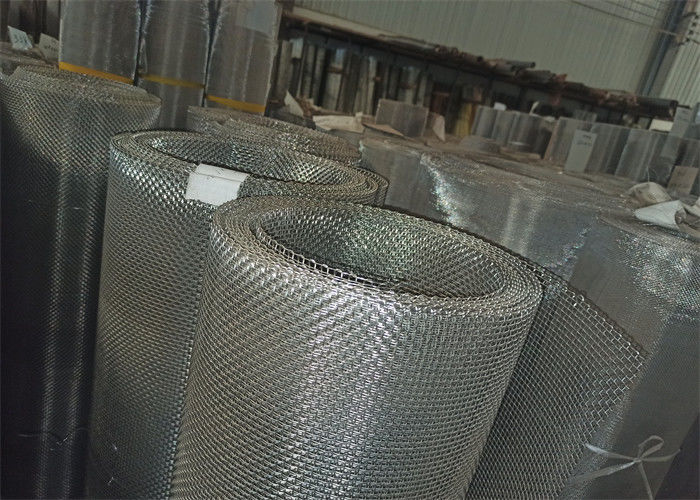

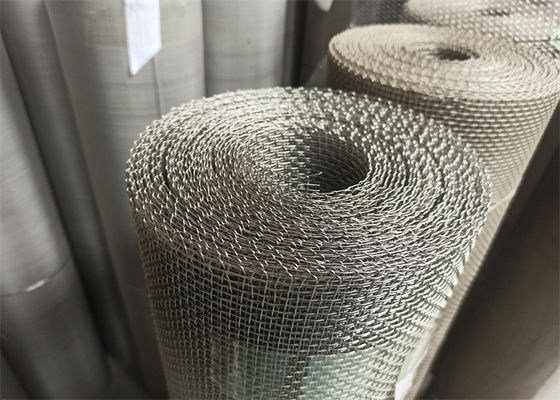

Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Large Image : Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0004

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T
Supply Ability:	400 Rolls/Week

Contact Now

Detailed Product Description

Product Name:	Electro Galvanized Wire Mesh	Mesh Count:	2-635 Mesh
Mesh Material:	As Customer Requested	Characteristic:	Copper Alloy Net Produce Healthy Fish.
Sample:	Avaliable	Type:	Steel Wire Mesh
Surface Treatment:	Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc.	Third Party Inspection:	SGS Or Other Available Inspection
Wire Dia:	0.05-1.8mm, Mesh: 6-350mesh/inch,	Appearance:	Plain Or Twill
Highlight:	Fireproof Electro Galvanized Wire Mesh , Electro Galvanized Wire Mesh Woven , Electro Galvanized Wire Mesh For Construction

Description of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

As a kind of market grade general purpose wire mesh, Galvanized Square Wire Mesh offers the following features:

Great dimensional strength and stability, smooth and uniform surfaces, excellent rust resistance, fire retardant and fireproof.

Materials: Galvanized iron wire, electro galvanized or hot dipped zinc coated wire
Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

Where Galvanized Wire Mesh is Used: Industries and constructions to sieve grain, powder, filter liquid and gas, for other purposes like safe guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.

Specifications: Please refer to lists below for reference. Sizes not listed available at customers request.

Assortment of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Crimped galvanized square wire mesh
Standard galvanized square wire mesh
Hot-dipped galvanized square wire mesh
Galvanized after woven square wire mesh
Galvanized before woven square wire mes

Application of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Square Wire Mesh is mostly used in as windows screening, safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Advantages of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost

Features of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Corrosion resistance

Anti-acid and alkali

Anti-high temperature

Technical Parameters of Fireproof Electro Galvanized Wire Mesh Woven Constructions To Sieve Grain

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
