Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cabinet Wire Mesh | Key Words: | Wire Cloth |
|---|---|---|---|
| Mesh Count: | 2-635 Mesh | Mesh Material: | As Customer Requested |
| Characteristic: | Copper Alloy Net Produce Healthy Fish. | Sample: | Avaliable |
| Type: | Steel Wire Mesh | Surface Treatment: | Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc. |
| Wire Dia: | 0.05-1.8mm, Mesh: 6-350mesh/inch, | Appearance: | Plain Or Twill |
| Technique: | Woven | Weave Style: | Plain Or Twill Dutch Or Crimped |
| Hole Shape: | Square Hole | Color: | Silver |
| Usage: | Chmical Industry | Length: | 30m/roll 50m/roll Or As Required |
| Width: | 1.22m Or At Request | Mesh: | 1-635mesh |
| Certification: | ISO9001 | ||
| Highlight: | SS316 Cabinet Wire Mesh,Cabinet Wire Mesh Woven,Security Cabinet Wire Mesh |
||

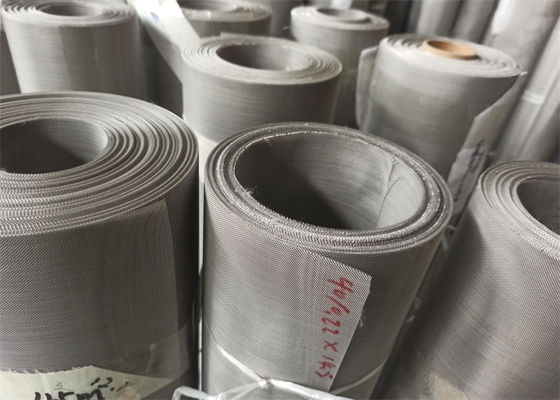

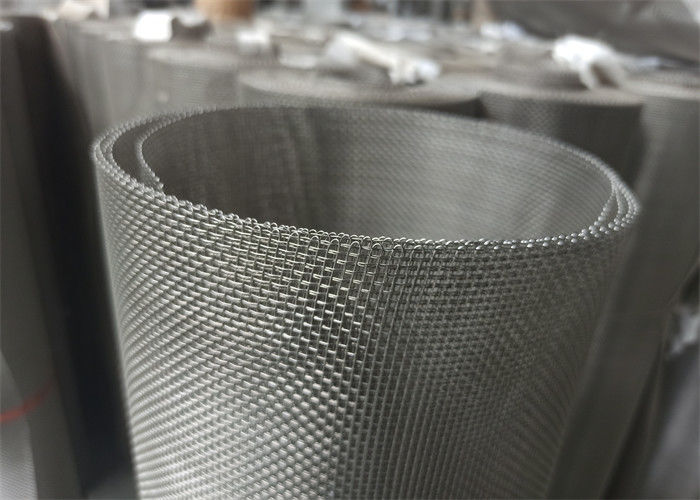

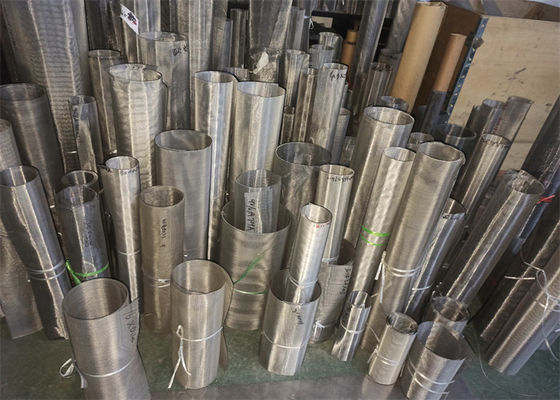

Description of 30 Mesh SS316 Woven Wire Mesh Security Cabinets Mesh
Stainless steel wire mesh is made of stainless steel wire through warp and weft woven. Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on. With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, petrochemical, automotive, new energy, food, pharmacy and others. According to the opening type and woven type, the stainless steel woven mesh can be divided into square mesh(plain weave, twill weave), dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave, optimized design.
pure quality material
standard wire diameter
standard mesh and size
uniform mesh opening
corrosion and rust resistance
anti-high temperture.
good filter performance.
long using life,low cost
Features of 30 Mesh SS316 Woven Wire Mesh Security Cabinets Mesh
Corrosion resistance.,
Anti-acid and alkali,
Anti-high temperature.
| Meshes perLinear inch | Wire diameter | Width of opening | Open area | ||
| inch | mm | inch | mm | percent | |
| 1×1 | .157 | 4.0 | .84 | 21.4 | 71.0 |
| 2×2 | .118 | 2.5 | .38 | 10.2 | 64.0 |
| 3×3 | .079 | 2.0 | .25 | 6.4 | 58.0 |
| 4×4 | .063 | 1.6 | .187 | 4.75 | 56.0 |
| 4×4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
| 5×5 | .055 | 1.4 | .14 | 3.68 | 52.0 |
| 6×6 | .047 | 1.2 | .12 | 3.03 | 51.0 |
| 8×8 | 0.43 | 1.1 | .08 | 2.08 | 42.0 |
| 10×10 | .039 | 1.0 | .06 | 1.54 | 36.0 |
| 10×10 | .020 | .51 | .080 | 2.03 | 64.0 |
| 12×12 | .023 | .584 | .060 | 1.52 | 51.8 |
| 12×12 | .020 | .508 | .063 | 1.60 | 57.2 |
| 14×14 | .023 | .584 | .048 | 1.22 | 45.2 |
| 14×14 | .020 | .508 | .051 | 1.30 | 51.0 |
| 16×16 | .018 | .457 | .0445 | 1.13 | 50.7 |
| 18×18 | .017 | .432 | .0386 | .98 | 48.3 |
| 20×20 | .020 | .508 | .0300 | .76 | 36.0 |
| 20×20 | .016 | .406 | .0340 | .86 | 46.2 |
| 24×24 | .014 | .356 | .0277 | .70 | 44.2 |
| 30×30 | .013 | .330 | .0203 | .52 | 37.1 |
| 30×30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30×30 | .009 | .229 | .0243 | .62 | 53.1 |
| 35×35 | .011 | .279 | .0176 | .45 | 37.9 |
| 40×40 | .010 | .254 | .0150 | .38 | 36.0 |
| 50×50 | .009 | .229 | .0110 | .28 | 30.3 |
| 50×50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60×60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60×60 | .007 | .178 | .0097 | .25 | 33.9 |
| 70×70 | .0065 | .165 | .0078 | .20 | 29.8 |
| 80×80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80×80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90×90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100×100 | .0045 | .114 | .0055 | .14 | 30.3 |
| 100×100 | .004 | .102 | .0060 | .15 | 36.0 |
| 100×100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 110×110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
| 120×120 | .0037 | .0940 | .0046 | .1168 | 30.7 |
| 150×150 | .0026 | .0060 | .0041 | .1041 | 37.4 |
| 160×160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180×180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200×200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 250×250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
| 270×270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
| 300×300 | .0015 | .0381 | .0018 | .0457 | 29.7 |
| 325×325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
| 400×400 | .0010 | .0254 | .0015 | .0370 | 36.0 |
| 500×500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
| 635×635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
