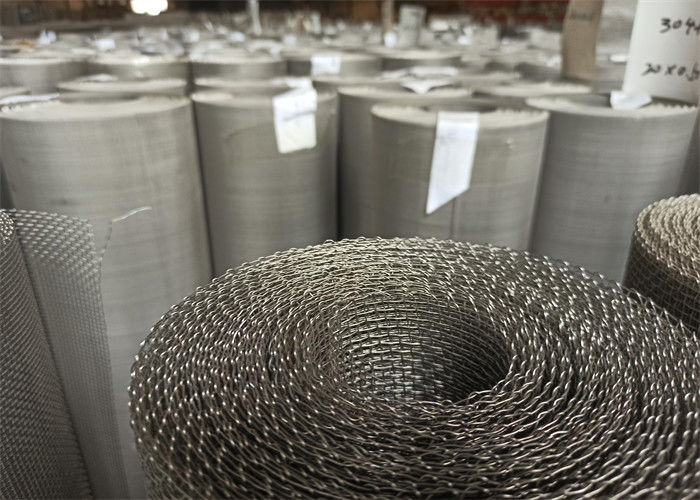

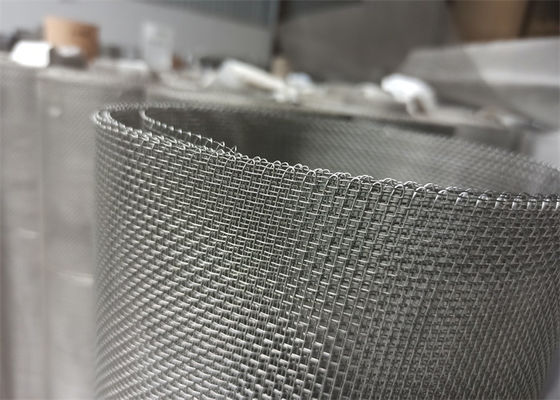

316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Large Image : 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0004

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T
Supply Ability:	400 Rolls/Week

Contact Now

Detailed Product Description

Product Name:	316L Stainless Steel Woven Wire Mesh	Mesh Count:	2-635 Mesh
Mesh Material:	As Customer Requested	Sample:	Avaliable
Type:	Stainless Steel Wire Mesh	Third Party Inspection:	SGS Or Other Available Inspection
Wire Dia:	0.05-1.8mm, Mesh: 6-350mesh/inch,	Appearance:	Plain Or Twill
Certificates:	ISO	Thickness:	Customers' Request
Length:	30 M/roll	Craftwork:	Woven
Mesh:	10 - 100 Mesh	Shape:	Customers' Request
Mesh Width:	Standard Less Than 2000mm
Highlight:	316L Stainless Steel Woven Wire Mesh , SS Woven Wire Mesh , ISO9001 Stainless Woven Wire Mesh

Description of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Stainless steel woven wire mesh comes in different types, each designed to cater to specific needs and requirements.

Plain weave wire mesh, where the wires are woven in an over-and-under pattern, creating a square opening. This type provides excellent stability and a high level of filtration accuracy, making it ideal for fine particle separation, insect screens, and sieving applications.

Twill weave wire mesh, which is characterized by a diagonal pattern created by the interlacing of wires. Twill weave mesh offers enhanced strength and flexibility, making it suitable for heavy-duty applications such as conveyor belts, hydraulic filters, and architectural applications like facades and interior design.

Dutch weave wire mesh is a specialized type that features a tight weave with smaller wire openings. It is created by using thicker wires in the warp direction and finer wires in the weft direction. This design provides superior filtration capabilities and is commonly used in applications requiring precise filtration, such as oil and gas, pharmaceutical, and chemical industries.

Reverse Dutch weave wire mesh is another variant where the thicker wires are used in the weft direction and finer wires in the warp direction. This configuration results in a high flow rate and excellent mechanical stability, making it suitable for pressure filtration, vacuum filters, and liquid-solid separation.

Material of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

SUS 201,302,304,304L,310,316,316L,321,etc.

Assortment of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Electro galvanized square mesh
Hot-dipped galvanized after weaving

Stainless Steel Square Wire Mesh

Application of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Square Wire Mesh is mostly used in as windows screening, safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Advantages of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost

Features of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.

Technical Parameters of 316L Stainless Steel Woven Wire Mesh For For High Mechanical Loads

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
