Anping Win Win Wire Mesh Manufacturing Co., Ltd
Product Details:
Payment & Shipping Terms:
|
Product Name: | Air Vent Mesh | Kye Words: | Stainless Steel Woven Wire Mesh |
---|---|---|---|
Mesh Count: | 2-635 Mesh | Sample: | Avaliable |
Type: | Stainless Steel Wire Mesh | Surface Treatment: | Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc. |
Third Party Inspection: | SGS Or Other Available Inspection | Mesh Material: | As Customer Requested |
Wire Dia: | 0.05-1.8mm, Mesh: 6-350mesh/inch, | Appearance: | Plain Or Twill |
Technique: | Woven | Weave Style: | Plain Or Twill Dutch Or Crimped |
Application: | Woven Wire Mesh,Filters,Screen | Material: | Stainless Steel Wire |
Highlight: | 304L Stainless Steel Woven Wire Mesh,Woven Wire Mesh Stainless Steel,Stainless Steel Air Vent Mesh |

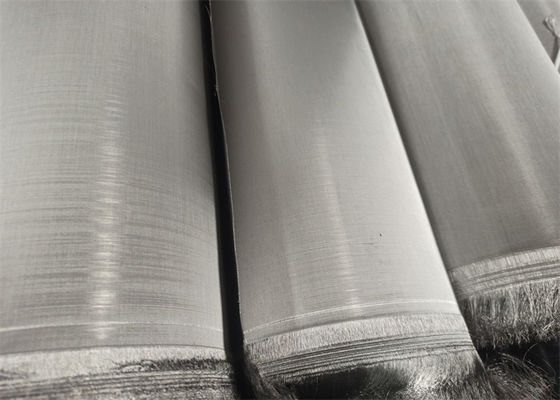

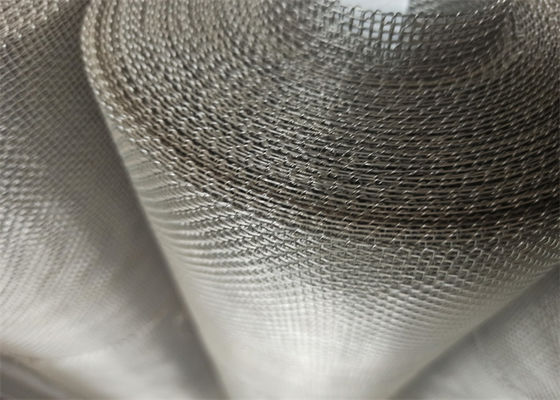

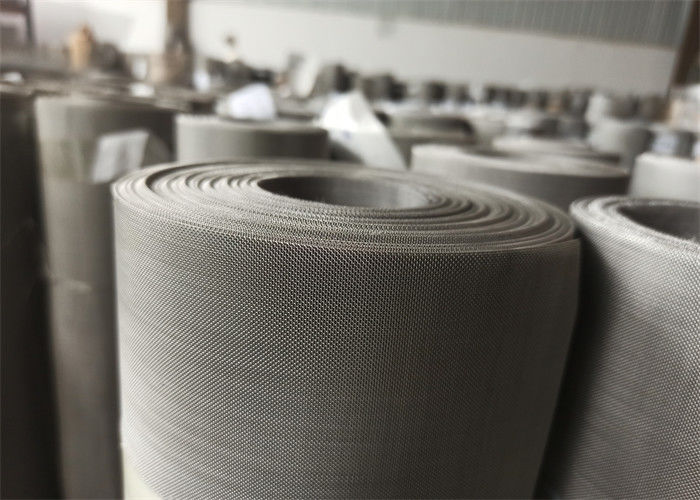

Description of 304L Stainless Steel Woven Wire Mesh Air Vent Mesh Sample Avaliable
Stainless steel wire mesh products including the special used high level square mesh, dutch weave mesh and normal stainless steel wire mesh used for industries like automotive, environmental protection, high-strength screening and protection, oil drilling and so on.

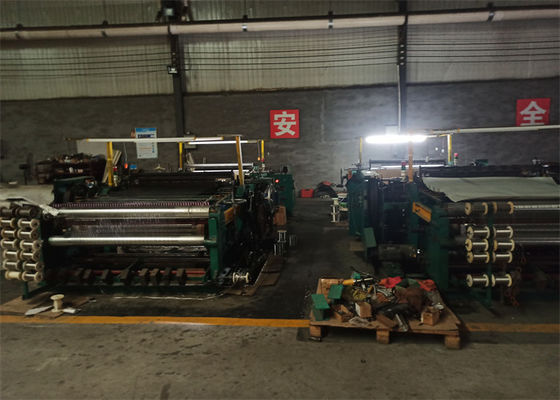

The square mesh count ranges from 1 mesh to 635 mesh, dutch weave mesh can reach 3500 mesh, and diameter is from 0.015~8mm, the width can reach 6 m, and all can be produced according to the national standard, ISO, ASTM, DIN and other standards. YKM's high-precision fine mesh products are produced by imported looms from Germany and Japan and new intelligent NC looms independently developed.
The mesh are with the characteristics of good mesh flatness, high filtration accuracy and stable performance. Precision pressure filters, fuel filters and vacuum filters made by deep processing are widely used in industries like aerospace, petroleum, chemical, fiber, rubber, metallurgy, medicine, food and so on.
Additionally, stainless steel screen is strong and versatile enough to be installed into window and door frames in order to resist vandals and keep out insects. Government agencies and construction companies rely on stainless steel screen to provide protection to the interior of buildings from broken glass and debris caused by inclement weather. Panic room manufacturers install stainless steel screen and stainless wire mesh inside walls and doors to provide enhanced security from intruders. Stainless mesh also works well to guard roof gutters from tree leaves and other debris.
if need, welcome to contact us!
pure quality material
standard wire diameter
standard mesh and size
uniform mesh opening
corrosion and rust resistance
anti-high temperture.
good filter performance.
long using life,low cost
Features of 304L Stainless Steel Woven Wire Mesh Air Vent Mesh
Corrosion resistance.,
Anti-acid and alkali,
Anti-high temperature.
Technical Parameters of 304L Stainless Steel Woven Wire Mesh Air Vent Mesh
Meshes perLinear inch | Wire diameter | Width of opening | Open area | ||
inch | mm | inch | mm | percent | |
1×1 | .157 | 4.0 | .84 | 21.4 | 71.0 |
2×2 | .118 | 2.5 | .38 | 10.2 | 64.0 |
3×3 | .079 | 2.0 | .25 | 6.4 | 58.0 |
4×4 | .063 | 1.6 | .187 | 4.75 | 56.0 |
4×4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
5×5 | .055 | 1.4 | .14 | 3.68 | 52.0 |
6×6 | .047 | 1.2 | .12 | 3.03 | 51.0 |
8×8 | 0.43 | 1.1 | .08 | 2.08 | 42.0 |
10×10 | .039 | 1.0 | .06 | 1.54 | 36.0 |
10×10 | .020 | .51 | .080 | 2.03 | 64.0 |
12×12 | .023 | .584 | .060 | 1.52 | 51.8 |
12×12 | .020 | .508 | .063 | 1.60 | 57.2 |
14×14 | .023 | .584 | .048 | 1.22 | 45.2 |
14×14 | .020 | .508 | .051 | 1.30 | 51.0 |
16×16 | .018 | .457 | .0445 | 1.13 | 50.7 |
18×18 | .017 | .432 | .0386 | .98 | 48.3 |
20×20 | .020 | .508 | .0300 | .76 | 36.0 |
20×20 | .016 | .406 | .0340 | .86 | 46.2 |
24×24 | .014 | .356 | .0277 | .70 | 44.2 |
30×30 | .013 | .330 | .0203 | .52 | 37.1 |
30×30 | .012 | .305 | .0213 | .54 | 40.8 |
30×30 | .009 | .229 | .0243 | .62 | 53.1 |
35×35 | .011 | .279 | .0176 | .45 | 37.9 |
40×40 | .010 | .254 | .0150 | .38 | 36.0 |
50×50 | .009 | .229 | .0110 | .28 | 30.3 |
50×50 | .008 | .203 | .0120 | .31 | 36.0 |
60×60 | .0075 | .191 | .0092 | .23 | 30.5 |
60×60 | .007 | .178 | .0097 | .25 | 33.9 |
70×70 | .0065 | .165 | .0078 | .20 | 29.8 |
80×80 | .0065 | .165 | .0060 | .15 | 23.0 |
80×80 | .0055 | .140 | .0070 | .18 | 31.4 |
90×90 | .005 | .127 | .0061 | .16 | 30.1 |
100×100 | .0045 | .114 | .0055 | .14 | 30.3 |
100×100 | .004 | .102 | .0060 | .15 | 36.0 |
100×100 | .0035 | .089 | .0065 | .17 | 42.3 |
110×110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
120×120 | .0037 | .0940 | .0046 | .1168 | 30.7 |
150×150 | .0026 | .0060 | .0041 | .1041 | 37.4 |
160×160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
180×180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
200×200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
250×250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
270×270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
300×300 | .0015 | .0381 | .0018 | .0457 | 29.7 |
325×325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
400×400 | .0010 | .0254 | .0015 | .0370 | 36.0 |
500×500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
635×635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
