304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia For Cage

304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage
304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage

Large Image :  304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia For Cage

Product Details:
Place of Origin: China
Brand Name: Giant Shuttle
Certification: ISO9001
Model Number: WW-0004
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: In Carton,Wooden box,Pallet or In Bulk
Delivery Time: 7Days after receive the deposit
Payment Terms: L/C, T/T
Supply Ability: 400 Rolls/Week
Detailed Product Description
Product Name: Woven Wire Mesh Type: Stainless Steel Wire Mesh
Mesh Count: 2-635 Mesh Mesh Material: As Customer Requested
Characteristic: Copper Alloy Net Produce Healthy Fish. Sample: Avaliable
Third Party Inspection: SGS Or Other Available Inspection Wire Dia: 0.05-1.8mm, Mesh: 6-350mesh/inch,
Appearance: Plain Or Twill Material: 316,304
Wire Diameter: 0.02-2mm Mesh: 1-635mesh
Feature: Corrosion Resistance,Anti-corrosion,alkali Resist,alkali-resisting Etc,Flexibility
Highlight:

304 Stainless Steel Woven Wire Mesh

,

Woven Stainless Steel Wire Mesh

,

Cage Wire Mesh Stainless Steel

Description of 304 Stainless Steel Woven Wire Mesh For Cage

The popular specifications featured here range in opening size from approximately 1/2" to 1/4" and are commonly requested items that industrial and non-industrial users select for their specific wire mesh requirements. Many of these items are stocked in full, 100 ft rolls and can be provided in conveniently sized sheets, like 4 ft x 10 ft or 3 ft x 25 ft, for example.



Many of these meshes are specified for use in heat treating, food processing, construction and heavy duty particle separation. The automotive, energy, oil and security industries routinely use many of these meshes. Architect and designers use these meshes for unique and interesting designs like infill panels, room dividers and decorative signage. Some users also use some of these meshes for caging and enclosures for pets, small nuisance animals and birds.



Material of 304 Stainless Steel Woven Wire Mesh For Cage

SUS 201,302,304,304L,310,316,316L,321,etc.

Assortment of 304 Stainless Steel Woven Wire Mesh For Cage

Electro galvanized square mesh
Hot-dipped galvanized after weaving
Stainless Steel Square Wire Mesh

Application of 304 Stainless Steel Woven Wire Mesh For Cage

Square Wire Mesh is mostly used in as windows screening, safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Advantages of 304 Stainless Steel Woven Wire Mesh For Cage


pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost



Features of 304 Stainless Steel Woven Wire Mesh For Cage



Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.



Technical Parameters of 304 Stainless Steel Woven Wire Mesh For Cage

Meshes perLinear inch Wire diameter Width of opening Open area
inch mm inch mm percent
1×1 .157 4.0 .84 21.4 71.0
2×2 .118 2.5 .38 10.2 64.0
3×3 .079 2.0 .25 6.4 58.0
4×4 .063 1.6 .187 4.75 56.0
4×4 .047 1.19 .203 5.16 65.9
5×5 .055 1.4 .14 3.68 52.0
6×6 .047 1.2 .12 3.03 51.0
8×8 0.43 1.1 .08 2.08 42.0
10×10 .039 1.0 .06 1.54 36.0
10×10 .020 .51 .080 2.03 64.0
12×12 .023 .584 .060 1.52 51.8
12×12 .020 .508 .063 1.60 57.2
14×14 .023 .584 .048 1.22 45.2
14×14 .020 .508 .051 1.30 51.0
16×16 .018 .457 .0445 1.13 50.7
18×18 .017 .432 .0386 .98 48.3
20×20 .020 .508 .0300 .76 36.0
20×20 .016 .406 .0340 .86 46.2
24×24 .014 .356 .0277 .70 44.2
30×30 .013 .330 .0203 .52 37.1
30×30 .012 .305 .0213 .54 40.8
30×30 .009 .229 .0243 .62 53.1
35×35 .011 .279 .0176 .45 37.9
40×40 .010 .254 .0150 .38 36.0
50×50 .009 .229 .0110 .28 30.3
50×50 .008 .203 .0120 .31 36.0
60×60 .0075 .191 .0092 .23 30.5
60×60 .007 .178 .0097 .25 33.9
70×70 .0065 .165 .0078 .20 29.8
80×80 .0065 .165 .0060 .15 23.0
80×80 .0055 .140 .0070 .18 31.4
90×90 .005 .127 .0061 .16 30.1
100×100 .0045 .114 .0055 .14 30.3
100×100 .004 .102 .0060 .15 36.0
100×100 .0035 .089 .0065 .17 42.3
110×110 .0040 .1016 .0051 .1295 30.7
120×120 .0037 .0940 .0046 .1168 30.7
150×150 .0026 .0060 .0041 .1041 37.4
160×160 .0025 .0635 .0038 .0965 36.4
180×180 .0023 .0584 .0033 .0838 34.7
200×200 .0021 .0533 .0029 .0737 33.6
250×250 .0016 .0406 .0024 .0610 36.0
270×270 .0016 .0406 .0021 .0533 32.2
300×300 .0015 .0381 .0018 .0457 29.7
325×325 .0014 .0356 .0017 .0432 30.0
400×400 .0010 .0254 .0015 .0370 36.0
500×500 .0010 .0254 .0010 .0254 25.0
635×635 .0008 .0203 .0008 .0203 25.0

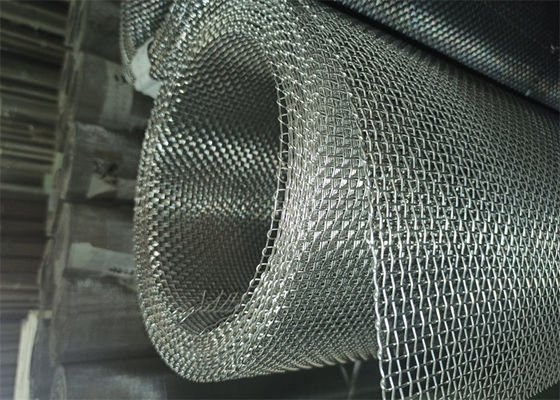

304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 0

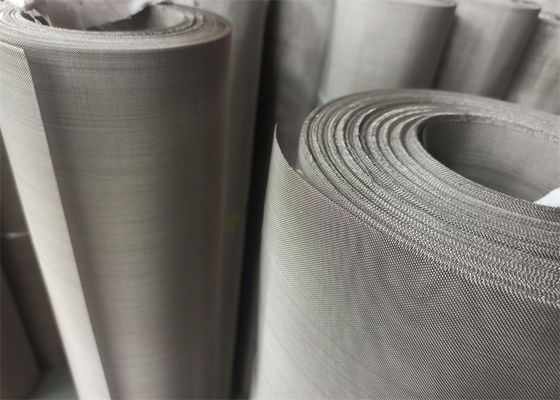

304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 1

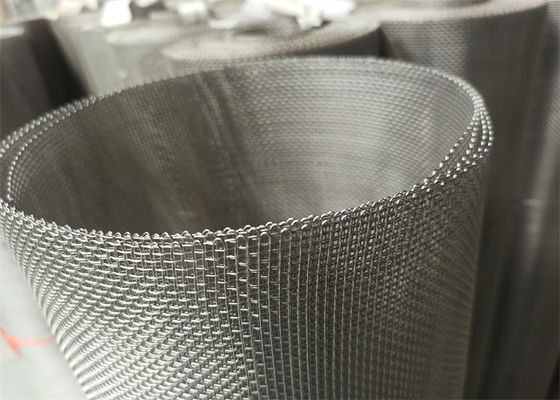

304 Stainless Steel Woven Wire Mesh 0.05mm-1.8mm Dia  For Cage 2
