Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Woven Wire Mesh | Key Words: | Woven Wire Mesh |
|---|---|---|---|
| Mesh Count: | 2-635 Mesh | Mesh Material: | As Customer Requested |
| Characteristic: | Copper Alloy Net Produce Healthy Fish. | Sample: | Avaliable |
| Type: | Stainless Steel Wire Mesh | Third Party Inspection: | SGS Or Other Available Inspection |
| Wire Dia: | 0.05-1.8mm, Mesh: 6-350mesh/inch, | Appearance: | Plain Or Twill |
| Technique: | Woven | Weave Style: | Plain Or Twill Dutch Or Crimped |
| Application: | Filters | Material: | Stainless Steel Wire,316,304 |
| Highlight: | Dutch Woven Wire Mesh,Twill Dutch Weave Wire Mesh,Woven Wire Mesh SUS304 |
||

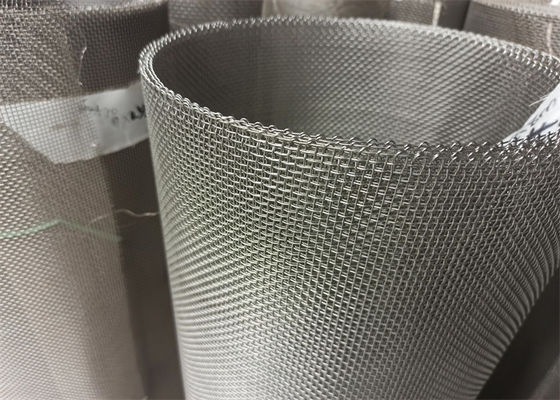

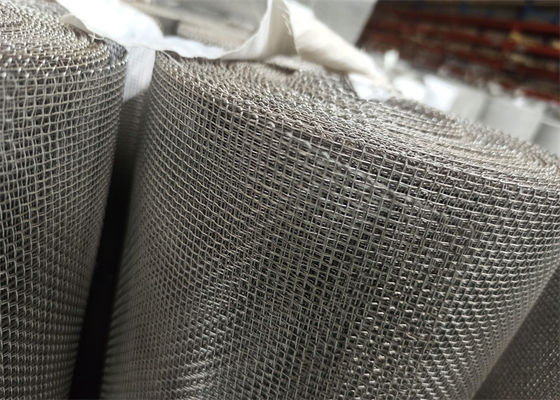

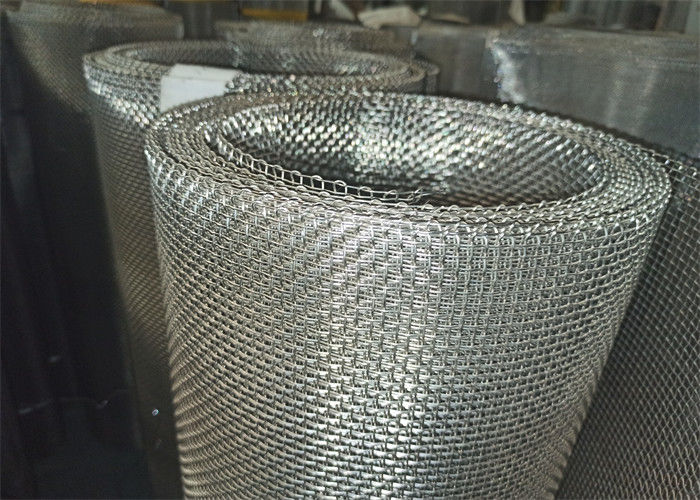

Description of Twill Dutch Woven Wire Mesh SUS304 Stainless Steel For Vent
Stainless steel wire mesh, specifically Type 304 stainless steel, is the most popular material for producing woven wire mesh products.Often referred to as 18-8 (18% chromium, 8% nickel), 304 is a basic stainless alloy that offers a combination of corrosion resistance, heat resistance, strength and affordability.
Type 316 is the second-most common form of stainless steel, which is a great option for industrial users seeking a higher level of corrosion resistance, particularly in salt-water environments. It incorporates about 2 to 3 percent molybdenum, which increases corrosion resistance, particularly against chlorides and other industrial solvents.
pure quality material
standard wire diameter
standard mesh and size
uniform mesh opening
corrosion and rust resistance
anti-high temperture.
good filter performance.
long using life,low cost
Features of Twill Dutch Woven Wire Mesh SUS304 Stainless Steel For Vent
Corrosion resistance.,
Anti-acid and alkali,
Anti-high temperature.
| Meshes perLinear inch | Wire diameter | Width of opening | Open area | ||
| inch | mm | inch | mm | percent | |
| 1×1 | .157 | 4.0 | .84 | 21.4 | 71.0 |
| 2×2 | .118 | 2.5 | .38 | 10.2 | 64.0 |
| 3×3 | .079 | 2.0 | .25 | 6.4 | 58.0 |
| 4×4 | .063 | 1.6 | .187 | 4.75 | 56.0 |
| 4×4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
| 5×5 | .055 | 1.4 | .14 | 3.68 | 52.0 |
| 6×6 | .047 | 1.2 | .12 | 3.03 | 51.0 |
| 8×8 | 0.43 | 1.1 | .08 | 2.08 | 42.0 |
| 10×10 | .039 | 1.0 | .06 | 1.54 | 36.0 |
| 10×10 | .020 | .51 | .080 | 2.03 | 64.0 |
| 12×12 | .023 | .584 | .060 | 1.52 | 51.8 |
| 12×12 | .020 | .508 | .063 | 1.60 | 57.2 |
| 14×14 | .023 | .584 | .048 | 1.22 | 45.2 |
| 14×14 | .020 | .508 | .051 | 1.30 | 51.0 |
| 16×16 | .018 | .457 | .0445 | 1.13 | 50.7 |
| 18×18 | .017 | .432 | .0386 | .98 | 48.3 |
| 20×20 | .020 | .508 | .0300 | .76 | 36.0 |
| 20×20 | .016 | .406 | .0340 | .86 | 46.2 |
| 24×24 | .014 | .356 | .0277 | .70 | 44.2 |
| 30×30 | .013 | .330 | .0203 | .52 | 37.1 |
| 30×30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30×30 | .009 | .229 | .0243 | .62 | 53.1 |
| 35×35 | .011 | .279 | .0176 | .45 | 37.9 |
| 40×40 | .010 | .254 | .0150 | .38 | 36.0 |
| 50×50 | .009 | .229 | .0110 | .28 | 30.3 |
| 50×50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60×60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60×60 | .007 | .178 | .0097 | .25 | 33.9 |
| 70×70 | .0065 | .165 | .0078 | .20 | 29.8 |
| 80×80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80×80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90×90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100×100 | .0045 | .114 | .0055 | .14 | 30.3 |
| 100×100 | .004 | .102 | .0060 | .15 | 36.0 |
| 100×100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 110×110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
| 120×120 | .0037 | .0940 | .0046 | .1168 | 30.7 |
| 150×150 | .0026 | .0060 | .0041 | .1041 | 37.4 |
| 160×160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180×180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200×200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 250×250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
| 270×270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
| 300×300 | .0015 | .0381 | .0018 | .0457 | 29.7 |
| 325×325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
| 400×400 | .0010 | .0254 | .0015 | .0370 | 36.0 |
| 500×500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
| 635×635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
