SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

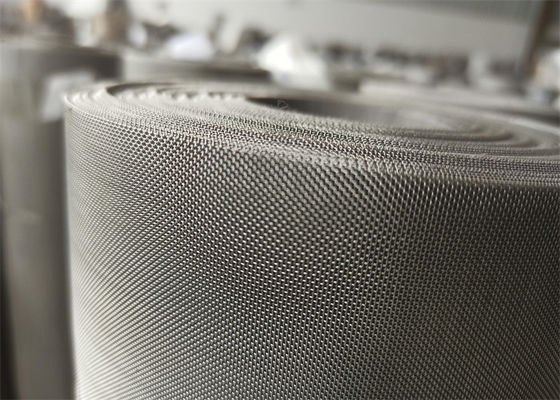

Large Image : SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Product Details:

Place of Origin:	China
Brand Name:	Giant Shuttle
Certification:	ISO9001
Model Number:	WW-0004

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	In Carton,Wooden box,Pallet or In Bulk
Delivery Time:	7Days after receive the deposit
Payment Terms:	L/C, T/T
Supply Ability:	400 Rolls/Week

Contact Now

Detailed Product Description

Product Name:	Plain Dutch Weave Mesh	Mesh Count:	2-635 Mesh
Mesh Material:	As Customer Requested	Characteristic:	Copper Alloy Net Produce Healthy Fish.
Sample:	Avaliable	Type:	Steel Wire Mesh
Surface Treatment:	Electroplating, Hot-dipped Galvanizing, Powder Coating, Etc.	Third Party Inspection:	SGS Or Other Available Inspection
Wire Dia:	0.05-1.8mm, Mesh: 6-350mesh/inch,	Appearance:	Plain Or Twill
Highlight:	SGS Plain Dutch Weave Mesh , Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Description of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh, used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Material of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

SUS 201,302,304,304L,310,316,316L,321,etc.

Assortment of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Electro galvanized square mesh
Hot-dipped galvanized after weaving

Stainless Steel Square Wire Mesh

Application of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Petroleum & Chemical

Environmental Protection

Mining

Aerospace

Paper Making

Electronic

Metallurgical

Food & Pharmaceutical

Filtration & Separation

Advantages of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost

Features of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.

Technical Parameters of SGS Plain Dutch Weave Mesh Roll , SS316L Stainless Woven Mesh

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
