Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Woven Wire Mesh Screen | Mesh Count: | 2-635 Mesh |
|---|---|---|---|
| Mesh Material: | As Customer Requested | Sample: | Avaliable |
| Type: | Stainless Steel Wire Mesh | Surface Treatment: | Stainless Steel |
| Third Party Inspection: | SGS Or Other Available Inspection | Wire Dia: | 0.05-1.8mm, Mesh: 6-350mesh/inch, |
| Appearance: | Plain Or Twill | Weave Method: | Dutch/Plain/Twill Weave |
| Packing: | Roll, Sheet, Carton | Specification: | 5, 10, 20, 30, 40 Mesh |
| Opening Size: | 0.02mm-23.37mm | Weave: | Plain Weave |
| Business Type: | Factory | Mesh Width: | Standard Less Than 2000mm |
| Advantages: | Fireproof | ||
| Highlight: | 304L Stainless Steel Woven Wire Mesh,Stainless Steel Woven Wire Mesh Screen,Electro Galvanized Square Mesh |
||

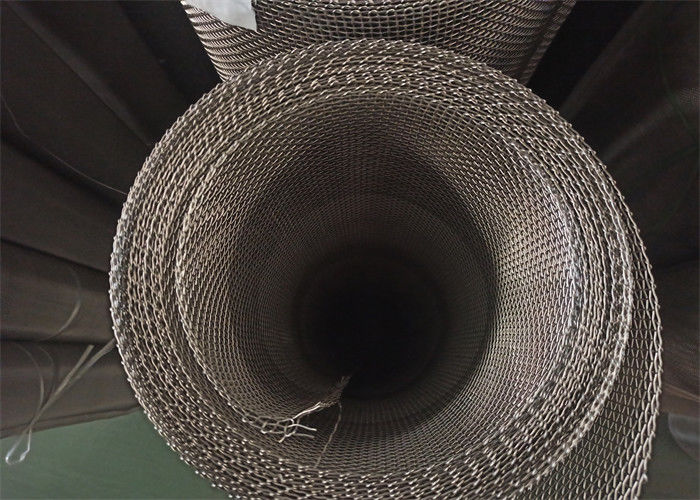

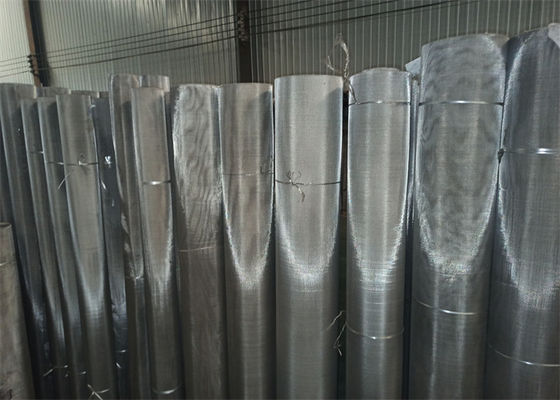

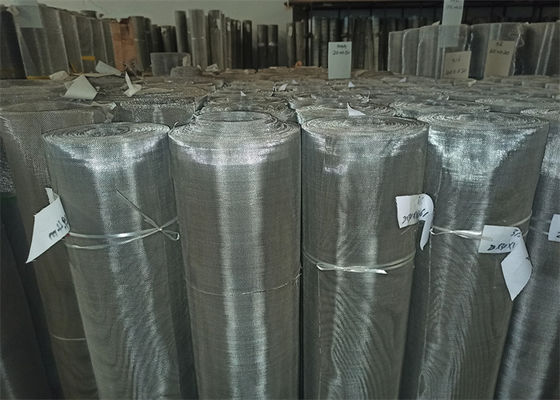

304L Stainless Steel Woven Wire Mesh Screen / Electro Galvanized Square Mesh
Stainless steel mesh is the most popular woven screen in the industrial world. It is known for its corrosion resistance and strength. Stainless steel wire mesh contains chromium and nickel in addition to steel. It is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.
pure quality material
standard wire diameter
standard mesh and size
uniform mesh opening
corrosion and rust resistance
anti-high temperture.
good filter performance.
long using life,low cost
Features of 304L Stainless Steel Woven Wire Mesh Screen / Electro Galvanized Square Mesh
Corrosion resistance.,
Anti-acid and alkali,
Anti-high temperature.
Technical Parameters of 304L Stainless Steel Woven Wire Mesh Screen / Electro Galvanized Square Mesh
| Meshes perLinear inch | Wire diameter | Width of opening | Open area | ||
| inch | mm | inch | mm | percent | |
| 1×1 | .157 | 4.0 | .84 | 21.4 | 71.0 |
| 2×2 | .118 | 2.5 | .38 | 10.2 | 64.0 |
| 3×3 | .079 | 2.0 | .25 | 6.4 | 58.0 |
| 4×4 | .063 | 1.6 | .187 | 4.75 | 56.0 |
| 4×4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
| 5×5 | .055 | 1.4 | .14 | 3.68 | 52.0 |
| 6×6 | .047 | 1.2 | .12 | 3.03 | 51.0 |
| 8×8 | 0.43 | 1.1 | .08 | 2.08 | 42.0 |
| 10×10 | .039 | 1.0 | .06 | 1.54 | 36.0 |
| 10×10 | .020 | .51 | .080 | 2.03 | 64.0 |
| 12×12 | .023 | .584 | .060 | 1.52 | 51.8 |
| 12×12 | .020 | .508 | .063 | 1.60 | 57.2 |
| 14×14 | .023 | .584 | .048 | 1.22 | 45.2 |
| 14×14 | .020 | .508 | .051 | 1.30 | 51.0 |
| 16×16 | .018 | .457 | .0445 | 1.13 | 50.7 |
| 18×18 | .017 | .432 | .0386 | .98 | 48.3 |
| 20×20 | .020 | .508 | .0300 | .76 | 36.0 |
| 20×20 | .016 | .406 | .0340 | .86 | 46.2 |
| 24×24 | .014 | .356 | .0277 | .70 | 44.2 |
| 30×30 | .013 | .330 | .0203 | .52 | 37.1 |
| 30×30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30×30 | .009 | .229 | .0243 | .62 | 53.1 |
| 35×35 | .011 | .279 | .0176 | .45 | 37.9 |
| 40×40 | .010 | .254 | .0150 | .38 | 36.0 |
| 50×50 | .009 | .229 | .0110 | .28 | 30.3 |
| 50×50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60×60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60×60 | .007 | .178 | .0097 | .25 | 33.9 |
| 70×70 | .0065 | .165 | .0078 | .20 | 29.8 |
| 80×80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80×80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90×90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100×100 | .0045 | .114 | .0055 | .14 | 30.3 |
| 100×100 | .004 | .102 | .0060 | .15 | 36.0 |
| 100×100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 110×110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
| 120×120 | .0037 | .0940 | .0046 | .1168 | 30.7 |
| 150×150 | .0026 | .0060 | .0041 | .1041 | 37.4 |
| 160×160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180×180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200×200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 250×250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
| 270×270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
| 300×300 | .0015 | .0381 | .0018 | .0457 | 29.7 |
| 325×325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
| 400×400 | .0010 | .0254 | .0015 | .0370 | 36.0 |
| 500×500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
| 635×635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
