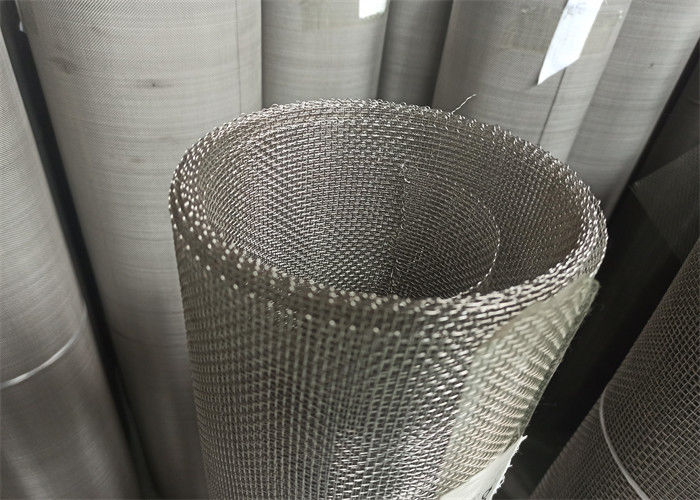

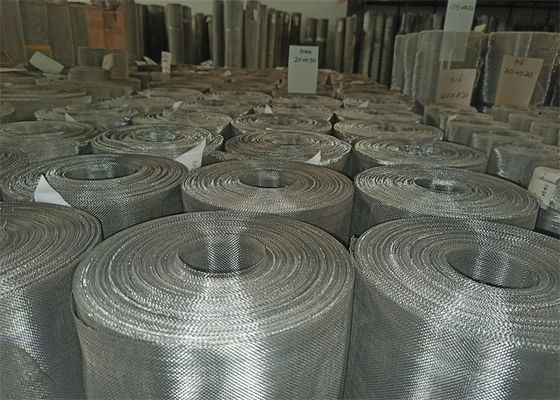

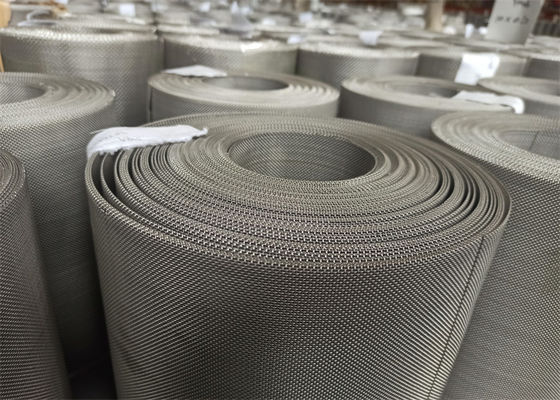

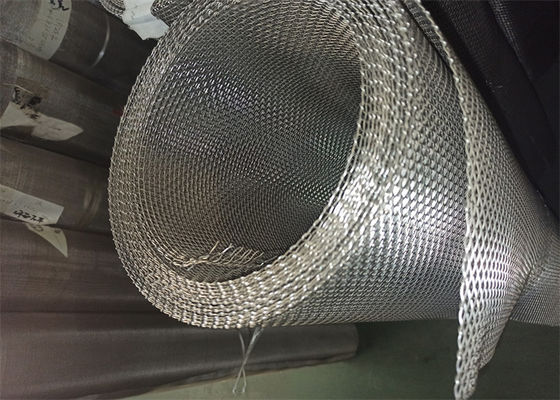

Stainless Steel 304 Square Woven Wire Mesh For Window Screen

Stainless Steel 304 Square Woven Wire Mesh For Window Screen
Stainless Steel 304 Square Woven Wire Mesh For Window Screen Stainless Steel 304 Square Woven Wire Mesh For Window Screen Stainless Steel 304 Square Woven Wire Mesh For Window Screen Stainless Steel 304 Square Woven Wire Mesh For Window Screen

Large Image :  Stainless Steel 304 Square Woven Wire Mesh For Window Screen

Product Details:
Place of Origin: China
Brand Name: Giant Shuttle
Certification: ISO9001
Model Number: WW-0004
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: In Carton,Wooden box,Pallet or In Bulk
Delivery Time: 7Days after receive the deposit
Payment Terms: L/C, T/T
Supply Ability: 400 Rolls/Week
Detailed Product Description
Product Name: Woven Wire Mesh Key Words: Wire Cloth
Mesh Count: 2-635 Mesh Mesh Material: As Customer Requested
Sample: Avaliable Type: Stainless Steel Wire Mesh
Third Party Inspection: SGS Or Other Available Inspection Wire Dia: 0.05-1.8mm, Mesh: 6-350mesh/inch,
Appearance: Plain Or Twill Length: 30m/roll 50m/roll Or As Required
Width: Usually1M Mesh: 1- 500mesh
Certification: ISO9001 Feature: Corrosion Resistance
Name: Stainless Steel Square Wire Mesh Woven Aluminum Wire Mesh Mesh Count: 2-600
Filter Rating: 1-300um
Highlight:

304 Stainless Steel Square Wire Mesh

,

Stainless Steel Square Wire Mesh Woven

Description of Stainless Steel 304 Square Woven Wire Mesh For Window Screen



Stainless steel woven wire mesh is made by interweaving stainless steel wires of warp and weft on a loom. Stainless steel wire mesh has better corrosion resistance and longer service life than galvanized woven mesh. Although galvanized woven mesh is economical and has similar uses to stainless steel woven mesh, it cannot replace stainless steel mesh in demanding environments, such as printing industry, ultra-fine mesh and high-precision filtration, as well as high-strength use environments.



304 stainless steel mesh is the most commonly used material in the field of wire mesh. 304 material has excellent corrosion resistance in most environments and is widely used in commercial and industrial fields. 304 was called 18-8 stainless steel in the early days because it contained 18% chromium and 8% nickel.


Assortment of Stainless Steel 304 Square Woven Wire Mesh For Window Screen
Electro galvanized square mesh
Hot-dipped galvanized after weaving
Stainless Steel Square Wire Mesh

Application of Stainless Steel 304 Square Woven Wire Mesh For Window Screen
Square Wire Mesh is mostly used in as windows screening, safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Advantages of Stainless Steel 304 Square Woven Wire Mesh For Window Screen

pure quality material

standard wire diameter

standard mesh and size

uniform mesh opening

corrosion and rust resistance

anti-high temperture.

good filter performance.

long using life,low cost



Features of Stainless Steel 304 Square Woven Wire Mesh For Window Screen

Corrosion resistance.,

Anti-acid and alkali,

Anti-high temperature.



Technical Parameters of Stainless Steel 304 Square Woven Wire Mesh For Window Screen

Meshes perLinear inch Wire diameter Width of opening Open area
inch mm inch mm percent
1×1 .157 4.0 .84 21.4 71.0
2×2 .118 2.5 .38 10.2 64.0
3×3 .079 2.0 .25 6.4 58.0
4×4 .063 1.6 .187 4.75 56.0
4×4 .047 1.19 .203 5.16 65.9
5×5 .055 1.4 .14 3.68 52.0
6×6 .047 1.2 .12 3.03 51.0
8×8 0.43 1.1 .08 2.08 42.0
10×10 .039 1.0 .06 1.54 36.0
10×10 .020 .51 .080 2.03 64.0
12×12 .023 .584 .060 1.52 51.8
12×12 .020 .508 .063 1.60 57.2
14×14 .023 .584 .048 1.22 45.2
14×14 .020 .508 .051 1.30 51.0
16×16 .018 .457 .0445 1.13 50.7
18×18 .017 .432 .0386 .98 48.3
20×20 .020 .508 .0300 .76 36.0
20×20 .016 .406 .0340 .86 46.2
24×24 .014 .356 .0277 .70 44.2
30×30 .013 .330 .0203 .52 37.1
30×30 .012 .305 .0213 .54 40.8
30×30 .009 .229 .0243 .62 53.1
35×35 .011 .279 .0176 .45 37.9
40×40 .010 .254 .0150 .38 36.0
50×50 .009 .229 .0110 .28 30.3
50×50 .008 .203 .0120 .31 36.0
60×60 .0075 .191 .0092 .23 30.5
60×60 .007 .178 .0097 .25 33.9
70×70 .0065 .165 .0078 .20 29.8
80×80 .0065 .165 .0060 .15 23.0
80×80 .0055 .140 .0070 .18 31.4
90×90 .005 .127 .0061 .16 30.1
100×100 .0045 .114 .0055 .14 30.3
100×100 .004 .102 .0060 .15 36.0
100×100 .0035 .089 .0065 .17 42.3
110×110 .0040 .1016 .0051 .1295 30.7
120×120 .0037 .0940 .0046 .1168 30.7
150×150 .0026 .0060 .0041 .1041 37.4
160×160 .0025 .0635 .0038 .0965 36.4
180×180 .0023 .0584 .0033 .0838 34.7
200×200 .0021 .0533 .0029 .0737 33.6
250×250 .0016 .0406 .0024 .0610 36.0
270×270 .0016 .0406 .0021 .0533 32.2
300×300 .0015 .0381 .0018 .0457 29.7
325×325 .0014 .0356 .0017 .0432 30.0
400×400 .0010 .0254 .0015 .0370 36.0
500×500 .0010 .0254 .0010 .0254 25.0
635×635 .0008 .0203 .0008 .0203 25.0

Stainless Steel 304 Square Woven Wire Mesh For Window Screen 0

Stainless Steel 304 Square Woven Wire Mesh For Window Screen 1







Stainless Steel 304 Square Woven Wire Mesh For Window Screen 2
