Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Gabion Boxes | Keyword: | Gabion Box |
|---|---|---|---|
| Processing Service: | Cutting | Installation: | Easy To Assemble And Disassemble |
| Advantages: | Economical | Cetification: | ISO |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Hight: | 1.5m |
| Port: | Tianjin | Mesh: | Hexagonal Shape |
| Selvage Wire: | 3.0-4.0mm | Package: | Wooden Pallets |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m | Wire Diamater: | 3mm~6mm Or Custom |
| Highlight: | PVC Coated Gabion Box,Gabion River Bank Protection,Gabion Baskets River Bank |
||

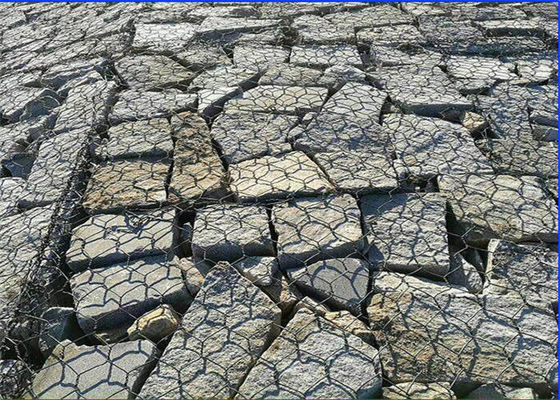

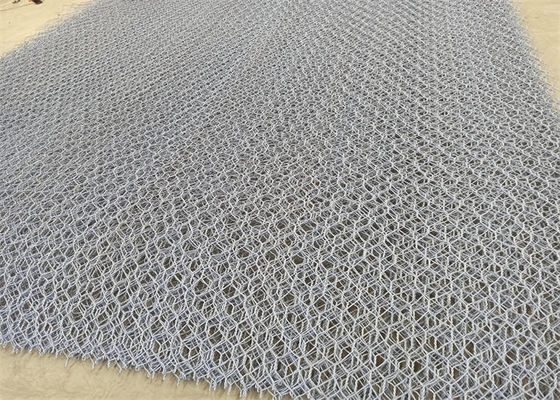

Metal Gabion Baskets are cost-effective, modular systems made of woven hexagonal steel mesh for the construction of retaining walls and other structures. The Gabion Baskets are available in different sizes and shapes, and can be easily customized to fit any project requirements. The metal wire diameter is available in 2.8mm, 3.0mm, 3.5mm, and the price is based on the details of the project. Woven gabion walls provide a cost-effective solution for a variety of applications, including erosion control, slope stabilisation, retaining walls, riverbank protection, and as a decorative element. Our gabion boxes are easy to install and are an ideal option for creating neat and attractive walls. The natural rusting metal gabion box walls are an attractive choice for any garden or outdoor space.

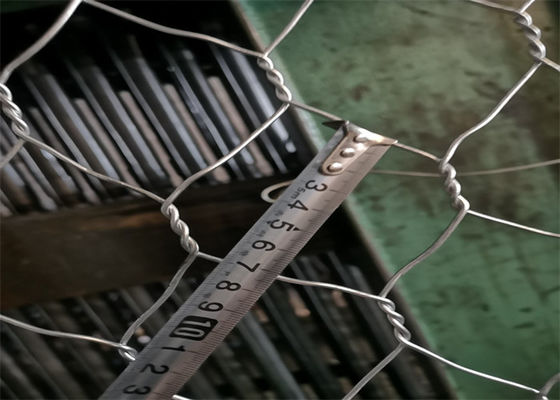

| Mesh Opening (MM) | Steel Wire Diameter (MM) | (PVC Wire)/ Inside diameter/Outer diameter(MM) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.8/3.8 |
| 80X100 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 80X120 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 100X120 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 100X150 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 120X150 | 2.7-4.0 | 2.7/3.7-3.5/4.5 |

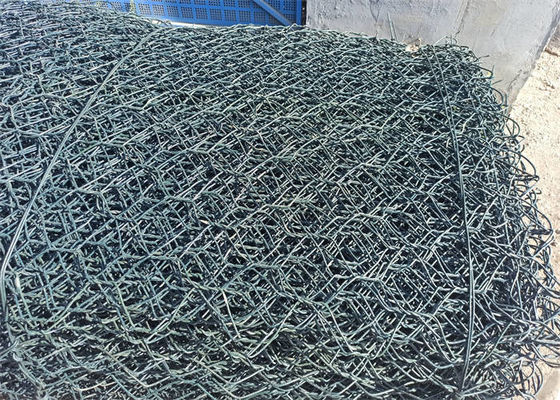

Advantages of Opening 8 * 10 PVC Coated Material Reinforce Gabion Basket For River Bank
Flexible and simple structure and can filled with most of the in-situ materials.
High permeability help vegetation grow.
Cost-effective and has a long service life.
High tensile strength and toughness.
Simple installation.
Corrosion and abrasion resistance.
Durable and stable structure.
Applications of Opening 8 * 10 PVC Coated Material Reinforce Gabion Basket For River Bank
Mass gravity retaining structures
Mechanically stabilized earth (MSE) walls
Vegetated slope reinforcement
Slope stabilization
Slope reinforcement
Channel lining and channel relocation
Slope and bank protection
Shore and stream bank protection
Weirs, groins, and jetties
Drop structures
Culvert outlet scour pads and headwalls
Bridge abutments
Erosion control
Cover or lids of woven gabions
Rockfall barriers
Road mesh
river bank
Sloe protection
Erosion control
Channel lining
Retaining wall
Vegetation greening system
