Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Galvanized Metal Gabions | Keyword: | Gabion Box |
|---|---|---|---|
| Processing Service: | Cutting | Installation: | Easy To Assemble And Disassemble |
| Advantages: | Economical | Cetification: | ISO |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Hight: | 1.5m |
| Port: | Tianjin | Mesh: | Hexagonal Shape |
| Selvage Wire: | 3.0-4.0mm | Package: | Wooden Pallets |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m | Wire Diamater: | 3mm~6mm Or Custom |
| Net Type: | Greenhouses Plastic Sun Shade Net | Sample: | Free Sample To Confirm Quality |
| Highlight: | Curved Gabion Baskets,Gabion Baskets For Retaining Walls,Metal Gabions Basket Cage |
||
Metal Gabion Baskets are woven gabion baskets made of high grade metal wires that are galvanized or PVC coated for superior durability and weather resistance. The gabions are designed for long lasting use and can be used to protect river courses and other areas from erosion and other damage. These metal gabion baskets have a high elongation of 0.2mm and can last more than 10 years with minimal maintenance. The galvanized or PVC coated surface treatment makes them corrosion resistant and they are an ideal solution for outdoor applications.
| Mesh Opening (MM) | Steel Wire Diameter (MM) | (PVC Wire)/ Inside diameter/Outer diameter(MM) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.8/3.8 |
| 80X100 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 80X120 | 2.2-3.2 | 2.2/3.2-3.0/4.0 |
| 100X120 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 100X150 | 2.4-3.5 | 2.4/3.4-3.2/4.2 |
| 120X150 | 2.7-4.0 | 2.7/3.7-3.5/4.5 |
Advantages of Curved Gabion Baskets Heavy Galvanized Metal Gabions Basket Cage For Retaining Walls
Flexible and simple structure and can filled with most of the in-situ materials.
High permeability help vegetation grow.
Cost-effective and has a long service life.
High tensile strength and toughness.
Simple installation.
Corrosion and abrasion resistance.
Durable and stable structure.
Applications of Curved Gabion Baskets Heavy Galvanized Metal Gabions Basket Cage For Retaining Walls
Mass gravity retaining structures
Mechanically stabilized earth (MSE) walls
Vegetated slope reinforcement
Slope stabilization
Slope reinforcement
Channel lining and channel relocation
Slope and bank protection
Shore and stream bank protection
Weirs, groins, and jetties
Drop structures
Culvert outlet scour pads and headwalls
Bridge abutments
Erosion control
Cover or lids of woven gabions
Rockfall barriers
Road mesh
river bank
Sloe protection
Erosion control
Channel lining

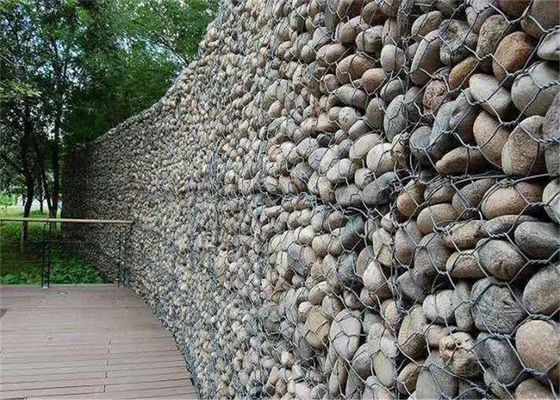

Retaining wall
Vegetation greening system
