Product Details:
Payment & Shipping Terms:
|
| Product Name: | Giant Shuttle Fence Razor Blade Wire | Key Words: | Razor Wire |
|---|---|---|---|
| Package: | Inner Waterproof Paper With Woven Bag Outside | Place Of Origin: | China |
| Surface: | Galvainzed | Material: | Galvanized Steel |
| Razor Thickness: | 0.5±0.06mm | Color: | Silver |
| Trade Method: | Factory Directly | Razor Blade Style: | BTO-30 |
| Inner Wire Dia.: | 2.5±0.2mm | Razor Barb Length: | 22±1.2mm |
| Razor Barb Width: | 15±1mm | Razor Barb Spacing: | 37±1mm |
| Razor Wire Style: | Concertina(cross) | Application: | Protective Construction |
| Highlight: | Fence Razor Blade Wire,Anti Aging Welded Razor Wire,Fence Welded Razor Wire |
||

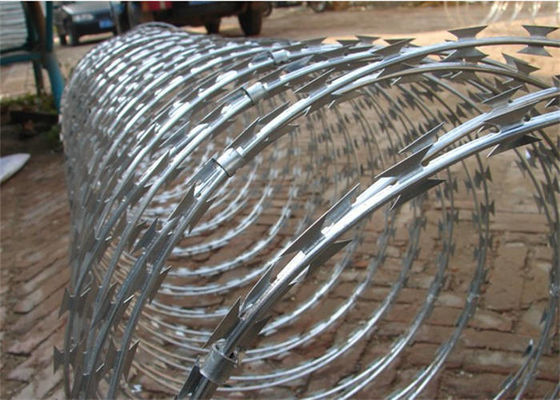

Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire
Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Materials: steel wire,low carbon steel wire
Surface treatment: galvanized, hot-dipped galvanized and electro galvanized
Type: barbed wire strand
Razor type: Spiral razor cross-barbed mesh,Single-ring razor barbed mesh
Packing:
1. Waterproof paper and woven bag, and then tied by steel strip.
2. Carton (Mostly for stainless steel concertina wire
3. Wooden Pallet
Features of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire
Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.
Applications of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire
Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Utilities.
Refineries.
Nuclear.
Energy.
Specification of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire
| Reference number | Blade style | Thickness (mm) |
Wire diameter (mm) |
Blade length (mm) |
Blade width (mm) |
Blade spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| CBT-25 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| CBT-60 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle. |
||||||
| Item | Outside diameter (mm) |
Quantity of loops | Standard length per coil (m) |
Type | Notes |
|---|---|---|---|---|---|
| RZ-01 | 450 | 33 | 7-8 | CBT-60, 65 | Single coil |
| RZ-02 | 500 | 56 | 12-13 | CBT-60, 65 | Single coil |
| RZ-03 | 700 | 56 | 13-14 | CBT-60, 65 | Single coil |
| RZ-04 | 930 | 56 | 14-15 | CBT-60, 65 | Single coil |
| RZ-05 | 450 | 56 | 8-9 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-06 | 500 | 56 | 9-10 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-07 | 600 | 56 | 10-11 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-08 | 600 | 56 | 8-10 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-09 | 700 | 56 | 10-12 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-10 | 800 | 56 | 11-13 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-11 | 900 | 56 | 12-14 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-12 | 960 | 56 | 13-15 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-13 | 980 | 56 | 14-16 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
