Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Straight Razor Wire Coil | Key Words: | Razor Wire |
|---|---|---|---|
| Class Of Security: | High Class | Diameter: | 500mm |
| Barb Length: | 1.5-3cm | Height: | 1.5m |
| Razor Blade: | BTO-22 TYPE | Package: | Inner Waterproof Paper With Woven Bag Outside |
| Blade Thickness: | 0.5mm | Type: | Razor Wire Coils |
| Mesh Type: | Diamond,Square Type | Outside Diameter: | 450mm - 980mm |
| Technique: | Perforated | Frame Finishing: | Not Coated |
| Application: | Protective Construction | Blade Choice: | 10mm / 22mm / 30mm/60mm/65mm |
| Highlight: | Straight Razor Wire Coil,Anti Corrosion Concertina Fencing Wire,Coil Razor Wire |
||

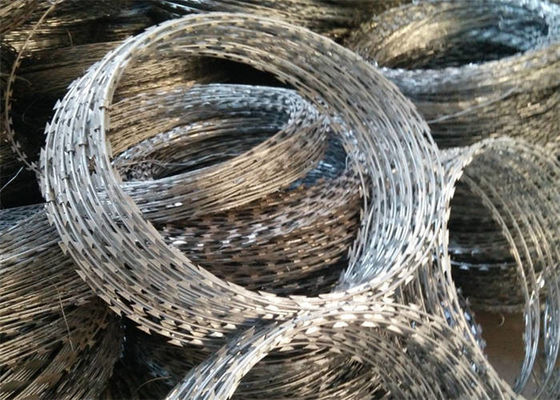

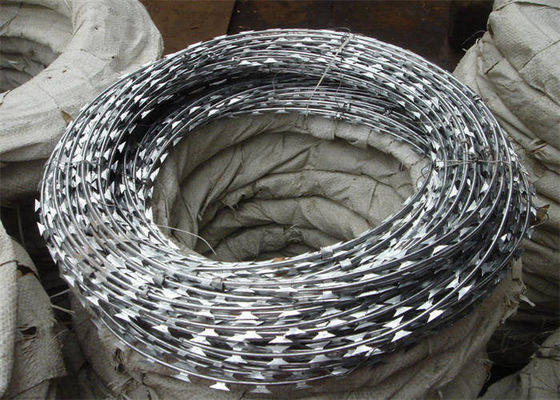

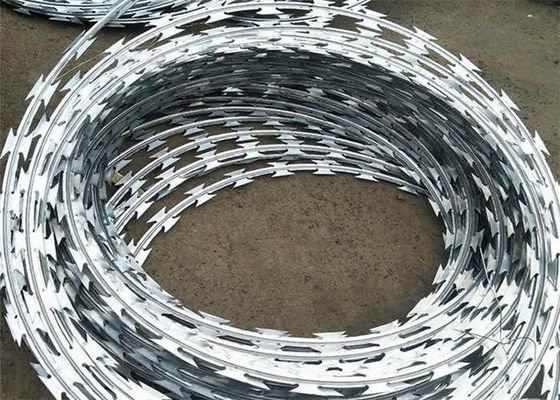

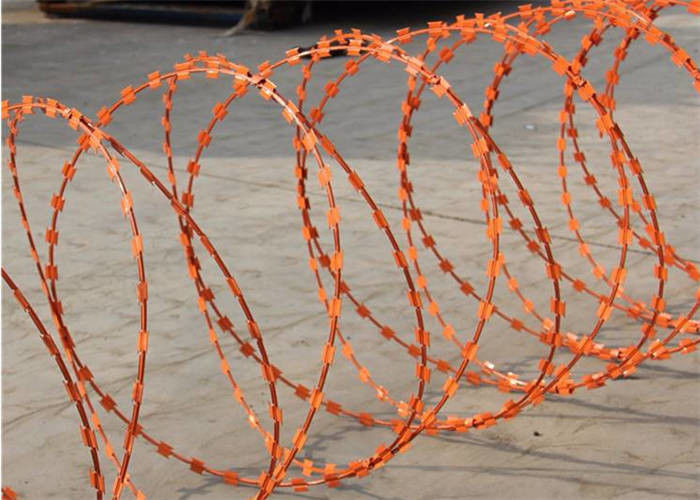

Straight Razor Wire Coil Anti Corrosion Concertina Fencing Wire
Straight razor wire, similar to the barbed wire, is used in straight lines at the top of the wire mesh fences or walls to prevent intruders and thieves from entering the places.
In more applications, the straight razor wires are welded together to form a rigid fence panel structure, which is similar to the welded wire fence panel.
Specifications of straight razor wire
Material:
Razor tape: high carbon, medium carbon steel sheet or stainless steel sheet.
Core wire: hot dipped galvanized steel wire or stainless steel wire.
Surface treatment: electric galvanized, hot dipped galvanized or PVC coating.
Razor type: BTO-22 or BTO-30. Other types can be customized according to your requirements.
Features of Straight Razor Wire Coil Anti Corrosion Concertina Fencing Wire
Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.
Applications of Straight Razor Wire Coil Anti Corrosion Concertina Fencing Wire
Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Utilities.
Refineries.
Nuclear.
Energy.
Specification of Straight Razor Wire Coil Anti Corrosion Concertina Fencing Wire
| Reference number | Blade style | Thickness (mm) |
Wire diameter (mm) |
Blade length (mm) |
Blade width (mm) |
Blade spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| CBT-25 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| CBT-60 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle. |
||||||
| Item | Outside diameter (mm) |
Quantity of loops | Standard length per coil (m) |
Type | Notes |
|---|---|---|---|---|---|
| RZ-01 | 450 | 33 | 7-8 | CBT-60, 65 | Single coil |
| RZ-02 | 500 | 56 | 12-13 | CBT-60, 65 | Single coil |
| RZ-03 | 700 | 56 | 13-14 | CBT-60, 65 | Single coil |
| RZ-04 | 930 | 56 | 14-15 | CBT-60, 65 | Single coil |
| RZ-05 | 450 | 56 | 8-9 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-06 | 500 | 56 | 9-10 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-07 | 600 | 56 | 10-11 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-08 | 600 | 56 | 8-10 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-09 | 700 | 56 | 10-12 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-10 | 800 | 56 | 11-13 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-11 | 900 | 56 | 12-14 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-12 | 960 | 56 | 13-15 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-13 | 980 | 56 | 14-16 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
