Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Features: | Sharp Blades, High Tensile Strength | Name: | Stainless Steel Concertina Wire |
|---|---|---|---|
| Key Words: | Razor Wire | Material Grade: | SS430 /SS304 /SS316 |
| Colors: | As Required | Class Of Security: | High Class |
| Sample: | Free | Barb Length: | 10mm-65mm |
| Products Name: | Single Coil Concertina Razor Wire | Loops: | 56 |
| Blade Choice: | 10mm / 22mm / 30mm/60mm/65mm | Blade Type: | Concertina |
| Coil Length: | 8-10m | Metal Type: | Iron |
| Clips: | 5clips , 3 Clips , Without Clip | Welded Type: | Welded |
| Usage: | High Security Area | Razor Type: | Double Razor |
| Application: | High Security Fencing | ||
| Highlight: | Stainless Steel Concertina Wire Manufacturers,Concertina Coil,Concertina Coil Wire |
||

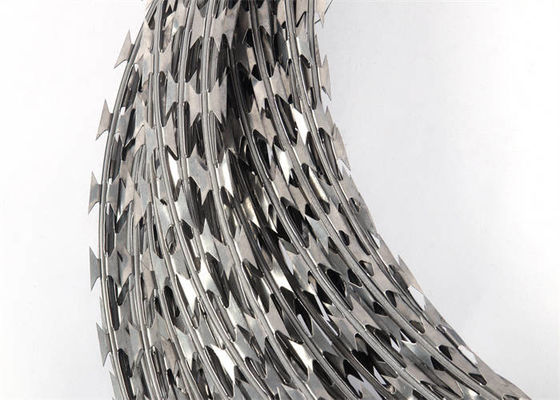

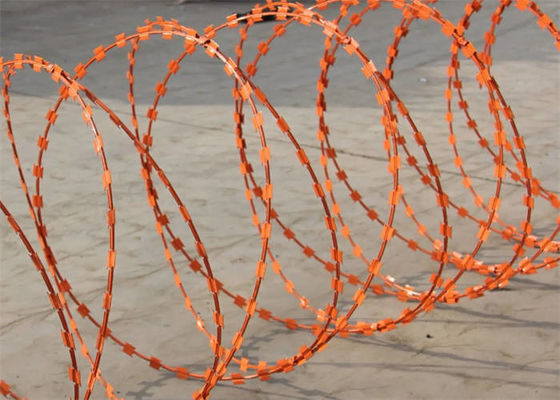

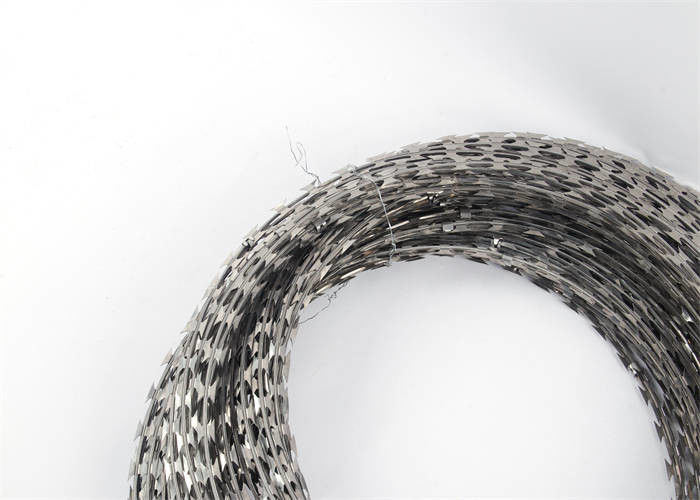

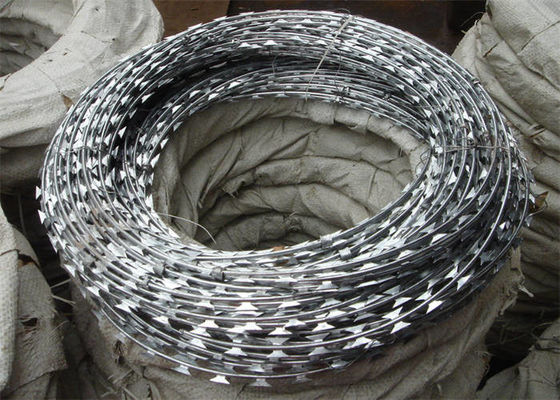

Stainless Steel Concertina Wire Manufacturers High Tensile Strength Concertina Coil
Razor wire also called concertina razor wire, as an upgraded security products of traditional barbed wire, has enhanced level of security and safety. It can be used individually along the wall or the top of the buildings to form a certain obstacles against intruders. It is also popularly used along the top of the metal fences offering strengthened barriers with sharp blades and barbs.
It is fabricated from high tensile wire onto which a multitude of razor-sharp barbs are formed at close and uniform intervals. Its sharp barbs act as both visual and psychological deterrent, making it ideal for industries such as commercial, industrial, residential and governmental areas.
Material:Stainless steel (304, 304L, 316, 316L, 430), carbon steel.
Surface treatment:Galvanized, PVC coated (green, orange, blue, yellow, etc.), E-coating (electrophoretic coating), powder coating.
Dimensions:
Razor wire cross section profile
Standard wire diameter: 2.5 mm (± 0.10 mm).
Standard blade thickness: 0.5 mm (± 0.10 mm).
Tensile strength: 1400–1600 MPa.
Zinc coating: 90 gsm – 275 gsm.
Coil diameter range: 300 mm – 1500 mm.
Loops per coil: 30–80.
Stretch length range: 4 m – 15 m.
Features of Stainless Steel Concertina Wire Manufacturers High Tensile Strength Concertina Coil
Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.
Applications of Stainless Steel Concertina Wire Manufacturers High Tensile Strength Concertina Coil
Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Specification of Stainless Steel Concertina Wire Manufacturers High Tensile Strength Concertina Coil
| Reference number | Blade style | Thickness (mm) |
Wire diameter (mm) |
Blade length (mm) |
Blade width (mm) |
Blade spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| CBT-25 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| CBT-60 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle. |
||||||
| Item | Outside diameter (mm) |
Quantity of loops | Standard length per coil (m) |
Type | Notes |
|---|---|---|---|---|---|
| RZ-01 | 450 | 33 | 7-8 | CBT-60, 65 | Single coil |
| RZ-02 | 500 | 56 | 12-13 | CBT-60, 65 | Single coil |
| RZ-03 | 700 | 56 | 13-14 | CBT-60, 65 | Single coil |
| RZ-04 | 930 | 56 | 14-15 | CBT-60, 65 | Single coil |
| RZ-05 | 450 | 56 | 8-9 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-06 | 500 | 56 | 9-10 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-07 | 600 | 56 | 10-11 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-08 | 600 | 56 | 8-10 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-09 | 700 | 56 | 10-12 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-10 | 800 | 56 | 11-13 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-11 | 900 | 56 | 12-14 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-12 | 960 | 56 | 13-15 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-13 | 980 | 56 | 14-16 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
